Etched Top Interlocking Mats

SKU: SMI Categories: Barn, Horse Barn Flooring

Interlocking stall mats hold tightly together with interlocking puzzle edges. Give your horses comfort and make cleaning stalls easier.

See Interlocking Stall Mat Configuration by clicking the Manuals Tab below.

Type

Clear

[yith_wcwl_add_to_wishlist]

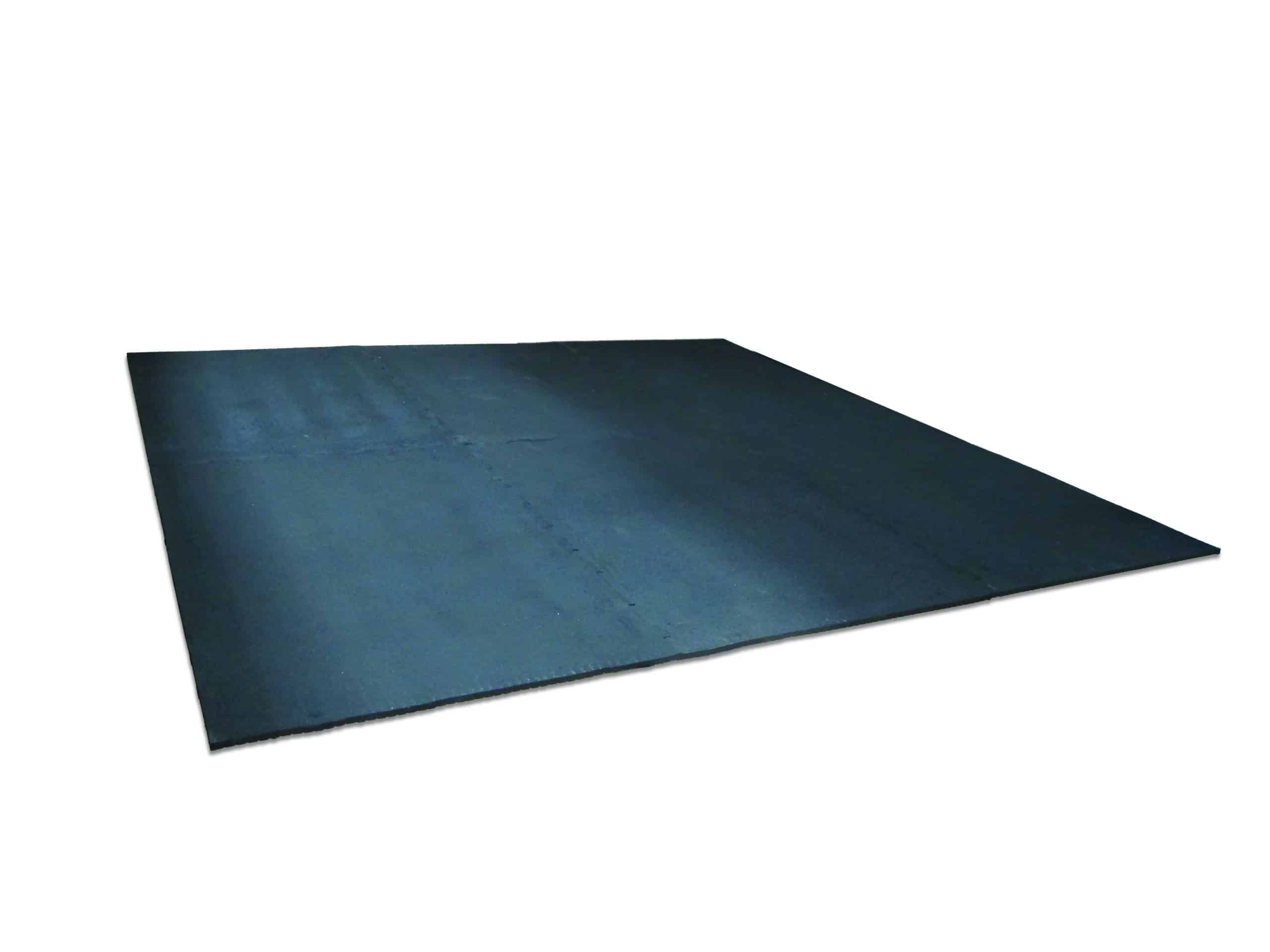

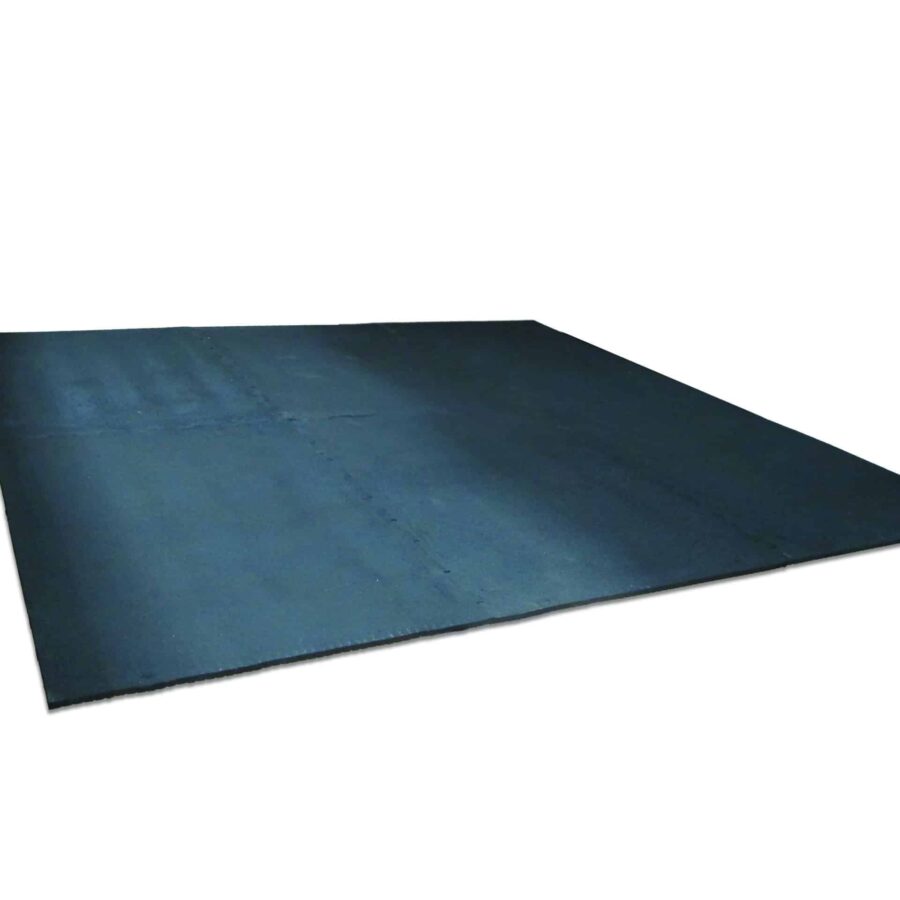

The Etched Top interlocking mats will give you the appearance and performance of a one-piece floor, at a much lower cost and are easier to install. Each piece is precision cut for the exact size, requires no adhesive for installation, and is easy to maintain. Interlocking stall mats prevent common problems that occur with straight-edge mats such as: pulling apart, moving around, or having to remove mats to clean underneath them. Excellent for many different uses such as stalls, wash and grooming areas, farrier areas, treatment areas, barn aisles, and even trailer flooring. There are many different sizes and configurations available for your barn aisles and run-in sheds as well.

Durable 3/4″ thick, 100% Recycled Vulcanized Rubber
Slip-Resistant in wet or dry conditions
Provides cushioned comfort for large animals

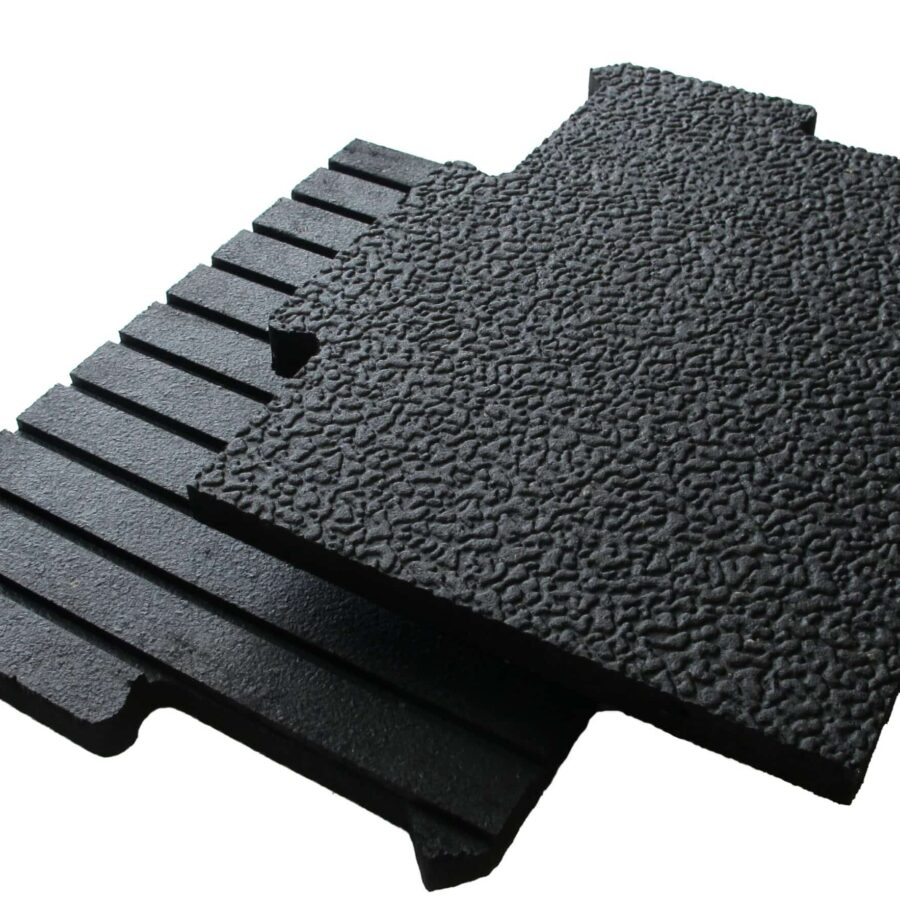

Etched surface and wide grooved underside
Non-Porous: Ideal for urine, bacteria, and odor management
Dense rubber construction reduces noise and absorbs vibrations
Mats can be trimmed, glued, or fastened to any surface

Dimensions are an approximation of: 45 1/2″ x 70 3/4″ x ¾” (mat thickness can vary by ⅛”)
Material: 100% Recycled Re-Vulcanized Solid Rubber
Surface: Non-Skid, Textured Plate
Bottom: Grooved
Warranty: 5-Year Ltd. Mfg. Warranty (*must not be cleaned with any petroleum-based cleaners; it will void the warranty)

Common Configurations / Mats Needed:

10′ x 10′ = (4) SMI10RAM, (1) SMI8AM
12′ x 10′ = (2) SMI10RAM, (2) SMI10LAM (1) SMI16AM
12′ x 12′ = (2) SMI10RAM, (2) SMI10LAM (2) SMI16AM
12′ x 14′ = (2) SMI10RAM, (2) SMI10LAM (3) SMI16AM
12′ x 16′ = (2) SMI10RAM, (2) SMI10LAM (4) SMI16AM
12′ x 20′ = (2) SMI10RAM, (2) SMI10LAM (6) SMI16AM
12′ x 24′ = (2) SMI10RAM, (2) SMI10LAM (8) SMI16AM
14′ x 14 = (2) SMI10RAM, (2) SMI10LAM (4) SMI16AM, (1) SMI20AM, (1), SMI14AM
