Raceline Flex Fence Coated Wire

SKU: RC*1320 Categories: , Tag:

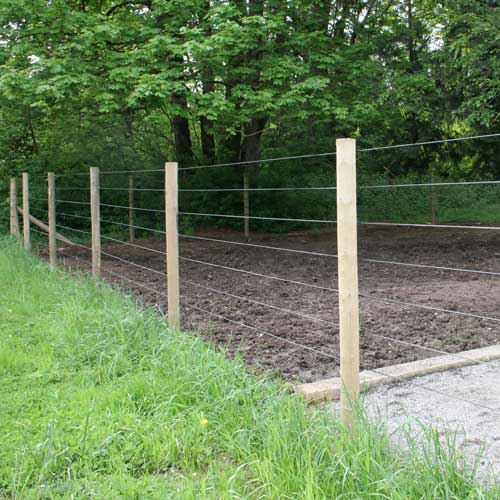

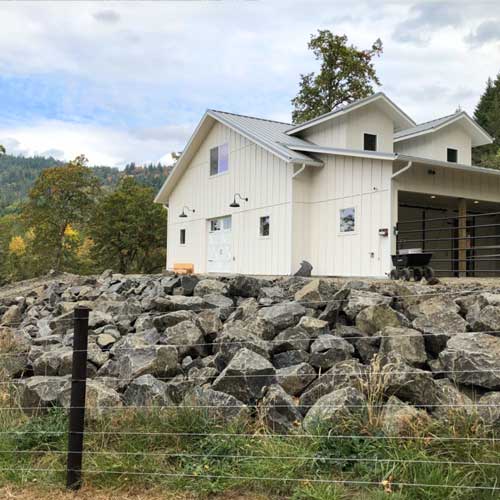

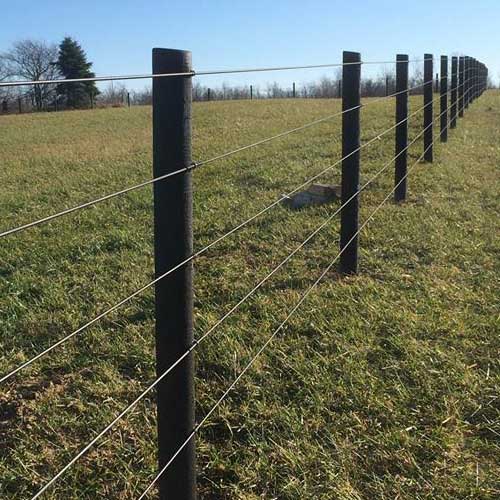

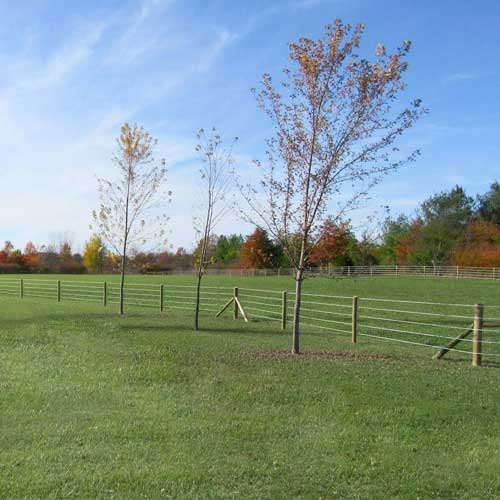

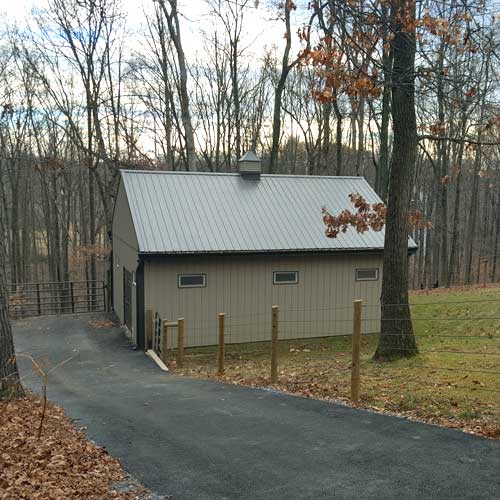

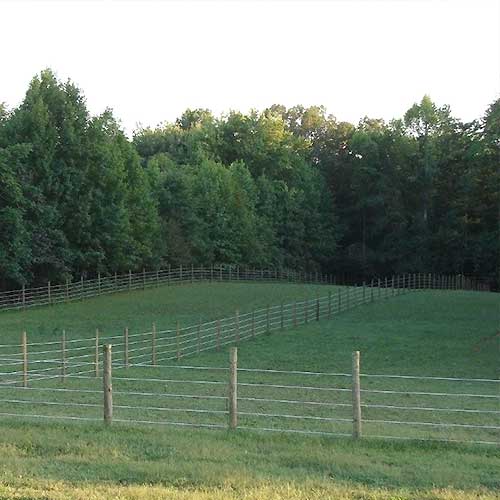

Raceline is a non-electric coated wire horse fence that provides a durable fencing solution for horses. Raceline coated wire comes in a 1,320-foot roll, equal to one quarter mile, making it ideal for large pasture runs.

RAMM manufactures this coated wire horse fence using Class 3, 12.5-gauge high tensile wire for superior strength. A thick 5/16-inch polymer coating increases visibility and improves safety for horses.

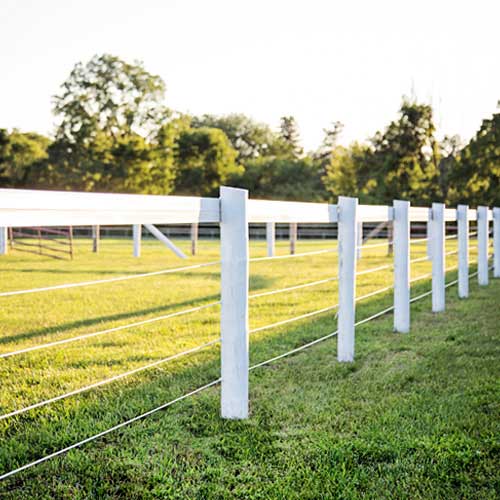

Install this non-electric coated wire horse fence on its own or combine it with Flex Fence rails to create a custom fencing system tailored to your property.

$226.20

[yith_wcwl_add_to_wishlist]

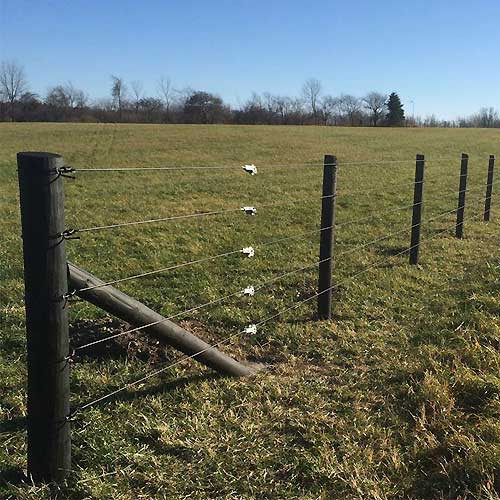

Raceline Flex Fence coated wire is a non-electric fence solution that comes in a 1320′ roll, 1/4 of a mile. The 5/16″ polymer coating is a safer alternative to bare wire fences. Raceline installation is made easier with RAMM’s attachment for the end loop post. The polymer, like all our Flex Fence rails, boasts maximum color. UV inhibitors and mildew protection make them an industry leader.

When comparing Raceline to other high-tensile systems, consider the thicker and more visible 5/16″ coating, larger in diameter than others.

For those seeking safer wire fencing, the Flex Fence coated wire by Raceline stands out as an economical alternative for both permanent multi-rail fencing and use with other rails for an economical combination fence system.

It can be used with braced existing fences to help give them longevity.

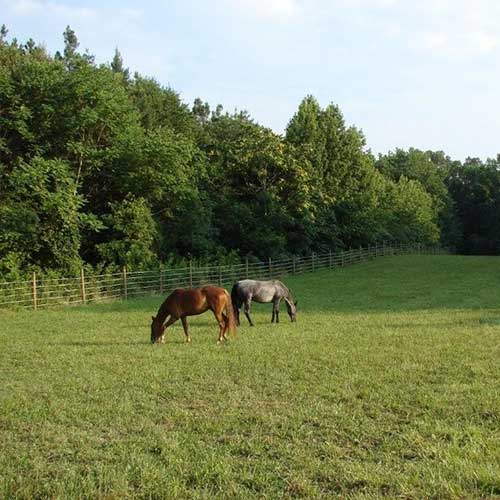

Raceline is ideal where a non-electric fence is needed. Remember that there should be no more than 9-11″ between rails for average-sized horses. Ideal for both minis and taller horses, the 1320′ roll (1/4 of a mile) provides a clean look and flexes 6-8″‘s on impact and returns to its original shape.
RAMM designs Raceline specifically as a horse fence rail, though you can also use it in combination with Shockline to create a customized fencing system. You can choose any combination that best suits your horse’s needs.

Highlights:

  • Rail made for horses. In particular, Raceline Flex Fence coated wire is ideal for equestrian use.
  • Flexes 6-8″ on impact
  • Rails will not crack or peel
  • UV and Mildew protected
  • 30-Year Ltd. Mfg. Warranty

Warranty:

Raceline Flex Fence has a 30 year Ltd. Mfg. Warranty against any cracking, peeling, chipping, discoloration, manufacturer’s defect, or weathering. It does not cover abuse. For best results, always use Raceline Flex Fence coated wire according to the installation manual.

Rail Diameter</b>: 5/16″

Roll Length</b>: 1320′

Color: Black, Brown, or White

Break Strength: Up to 1,400 lbs. per rail

  • 3 Rails = 4,200 lbs of break strength (*we recommend using at least 1-2 more rails of Flex Fence)
  • 4 Rails = 5,600 lbs of break strength (*we recommend using at least 1 more rail of Flex Fence)
  • 5 Rails = 7,000 lbs of break strength (*minimum number of rails by itself)
  • 6 Rails = 8,400 lbs of break strength
  • 7 Rails = 9,800 lbs of break strength

Fence Type: Tensioned Fence System

Fence Material: Class-3 12.5-gauge galvanized high-tensile steel wire, coated with polyolefin plastic

Fence Post Compatibility: CCA Pressure-Treated Pine Posts or *T-Posts (*line posts only)

Highlights:

  • No stress marks if rail bends
  • Rails will never crack or peel
  • Rails never need painted
  • UV protected
  • Made with pride in the USA!

Warranty: Raceline Flex Fence has a 30-Year Ltd. Mfg. Warranty against any cracking, peeling, chipping, discoloration, manufacturer’s defect, or UV weathering. It does not cover abuse or misuse; we recommend using the Mfg. Installation Instructions.

Below are links to our Flex Fence installation instructions in PDF files, which you can save and print for future reference:</p>

Raceline/Shockline/End Loop Installation Manual
