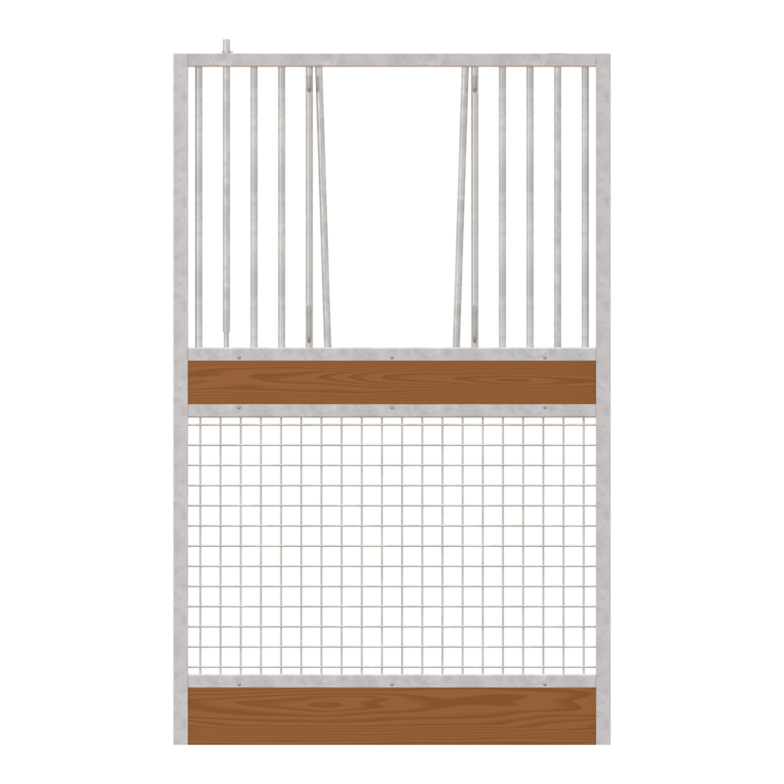

Cambridge Mesh Bottom V-Door Kit
The Cambridge horse stalls feature closer bar spacing, fully welded doors, and grillwork, customization options, and many more improvements.
[yith_wcwl_add_to_wishlist]
The Cambridge horse stall series has many different door styles you can choose from! Each option provides excellent rust protection with a galvanized, 14-gauge body. Our hand-crafted Cambridge stall doors have hidden interior welds; our attention is spent on the fine details, so you only receive the highest-quality product.
Finish: Hot-Dip Galvanized or Powder-Coated Black *RAMM has the industry’s premier hot-dip galvanization for horse stalls.)
Bar Gauge: 16-gauge
Channel Gauge: 14-gauge
Bar Spacing: 3-1/4″
Bar Diameter: 7/8″
Bar Height (Inside-to-Inside): 33″
Door Width: 51-1/2″
Door Opening (Standard): 48″
Door Height (Finished): 81-3/8″
Floor to Top of Header: 90-1/4″
Floor to Bottom of Bars: 47-3/4″
Latch Type: Up Latch
Post/Wall: Post Bumper
Guide: Stay Roller
Track Type: “One Touch” Track System
Wood Direction: Horizontal (*Note: Wood lumber is not included with the kit.)
Kit Includes:
- Fully Welded Cambridge Door
- Latch Bar Kit
- *V-Insert Sold Separately*
Warranty: 1-Year Warranty on Workmanship.
*Note: Must be installed with wood or metal posts. Wood lumber is not included in the kit.
Made in the USA!
Below is a link to the installation instructions for our Cambridge horse stalls in a PDF format, which you can save and print for future reference:
