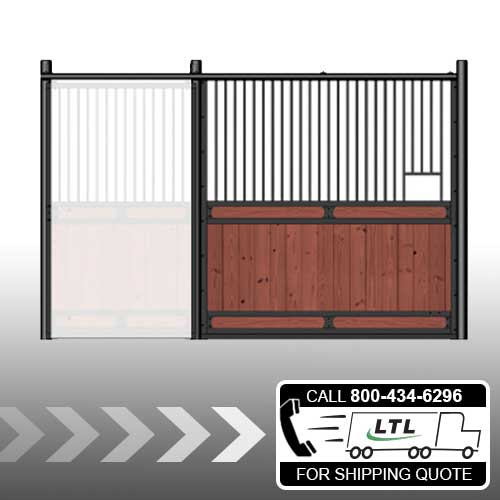

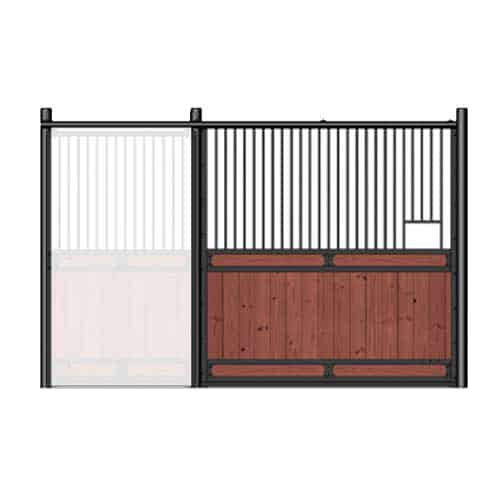

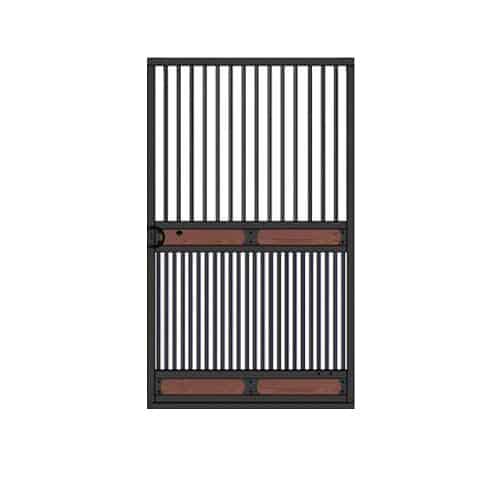

Nobleman Stall Front with Feed Opening
The Nobleman custom horse stall systems are one of our most elegant and prestigious stall options. The European flare on the Nobleman stall fronts makes it one of RAMM’s most elegant stall systems. The added feed opening allows you to feed grain and supplements from your aisle with ease. Our stall design team will work with you to offer suggestions and answer questions about your project. Each designer Nobleman stall front is hand-crafted to your specifications and custom-built for your horse barn. Ask about optional door arch.
[yith_wcwl_add_to_wishlist]
The Nobleman custom horse stall systems are one of our most elegant and prestigious stall options. The European flare on the Nobleman stall fronts makes it one of RAMM’s most popular stall systems. Our stall design team will work with you to offer suggestions and answer questions about your project. Each designer Nobleman stall front is hand-crafted to your specifications and custom-built for your horse barn.
These horse stalls are constructed of heavy-duty steel, which is our standard. Each stall front is custom fabricated with experience. Hidden welds add a professional finish to each piece.
*For more photos and ideas, we welcome you to visit our Nobleman Designer Horse Stalls Pinterest board section.
*Note: Ask about optional Archtops.
Finish: Powder Coated or Hot-Dip Galvanized
Channel Gauge: 12-gauge
Post Gauge: 10-gauge
Bar Gauge: 16-gauge
Mesh Bottom: 1/4″ Mesh Steel with 2″ x 2″ Square Holes
Bar Spacing: 3¼”
Bar Diameter: ⅞”
Bar Height (Inside-to-Inside): 40¼”
Door Width: 52″
Door Opening Width,Standard: 48″*Ask about left or right side door placement. Center door option available upon request.
Door Height (Finished): 86-7/16″
Door Post Height: 96″
Floor to Top of Header: Front – 90⅞”, Post – 96½”
Floor to Bottom of Bars: 46½”
Floor Plates: ¼” Steel (*Floor plates are welded to the door posts.)
Wood Direction: Vertical (*Note: Wood lumber is not included with the kit.)
Production Time: Please allow 4-6 weeks lead time for this stall system.
Warranty: 1-Year Warranty on Workmanship.
Made in the USA!
Below are links to informational literature, installation manuals, and some layout ideas. All links below are in PDF format, which you can save and print for future reference.
