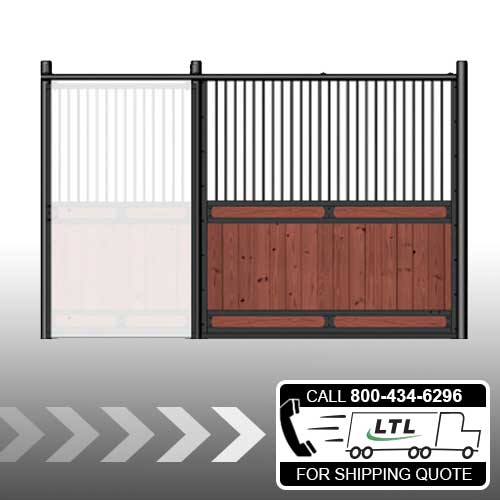

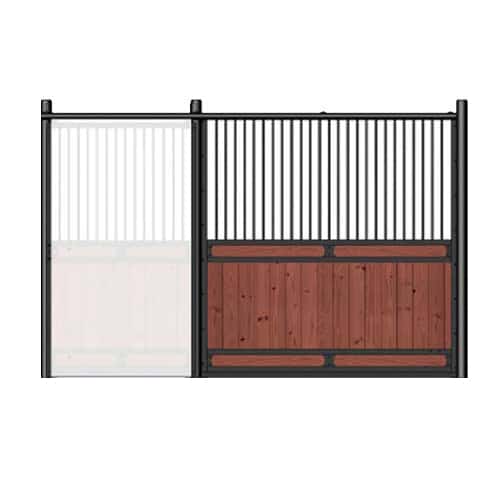

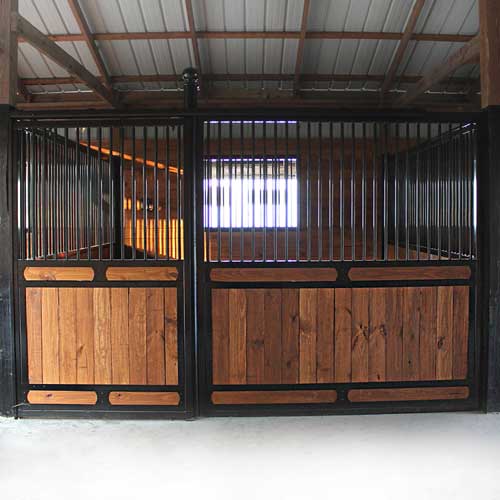

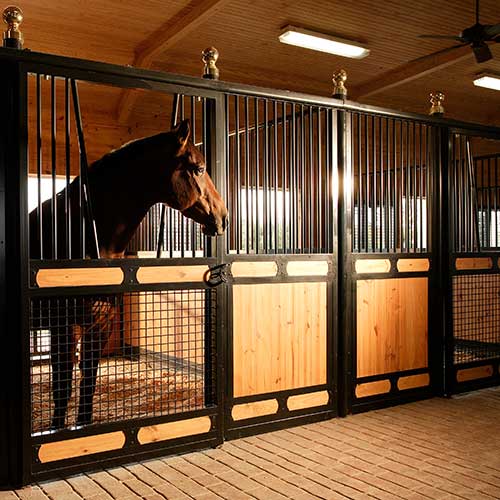

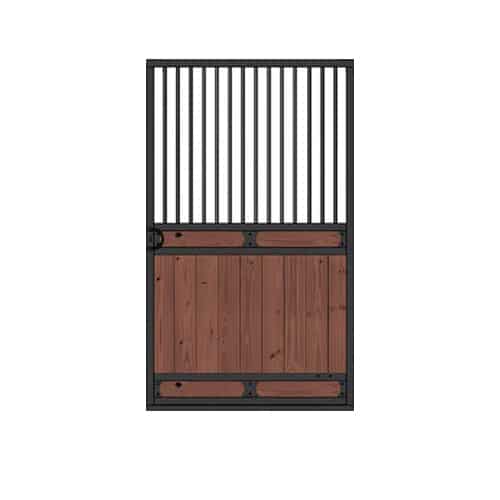

Nobleman Stall Front with Grill Work
The Nobleman custom horse stall systems are one of our most elegant and prestigious stall options. The European flare on the Nobleman stall fronts makes it one of RAMM’s most elegant stall systems. Our stall design team will work with you to offer suggestions and answer questions about your project. Each designer Nobleman stall front is hand-crafted to your specifications and custom-built for your horse barn. Ask about optional door arch.
Compatibility: Oxford Stalls
[yith_wcwl_add_to_wishlist]
These horse stall fronts are constructed of heavy-duty steel in a one piece frame and have welded doors. Fabricated with years of experience, Nobleman custom stalls shout elegance. Our welders employ hidden welds that add a professional and clean finish to each piece with added beauty, safety, and strength. Ask about optional custom paint colors and door placement.
*For more photos and ideas, we welcome you to visit our Nobleman Designer Horse Stalls Pinterest board section.
*Note: Archtops are available as an upgrade.
Length: 10′ or 12′ (Custom sizes available upon request.)
Finish: Powder Coated or Hot-Dip Galvanized
Channel Gauge: 12-gauge
Post Gauge: 10-gauge
Bar Gauge: 16-gauge
Full Grill Door Bottom Bars Gauge: 14-gauge
Bar Spacing: 3 1/4″
Bar Diameter: 7/8″
Bar Height (Inside-to-Inside): 40 1/4″
Door Width: 52″
Door Opening Width (Standard): 48″ *Ask about left or right side door placement. Center door option available upon request.
Door Height (Finished): 86-7/16″
Door Post Height: 96″
Floor to Top of Header: Front – 90-7/8″, Post – 96 1/2″
Floor to Bottom of Bars: 46 1/2″
Floor Plates: 1/4″ Steel (*Floor plates are welded to the door posts.)
Latch Type: Up Latch
<!– Post: *Hidden; No Stop –> <!– Guide: *Hidden; No Stop –>
Track: 8′ Premium Track
Wood Direction: Vertical *Note: Wood is not included to save with freight costs.
Production Time: Please allow 4-6 weeks lead time for this custom stall system.
Warranty: 1-Year Warranty on Workmanship.
Made in the USA!
Below are links to informational literature, installation manuals, and some layout ideas. All links below are in PDF format, which you can save and print for future reference.
