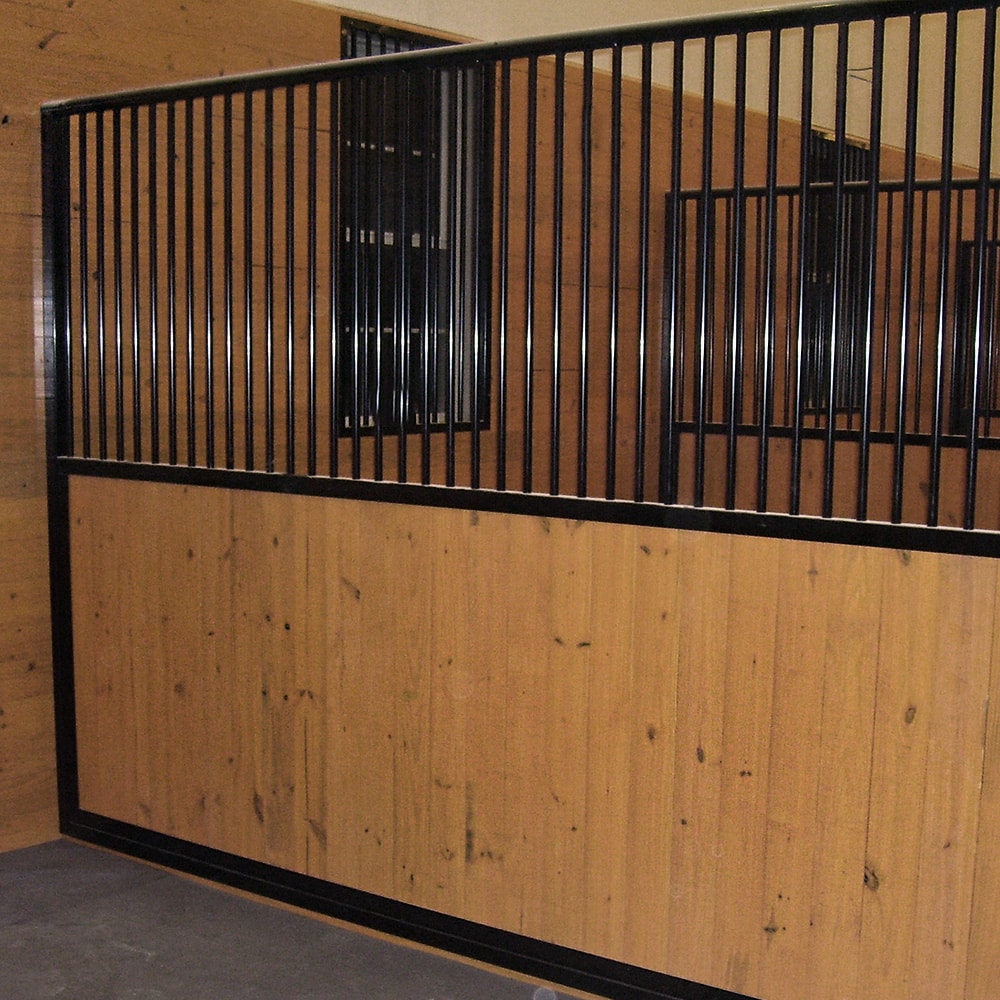

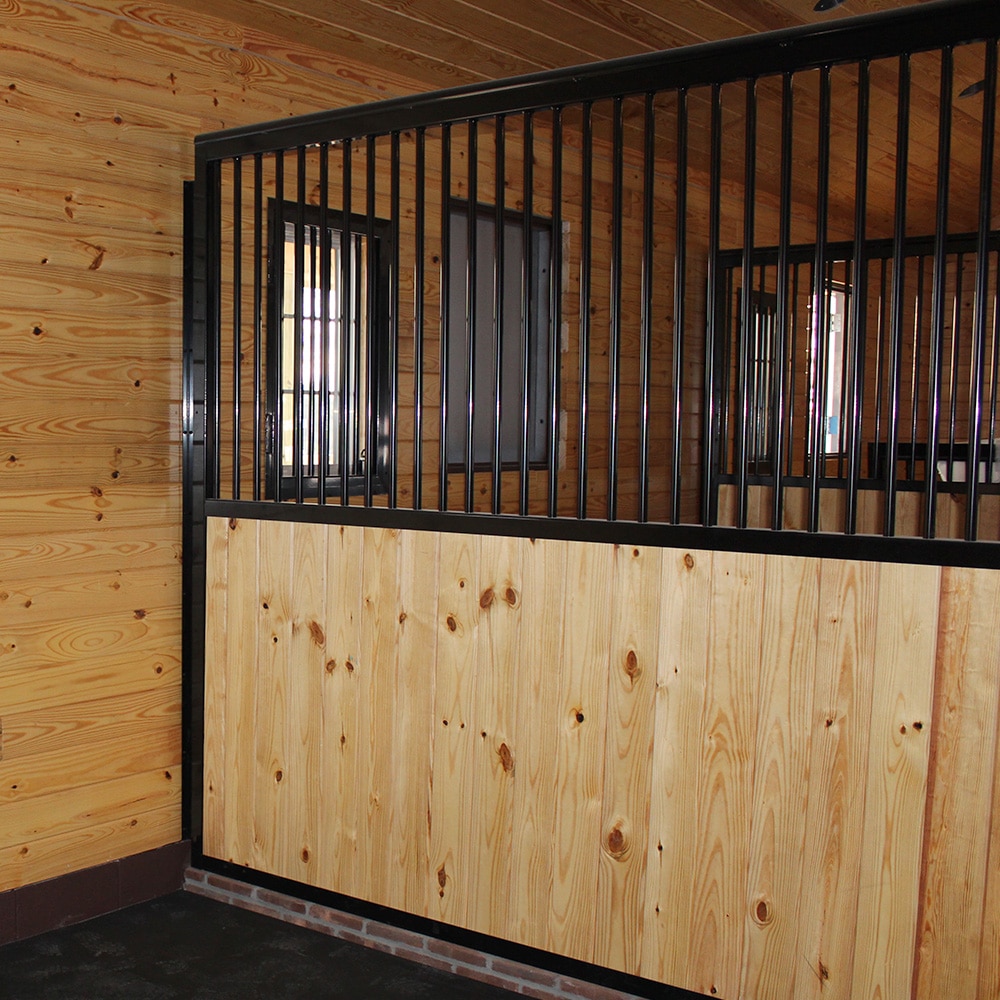

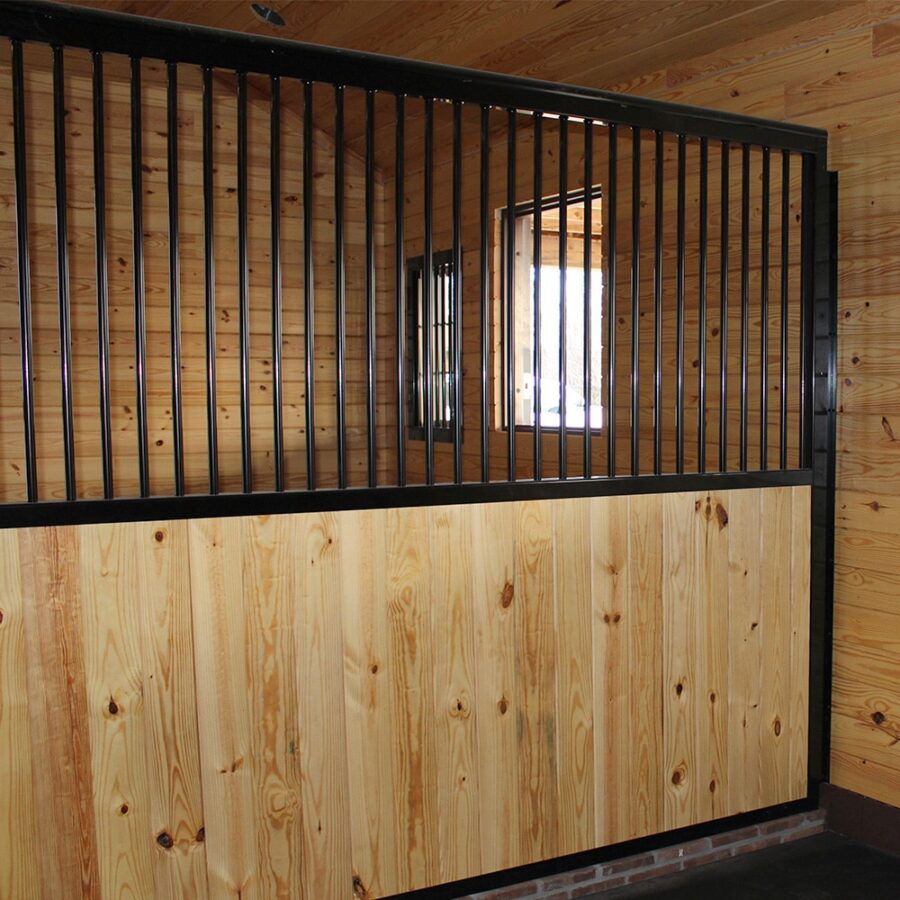

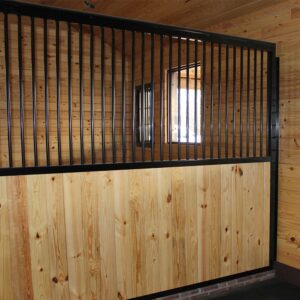

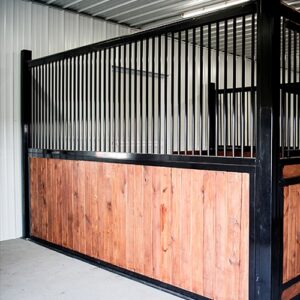

Nobleman Stall Grilled Partition
Provide fresh air to your horses. Provide them with a stylish, elegant place to live. Our nobleman grilled partitions are not as beautiful as your horses, but they come close. The Nobleman grilled partition serves as a stall divider.
[yith_wcwl_add_to_wishlist]
Nobleman stall partitions are made of a heavy-duty solid welded construction and designed to complement any of our stall systems. They are installed through the use of insert channels. Insert channels come pre-welded to steel posts or as separate parts for attachment to posts, walls, and concrete. Solid partitions offer privacy for horses that need solitude and are useful in barns where horses are frequently rotated. Grilled partitions are available providing socialization and better ventilation for your horses. Privacy partitions are a wonderful combination of both the solid and grilled partitions. *For more photos and ideas, we welcome you to visit our Nobleman Designer Horse Stalls Pinterest board section.
Length: 10′ or 12′ (Custom sizes available upon request.)
Finish: Powder Coated or Hot-Dip Galvanized (*RAMM is the industry’s premier hot-dip galvanizer for horse stalls.)
Channel Gauge: 12-gauge
Post Gauge: 10-gauge
Bar Gauge: 16-gauge
Bar Spacing: 3¼”
Bar Diameter: â…ž”
Bar Height (Inside-to-Inside): 40¼”
Floor to Top of Header: Front – 90â…ž”, Post – 96½”
Floor to Bottom of Bars: 46½”
Floor Plates: ¼” Steel (*Floor plates are welded to the door posts.)
Wood Direction: Vertical (*Note: Wood lumber is not included with the kit.)
Shipping: This item ships freight. Please contact one of our expert account managers for a shipping quote.
Production Time: Please allow 4-6 weeks lead time for this stall system.
Warranty: 1-Year Warranty on Workmanship.
Made in the USA!
Below are links to informational literature, installation manuals, and some layout ideas. All links below are in PDF format, which you can save and print for future reference.
