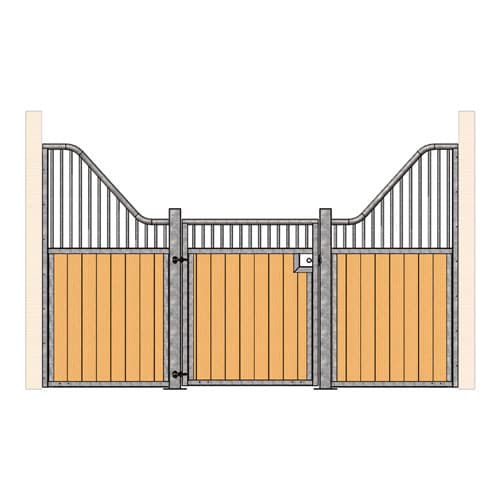

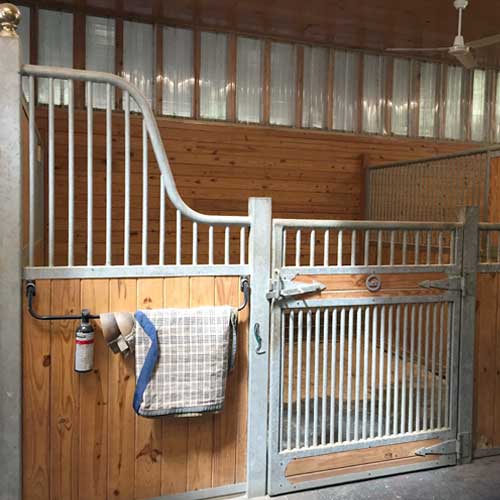

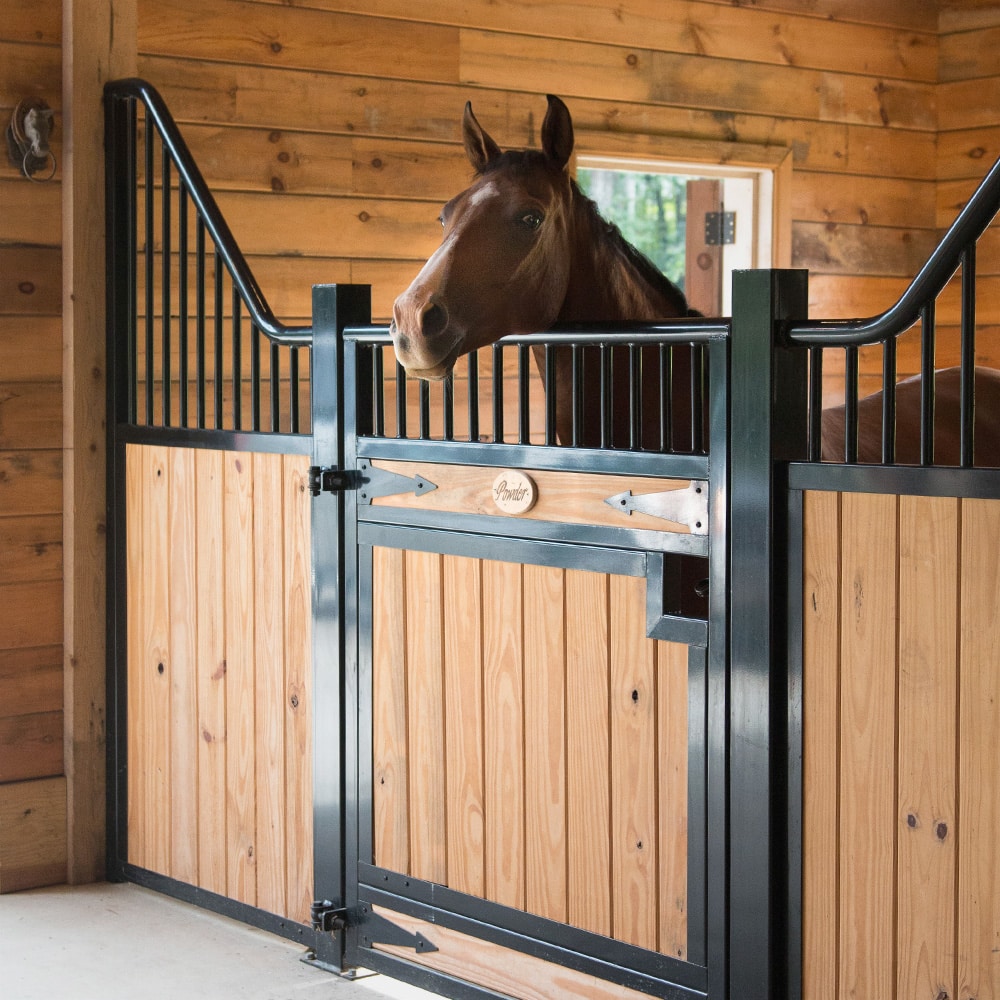

Tuscany Stall Front with Full Grillwork
Tuscany horse stall fronts are European inspired. Open and elegant stalls, the Tuscany’s fabrication does not compromise on durability. Beautiful curved fronts allow you to see your horses while your horses get to socialize and have better ventilation. Choose options for your swing door with a plunger style closure. Feed door and feed opening options available. Galvanized and custom powder coat finishes. Ask about optional finials for door post tops. Custom built stalls for each barn.
[yith_wcwl_add_to_wishlist]
Fully welded front wings and swinging door. Plunger style closure is enclosed to discourage busy horses from curiosity. 2″ x 6″ tongue and grove board slides in channeling for ease of installation. Door and end posts required. Ask one of our knowledgeable account managers about proper installation. Ask about optional finials for door post tops. Custom colors available.
You supply the wood to save on freight costs. Ask about HDPE, (heavy duty plastic lumber), options as well as color choices that add additional strength and beauty to Tuscany stalls.
Length: 10′ or 12′ (Custom sizes available upon request.)
Finish: Powder Coated or Hot-Dip Galvanized (*RAMM is the industry’s premier hot-dip galvanizer for horse stalls.)
Channel Gauge: 12-gauge
Post Gauge: 10-gauge
Bar Gauge: 16-gauge
Full Grill Door Bottom Bars: 14-gauge
Bar Spacing: 3 1/4″”
Bar Diameter: 7/8″
Bar Height (Inside-to-Inside): Tallest – 34″, Shortest – 8″
Door Width: 47″
Door Opening Width (Standard): 48″
Door Height (Finished): 57 1/2″
Door Post Height: 62″
Floor to Top of Header: Front – 84 3/4″, Post – 88 1/2″
Floor to Bottom of Bars: 48 3/4″
Latch Type: Plunger
Wood Direction: Vertical *Note: You supply the wood to save on freight costs. Ask about HDPE (heavy duty plastic lumber ) with color choices
Shipping: This item ships via LTL freight carrier; accurate shipping costs canot be calculated on our ecommerece site. Please contact one of our account managers at 800-434-6296 for shipping details. For more information on LTL shipping requirements follow the links below:
Production Time: Please allow 4-6 weeks lead time for this stall system.
Warranty: 1-Year Warranty on Workmanship.
Made in the USA.
Tuscany Stall installation links are below in PDF format so you can save and print for future reference.
