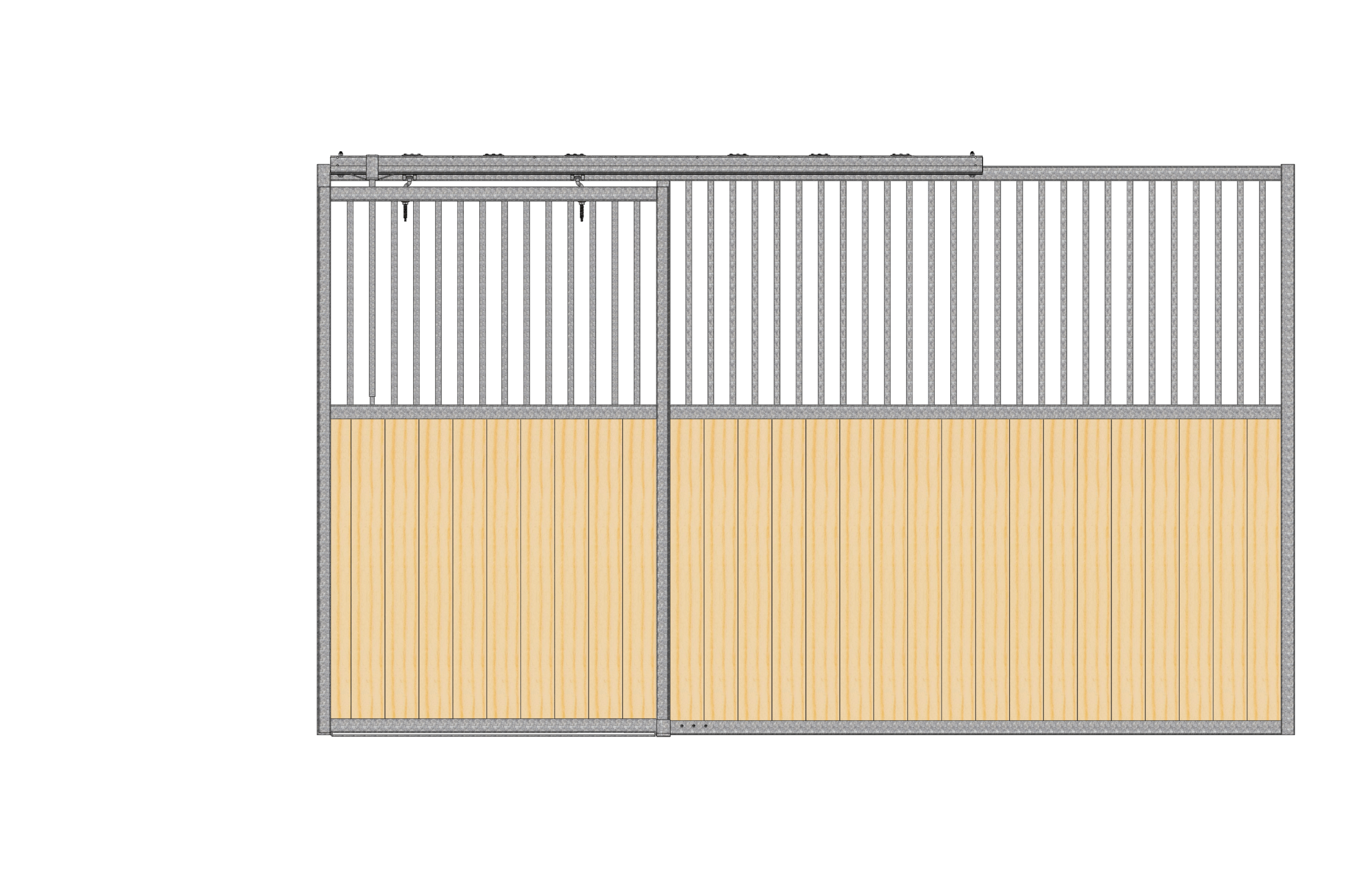

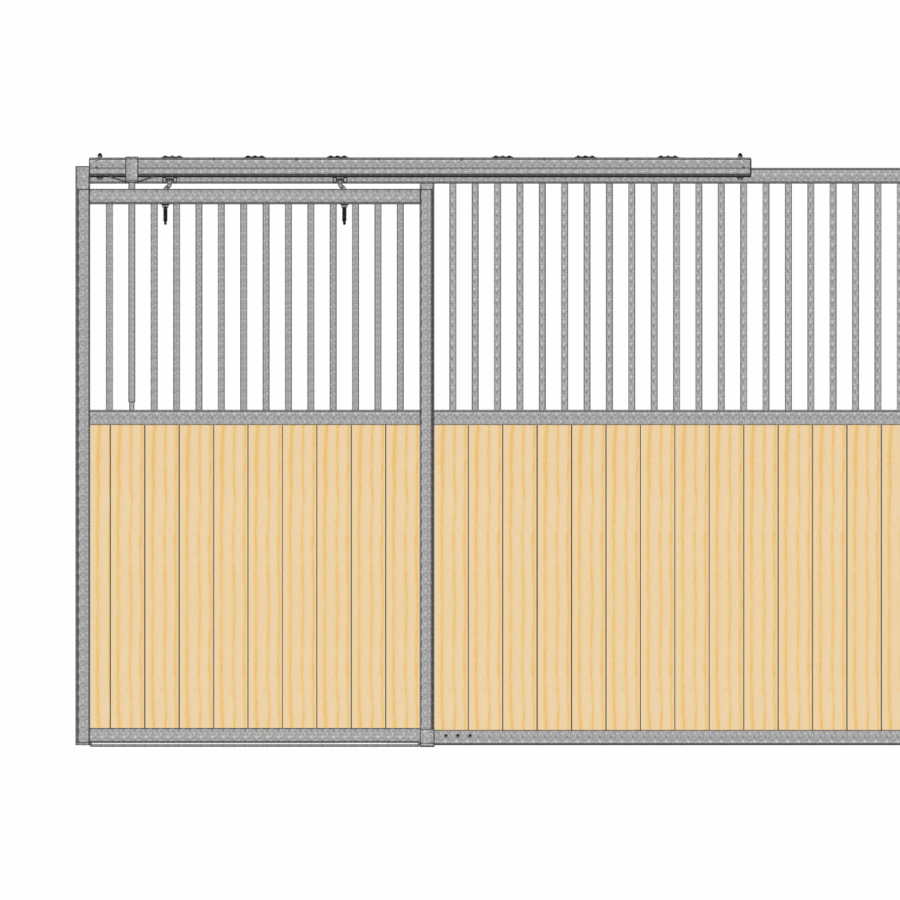

Dublin Stall Front w/ Grill Top Door
Dublin stall fronts are an excellent portable or permanent horse stall solution. They are constructed of hot-dip galvanized steel for rust protection and have hidden interior welds to avoid burrs. Extremely versatile and solid for open span barns. A portable style stall that is definitely a cut above the rest. A great solution for open span barns, arena stalls and outdoor covered – temporary to permeant stalling.
Compatibility: Dublin Partitions
[yith_wcwl_add_to_wishlist]
Dublin stall fronts are an excellent portable or permanent horse stall solution. Fronts, partitions and back walls are a one piece frame with channeling that you slide 2 x 6 tongue and grove wood into. Stall sections are secured with snug fitting connectors rather than lose pins that allow wall movement and spaces between panels. Connectors make installation easier and smoother. Great for open span stalling, strong enough for both large and small horses. This horse stall allows for good ventilation and socialization, has no edges for your horses to chew. Customization options available for feed doors and gates. One touch tear drop track and trolley, rather than round, is self cleaning and self aligning. Dublin horse stalls are constructed of hot-dip galvanized steel (14-gauge frame), feature hidden interior welds, and offer the best type of rust protection available! You provide the wood to save with freight costs.
A Length: 10′ or 12′ (Custom sizes available upon request.)
Finish: Hot-Dip Galvanized
Channel Gauge: 14-gauge
Frame Gauge: 2″ x 2″ 14-gauge
Door Gauge: 1-3/4″ x 1-3/4″ 14-gauge
Bar Gauge: 16-gauge
Bar Spacing: 3-1/4″
Bar Diameter: 7/8″
Bar Height: 33″
Door Width: 51-1/2″
Door Opening Width (Standard): 48″
Door Height: 80-3/8″
Floor to Top of Header: Top of Front = 84″, Top of Front with Track Piece = 85-3/8″
Floor to Bottom of Bars: 48-5/8″
Latch Type: Up Latch
Post: Door Stop (*Varies by layout.)
Guide: Door Stay
Track: 8′ Premium Track
Wood Direction: Vertical (*Note: Supplying the wood will save on freight costs.
Warranty: 1-Year Warranty on Workmanship.
Made in the USA.
Below are links to installation instructions and literature regarding Dublin horse stalls. They are in a PDF format, which you can save and print for future reference:
Dublin Stall Installation Instructions
Portable Panel Stall Installation Instructions – Square Track System
Installation: This is a freestanding horse stall system; no support posts are required for this installation. Connect the stall panels with stall connectors, which are sold separately and can be found here. *Note: Wood lumber is not included; we recommend tongue and groove wood for all of our horse stall systems.
