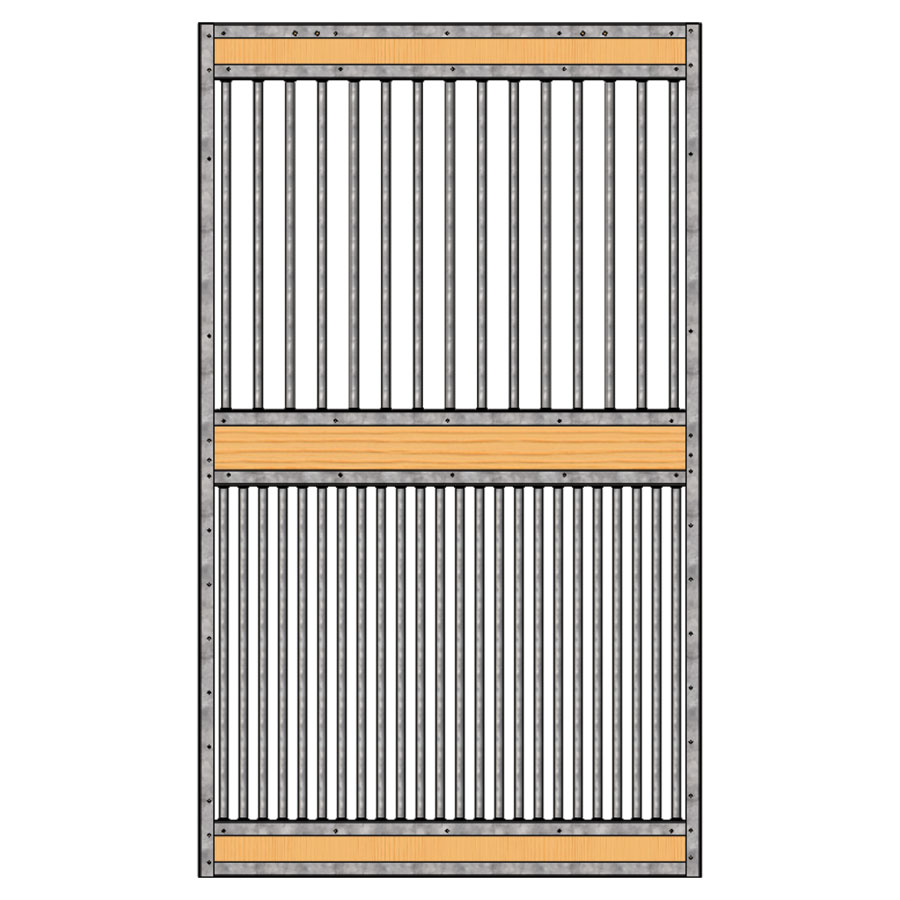

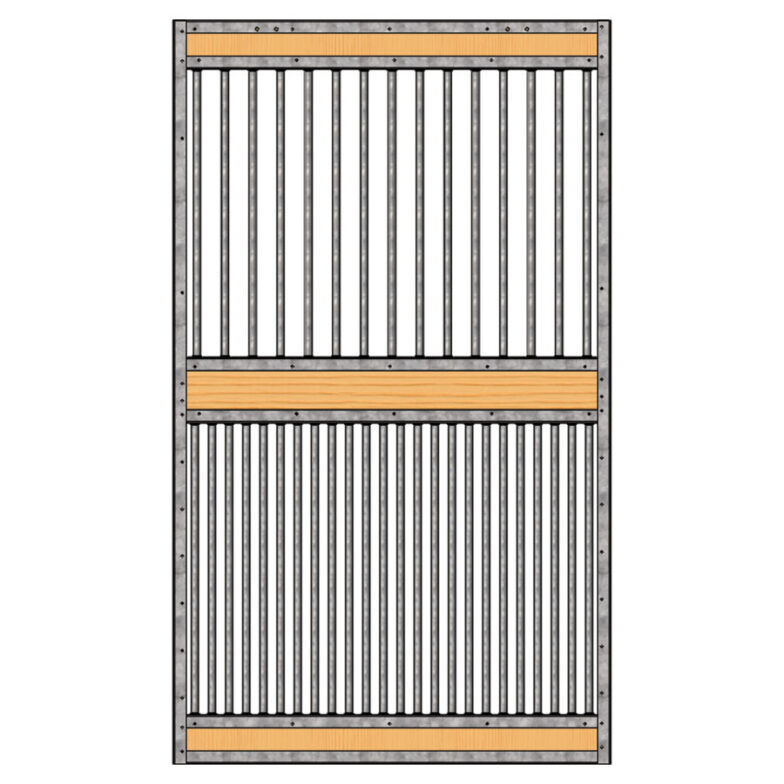

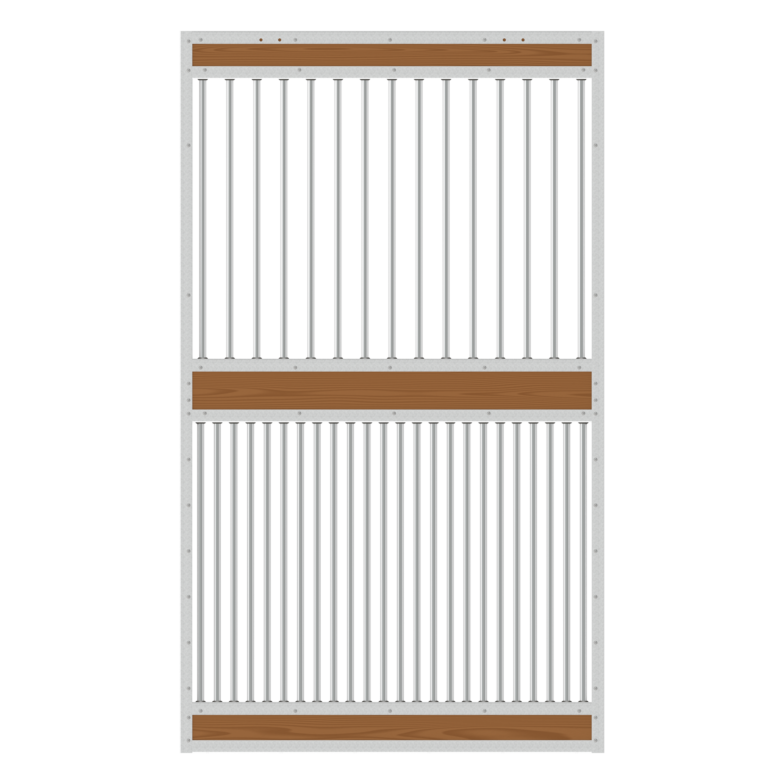

Essex Full Grill Door Kit
The Essex full grill stall door allows light and air to flow through your stalls while containing your horses. Constructed of 14-gauge steel with a galvalume finish, this door will provide superior rust protection.
Compatibility: Essex Stalls
$505.93
In Stock
[yith_wcwl_add_to_wishlist]
The Essex full grill stall door allows light and air to flow through your stalls while containing your horses. Constructed of 14- gauge steel with a galvalume finish, this door will provide superior rust protection.
Please note: Support posts and lumber are not included with this kit. Recommendations are included in our detailed installation instructions.
Finish: Galvalume
Channel Gauge: 14-gauge
Bar Gauge: 16-gauge
Bar Spacing: 3-1/4″
Bottom Bar Spacing: 2″
Bar Diameter: 7/8″
Bar Height (Inside-to-Inside): 33″
Door Width: 51-1/.4″
Door Opening Width (Standard): 48″
Door Height (Finished): 86-3/4″
Floor to Top of Header: 2×10 Header Board = 9-5/8″, 2×12 Header Board = 9-5/8″
Floor to Bottom of Bars: 48¬Ω”
Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit.)
Compatibility: Essex Stalls
Kit Includes:
- 2 – Stall Door Side Channels
- 1 – Stall Door Top Channel
- 1 – Stall Door Bottom Channel
- 1 – Stall Door Top Grill Channel
- 1 – 48″ Grill Channel
- 2 – Full Grill Channels
- 4 – 34″ Door Insert Channels
- 39 – Horse Stall Grill Bars
- 81 – Horse Stall Grommets
- 70 – Stall Screws
Warranty: 1-Year Material Warranty
Below are two links to the installation instructions for our Essex horse stalls in a PDF format, which you can save and print for future reference:
Essex Stall Premium Track Installation Instructions
