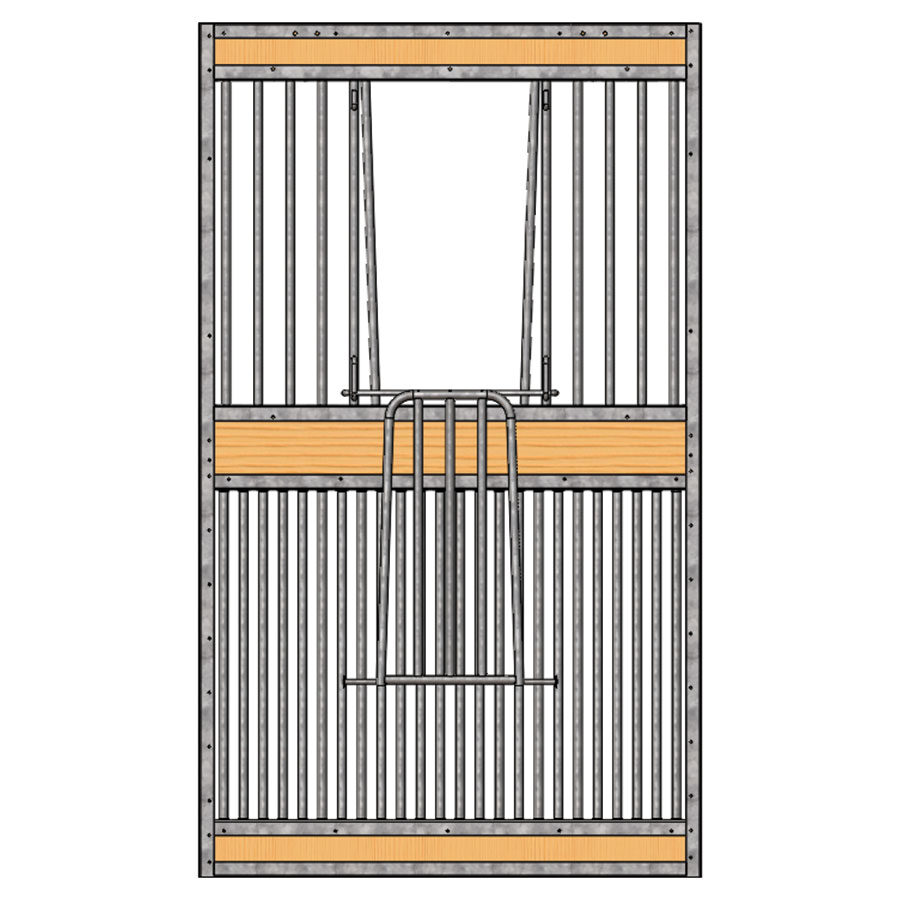

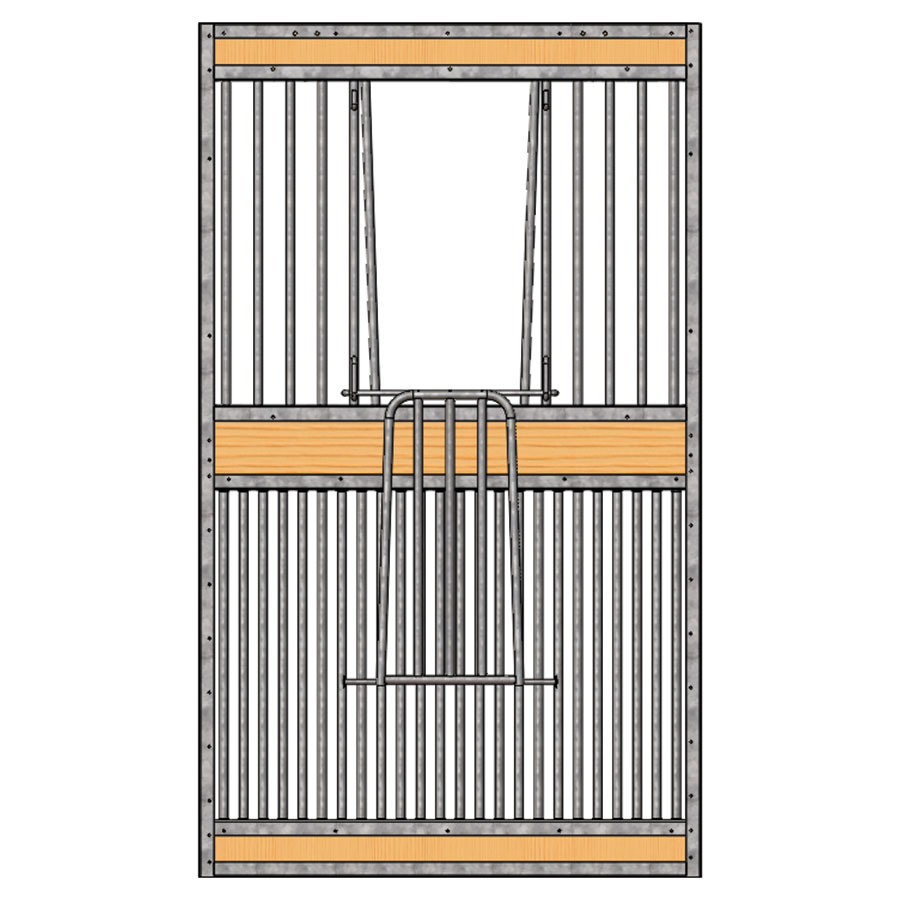

Essex Full Grill V-Door Kit
The Essex Full Grill V-Door Kit combines unrestricted airflow with the classic look and functionality of a V-door. Constructed from corrosion-resistant Galvalume steel, this easy-to-assemble kit promotes ventilation, visibility, and horse socialization while offering the flexibility to convert to a full grill door with an optional V-door insert (sold separately).
- Maximum airflow with a full grill design.
- Classic V-opening promotes horse socialization.
- Galvalume finish helps to resist corrosion.
- Converts to a full grill door with the optional V-door insert.
Proudly Made in the USA. No imported horse stalls—just American craftsmanship you can trust.
Give your horses the healthiest stall environment possible with the Essex Full Grill V-Door Kit. Designed specifically for the RAMM Essex Horse Stall System, this door combines a fully grilled design with a traditional V-opening to maximize airflow, increase natural light, and encourage horse-to-horse interaction. The result is a bright, open stall that promotes both comfort and well-being.
Constructed from heavy-duty North American steel and finished in durable Galvalume, this door kit delivers outstanding corrosion resistance and years of dependable performance. The full grill design allows unrestricted ventilation throughout the stall, helping improve air circulation while maintaining the strength and security expected from a premium horse stall system.
One of the most versatile doors in the Essex collection, the Full Grill V-Door can easily be converted into a fully grilled door by adding the optional V-Door Insert (sold separately). Whether you’re constructing a new barn or renovating an existing facility, this modular design allows your stall doors to adapt as your needs change.
Designed for straightforward installation, the Essex Full Grill V-Door Kit includes the components needed for easy assembly. Simply add the recommended lumber to complete a durable, professional-quality stall door that delivers lasting performance, exceptional ventilation, and timeless style.
- Designed for RAMM Essex Horse Stall Systems
- Full grill design provides maximum airflow and natural light
- Classic V-opening encourages horse socialization and visibility

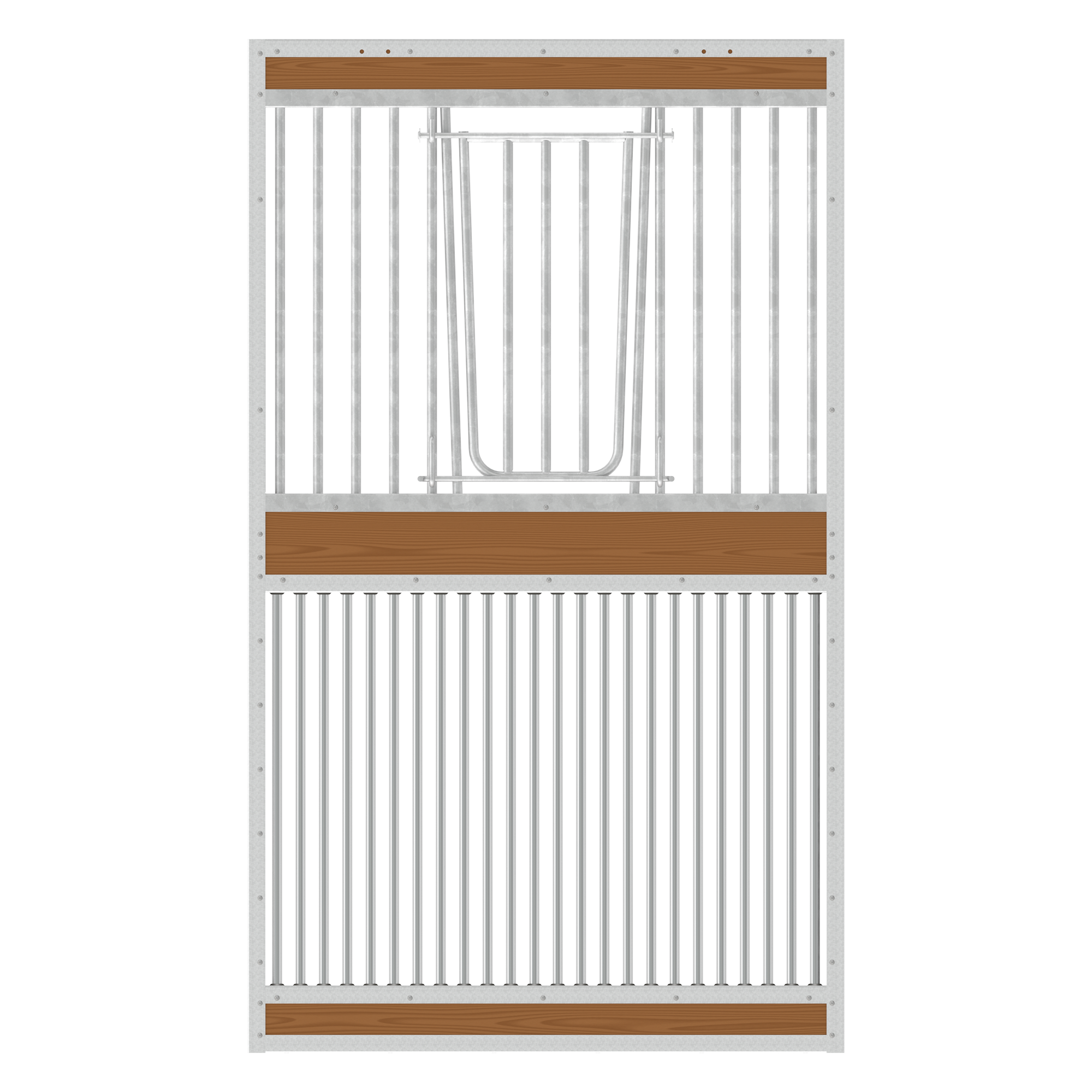

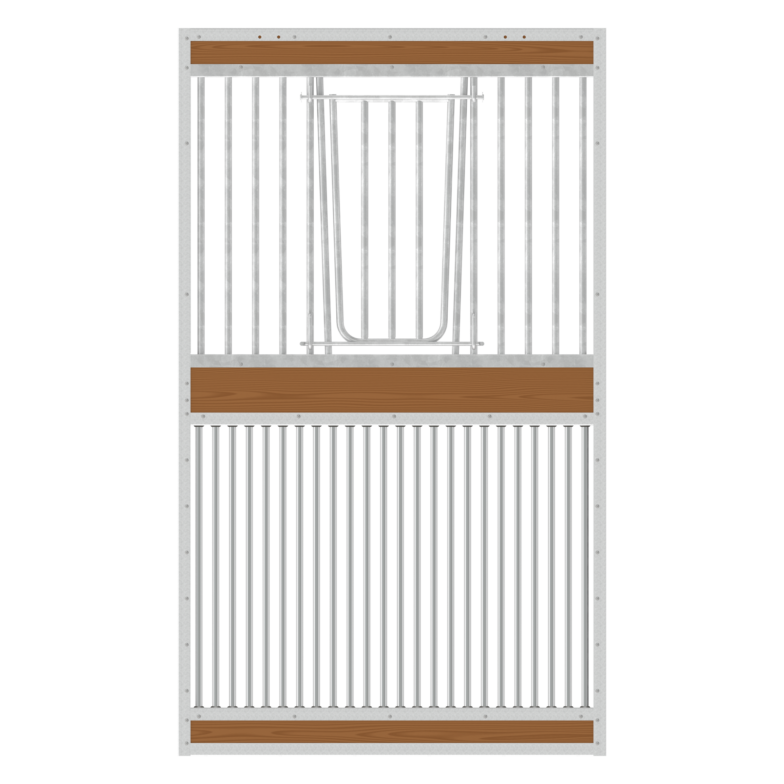

- Easily converts to a fully grilled door with the optional V-Door Insert (sold separately)
- Durable Galvalume finish provides outstanding corrosion resistance
- Heavy-duty 14-gauge steel channels
- Strong 16-gauge steel grill bars
- Safer 3-1/4″ on-center grill bar spacing
- 2″ bottom bar spacing for added safety
- 7/8″ diameter steel grill bars
- Easy-to-assemble modular kit
- Ideal for new horse barns and renovation projects
- Manufactured from premium North American steel
- Backed by a 1-Year Material Warranty
- Compatible With: Essex Horse Stall Systems
- Finish: Galvalume
- Channel Gauge: 14-gauge
- Bar Gauge: 16-gauge
- Bar Spacing: 3-1/4″
- Bottom Bar Spacing: 2″
- Bar Diameter: 7/8″
- Bar Height (Inside-to-Inside): 33″
- Door Width: 51-1/4″
- Standard Door Opening: 48″
- Finished Door Height: 86-3/4″
- Wood Direction: Horizontal
- Warranty: 1-Year Workmanship Warranty
Support posts and lumber are not included. Recommended lumber sizes and complete installation instructions are provided with the kit.
Kit Includes:
- (2) Stall Door Side Channels
- (1) Stall Door Top Channel
- (1) Stall Door Bottom Channel
- (2) Full Grill Channels
- (2) 34″ Door Insert Channels
- (1) 48″ V-Door Grill Section
- (2) 33″ Door Insert Channels for V-Doors
- (24) 34″ × 7/8″ Horse Stall Grill Bars
- (51) Grommets
- (60) #12 × 1-1/4″ Phillips Pan Head Stall Screws
Please Note: The optional V-Door Insert is sold separately. Support posts and wood lumber are not included.
Below are two links to the installation instructions for our Essex horse stalls in a PDF format, which you can save and print for future reference:
$462.80
In Stock
