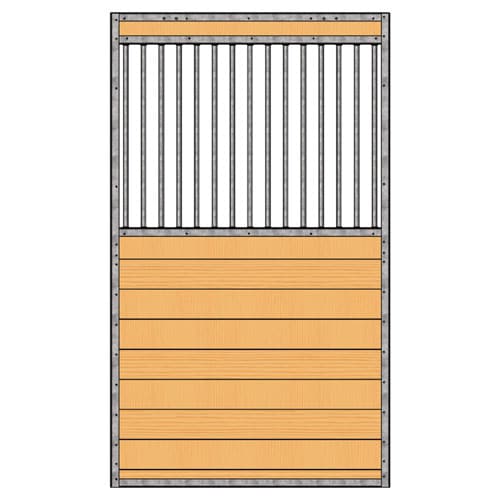

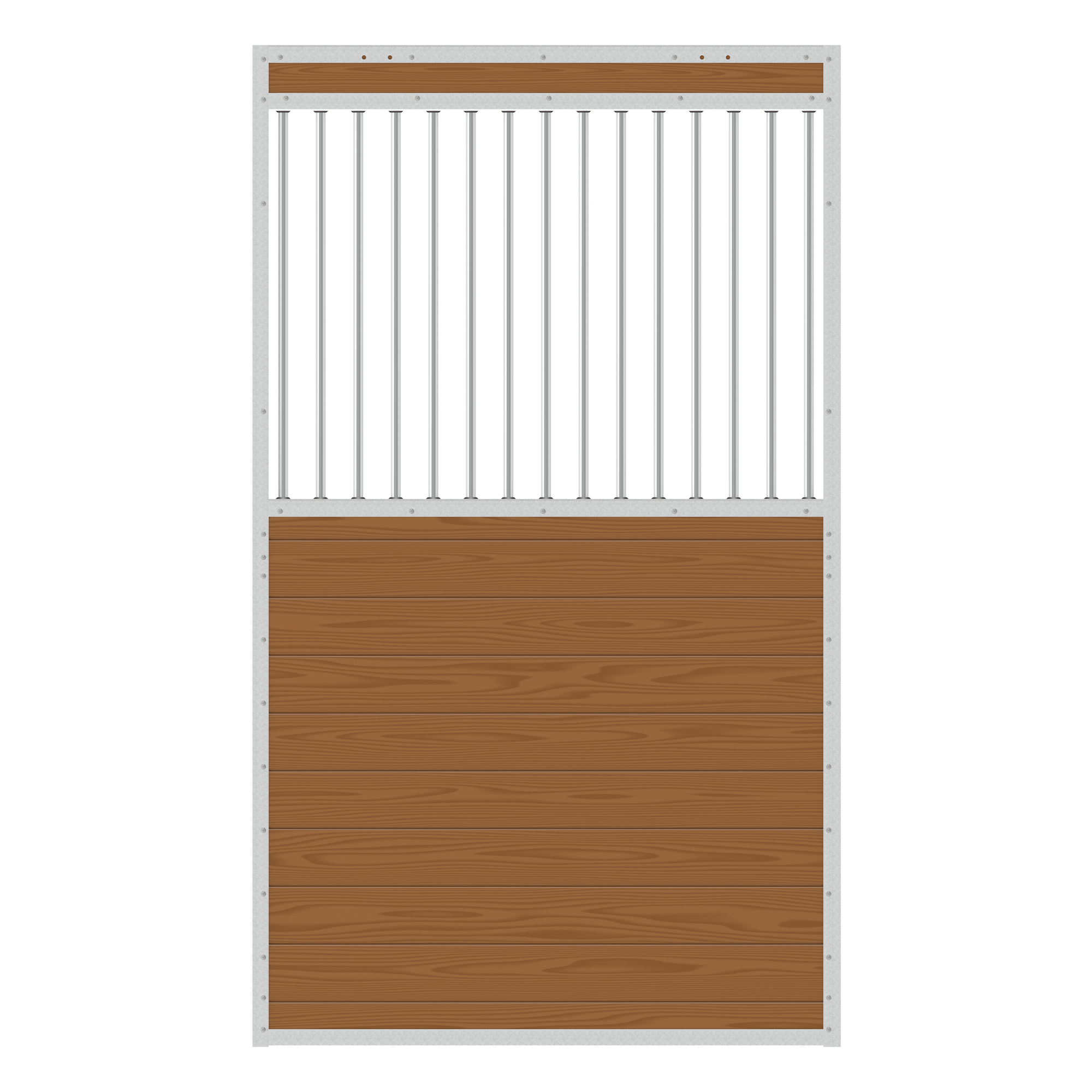

Essex Grill Top Door Kit
Maximize the light and fresh air in your barn with the Essex grill top horse stall door. Engineered for both safety and durability, this premium stall door features a heavy-duty steel construction and a rust-resistant galvalume finish.
Compatibility: Essex Stalls
Proudly Made in the USA. No imported horse stalls—just American craftsmanship you can trust.
Creating a comfortable, well-ventilated environment is essential for your equine companions. The Essex grill top horse stall door is designed to allow optimal natural light and airflow into your horse stalls while keeping your animals secure. Whether you are building a new barn or upgrading your current facilities, this grill top door delivers premium performance and a polished look.
Key Product Features:
-
Material: Heavy-duty 14-gauge steel
-
Finish: Corrosion-resistant galvalume
-
Bar Spacing: 3.25″ on-center for optimal safety
-
Noise Reduction: Integrated rubber grommets
-
Function: Improves stall lighting and ventilation
Finish: Galvalume
Channel Gauge: 14-gauge
Bar Gauge: 16-gauge
Bar Spacing: 3-1/4″
Bar Diameter: 7/8″
Bar Height (Inside-to-Inside): 33″
Door Width: 51-1/4″
Door Opening Width (Standard): 48″
Door Height (Finished): 86-3/4″
Floor to Top of Header: 2×10 Header Board = 91-5/8″, 2×12 Header Board = 93-5/8″
Floor to Bottom of Bars: 48-1/2″
Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit.)
Compatibility: Essex Stalls
Kit Includes:
- 2 – Stall Door Side Channels
- 1 – Stall Door Top Channel
- 1 – Stall Door Bottom Channel
- 1 – Stall Door Top Grill Channel
- 1 – 48″ Grill Channel
- 2 – 34″ Door Insert Channels
- 15 – Horse Stall Grill Bars
- 33 – Horse Stall Grommets
- 59 – Stall Screws
Warranty: 1-Year Material Warranty
Made in the USA.
Below are two links to the installation instructions for our Essex horse stalls in a PDF format, which you can save and print for future reference:
$259.75
In Stock
