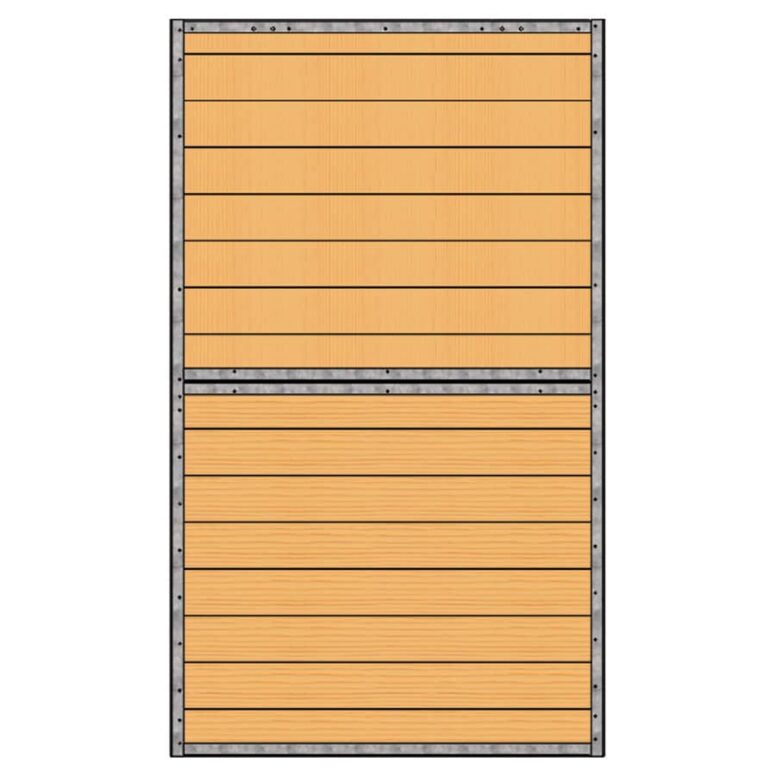

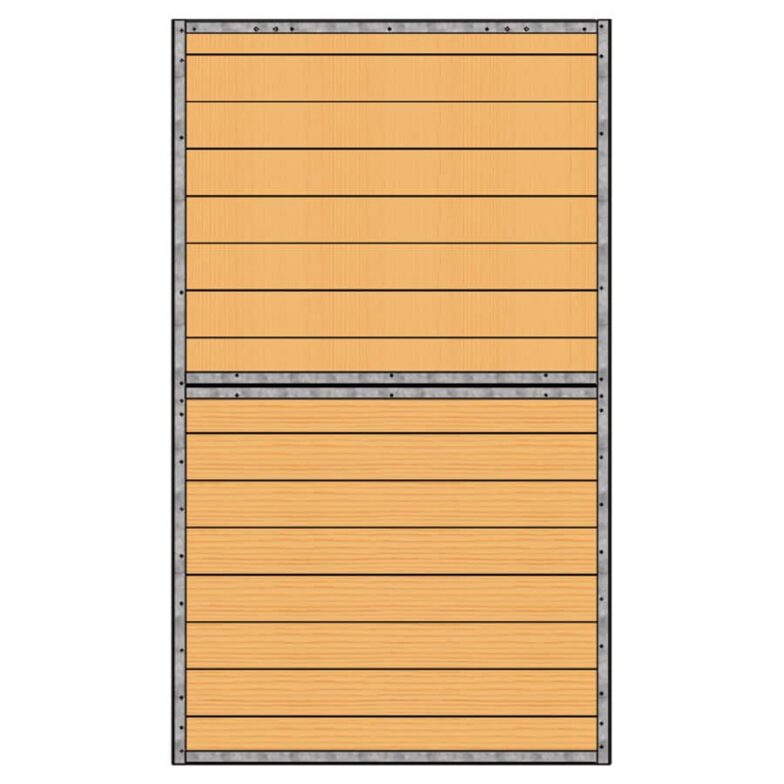

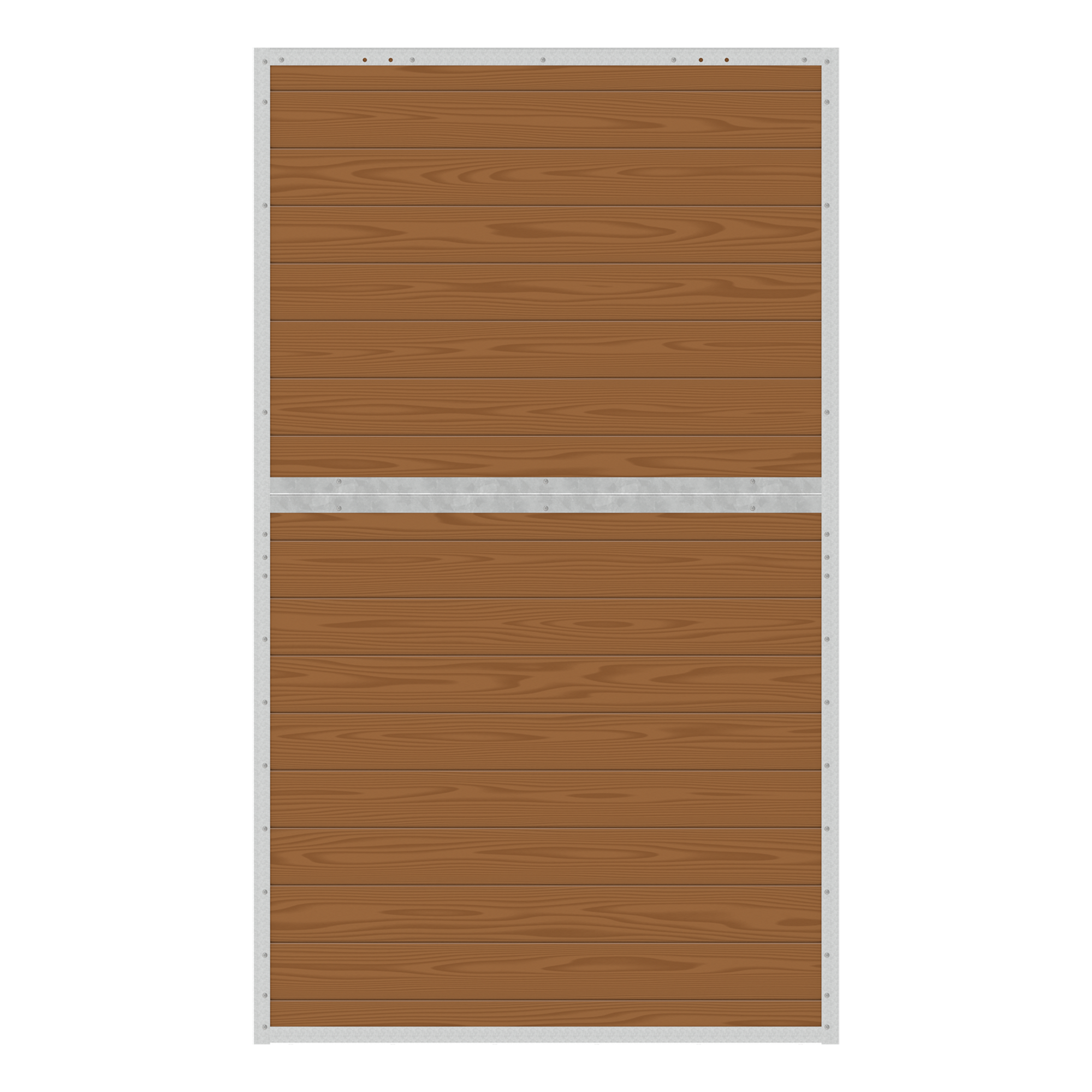

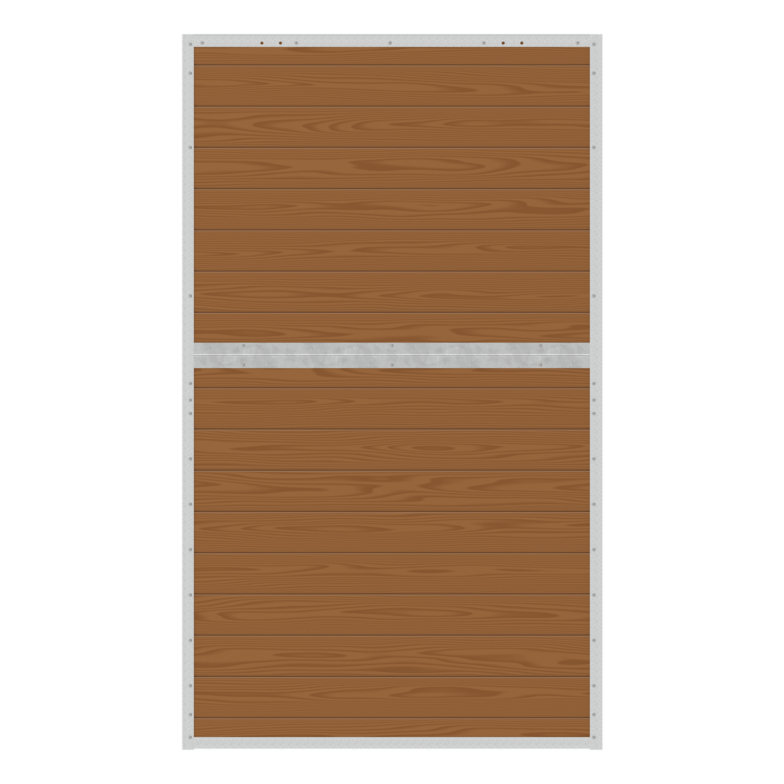

Essex Solid Door Kit
The Essex solid door kits are ideal in barns and boarding facilities where horses need more privacy. They are also ideal for feed and supply rooms.
Compatibility: Essex Stalls
Your Price: $296.89
In Stock
[yith_wcwl_add_to_wishlist]
The Essex solid door kits are ideal in barns and boarding facilities where horses need more privacy. They are also ideal for feed and supply rooms. Constructed of 14- gauge steel with a galvalume finish, this door will provide superior rust protection.
Please note: Support posts and lumber are not included with this kit. Recommendations are included in our detailed installation instructions.Â
Finish: Galvalume
Channel Gauge: 14-gauge
Door Width: 51-1/4″
Door Opening Width (Standard): 48″
Door Height (Finished): 86-3/4″
Floor to Top of Header: 2×10 Header Board = 91-5/8″, 2×12 Header Board = 93-5/8″
Latch Type: Top Latch
Post/Wall: Wall Bumper
Guide: Stay Roller
Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit.)
Compatibility: Essex Stalls
Kit Includes:
- 2 – Stall Door Side Channels
- 1 – Stall Door Top Channel
- 1 – Stall Door Bottom Channel
- 1 – 48″ Double U-Channel
- 44 – Stall Screws
Warranty: 1-Year Material Warranty
Below are two links to the installation instructions for our Essex horse stalls in a PDF format, which you can save and print for future reference:
Essex Stall Premium Track Installation Instructions
