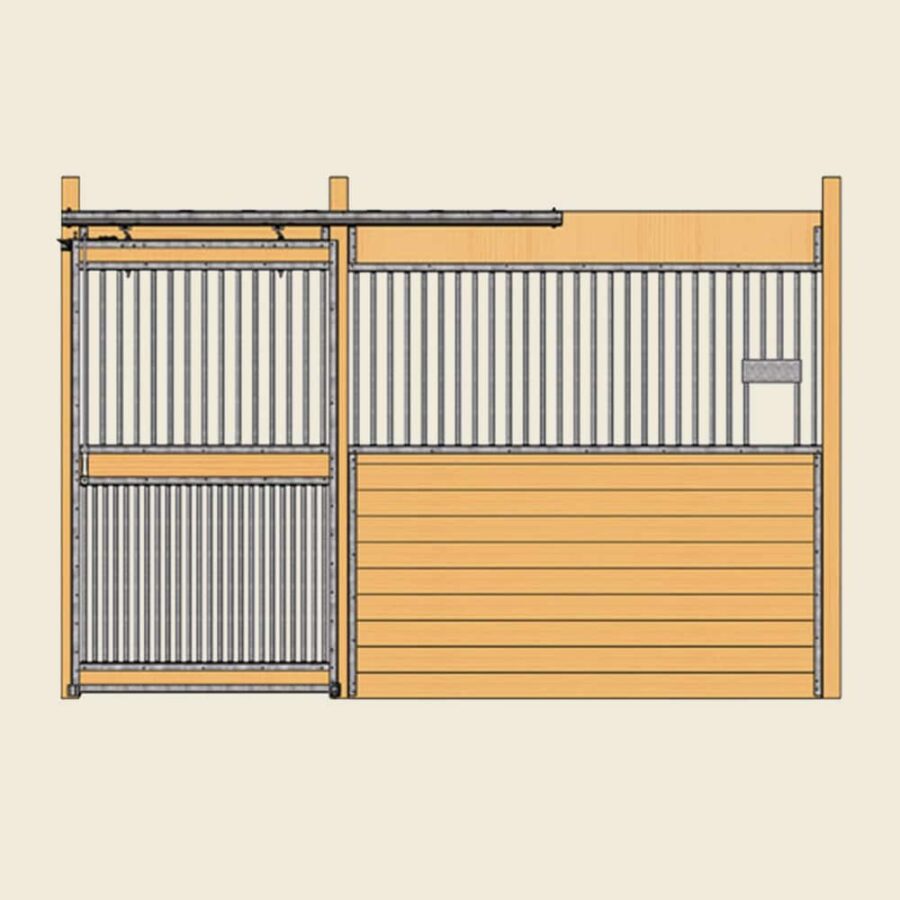

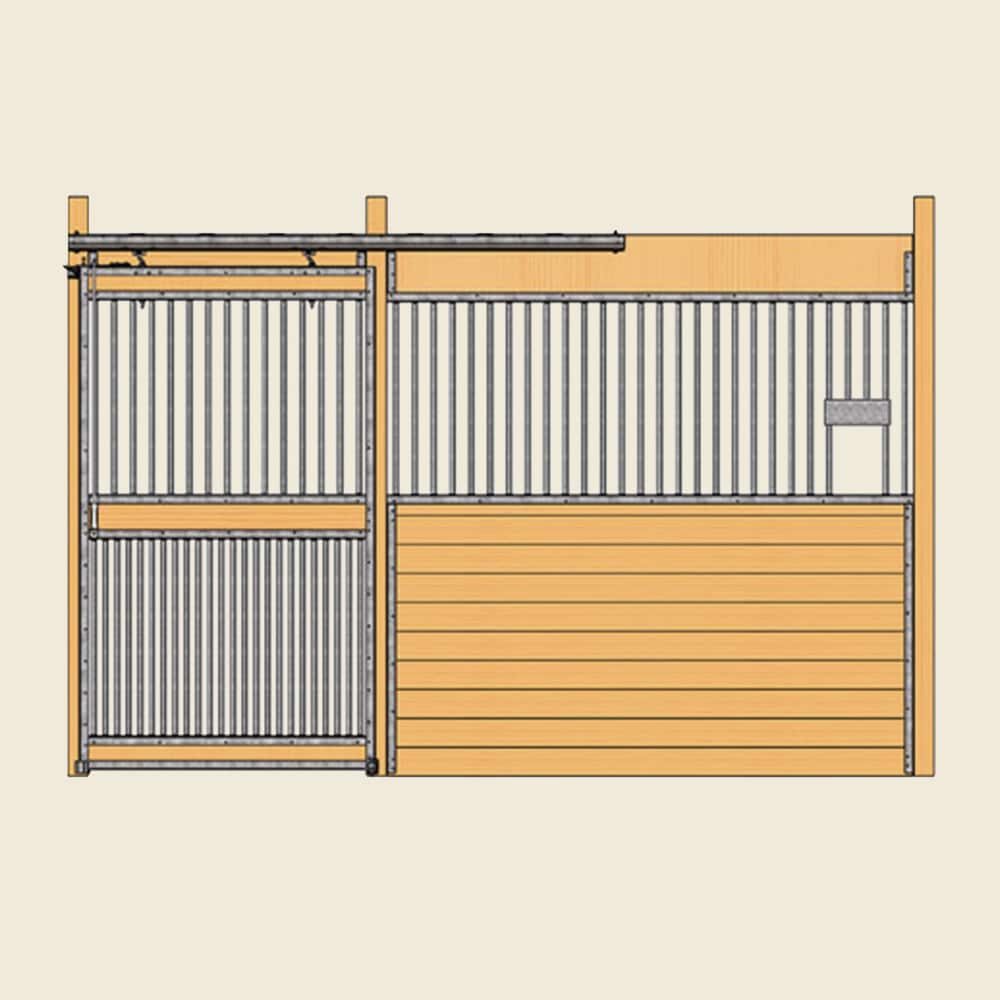

Essex Stall Front with Full Grill Door & Feed Opening Kit

SKU: SS Category:

Essex Stall Front Kits are easily accessorized. All grillwork is spaced 3.25″ and has a galvalume finish to resist rust. Grill bars are seated in a heavy duty rubber grommet that eliminates rattling.  Sliding door track and trollies are a one touch system making opening and closing your door smoother. They can be used for new builds or can be retrofitted in an existing barn. Customizing can be done on site – making Essex fronts versatile and an economical choice.

Your Price: Price range: $1,118.88 through $1,170.36

[yith_wcwl_add_to_wishlist]

Essex Stall Front with full grill door offers optimum ventilation for your barn. The feed opening in the grillwork section allows you to easily feed grain and supplements. Essex stalls must be installed with wood or metal support posts. All hardware is included; you supply the wood to save freight costs.

Choose from a wide array of products, such as partition walls, stall doors, grill sections, window grills, and many other accessories!

  • Length: 10′ or 12′
  • Finish: Galvalume  (*all material is made with high-quality North American steel)
  • Channel Gauge: 14-gauge
  • Bar Gauge: 16-gauge
  • Bar Diameter: 7/8″
  • Bar Height (Inside-to-Inside): 33″
  • Bar Spacing (On-Center): 3 1/4″
  • Door Bottom Bar Spacing (On-Center): 2″
  • Floor to Top of Header: 2×10 Header Board = 91 5/8″, 2×12 Header Board = 93 5/8″
  • Floor to Bottom of Bars: 48 1/2″
  • Door Height (Finished): 86 3/4″
  • Door Width: 51 1/4″
  • Door Opening Width (Standard): 48″
  • Door Track: 8′ Premium Track
  • Door Latch: Door Top Latch System
  • Door Latch Lifting Rod Length: 43 1/4″
  • Door Guide: Stay Roller
  • Door Stopper: Post Bumper
  • Wood Direction: Horizontal
  • Warranty: 1-Year Material Warranty

*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 2″x 6″ tongue and groove boards as wood supplier measurements can vary.

Installation: Click here to access the Essex horse stall installation.
