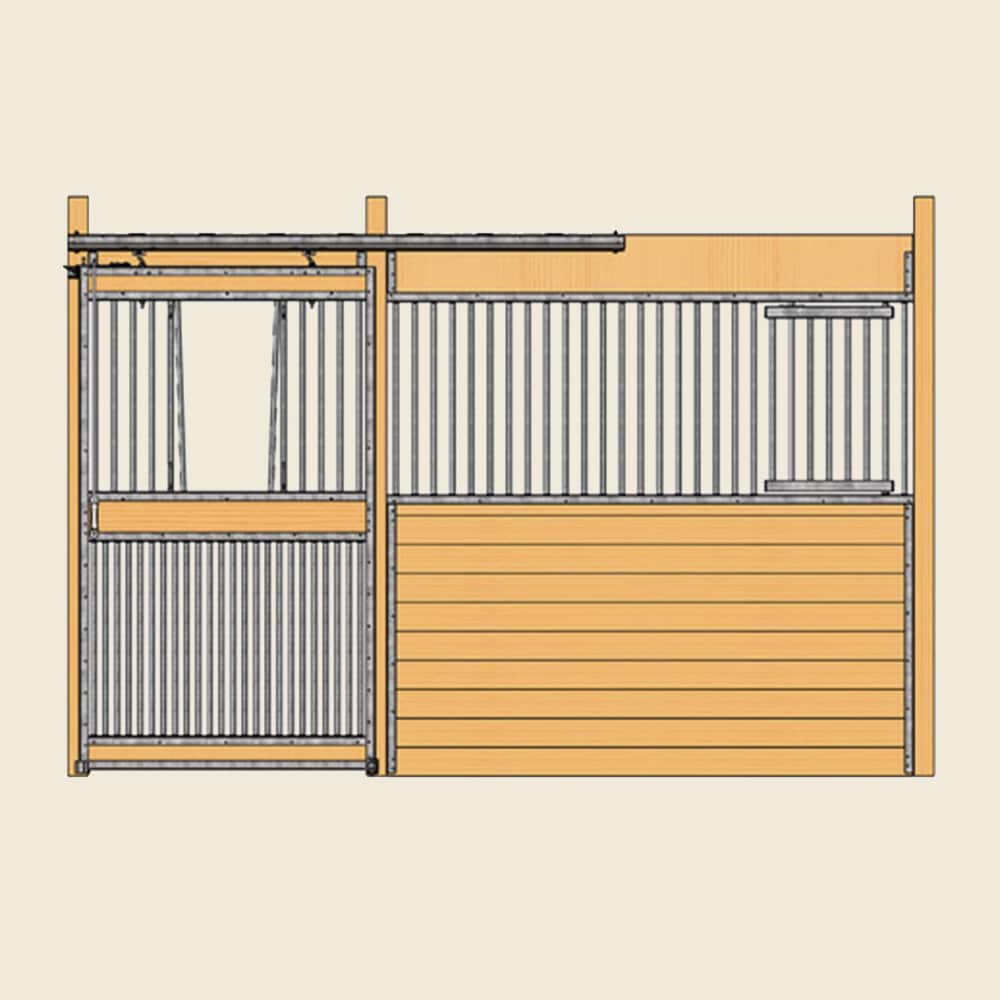

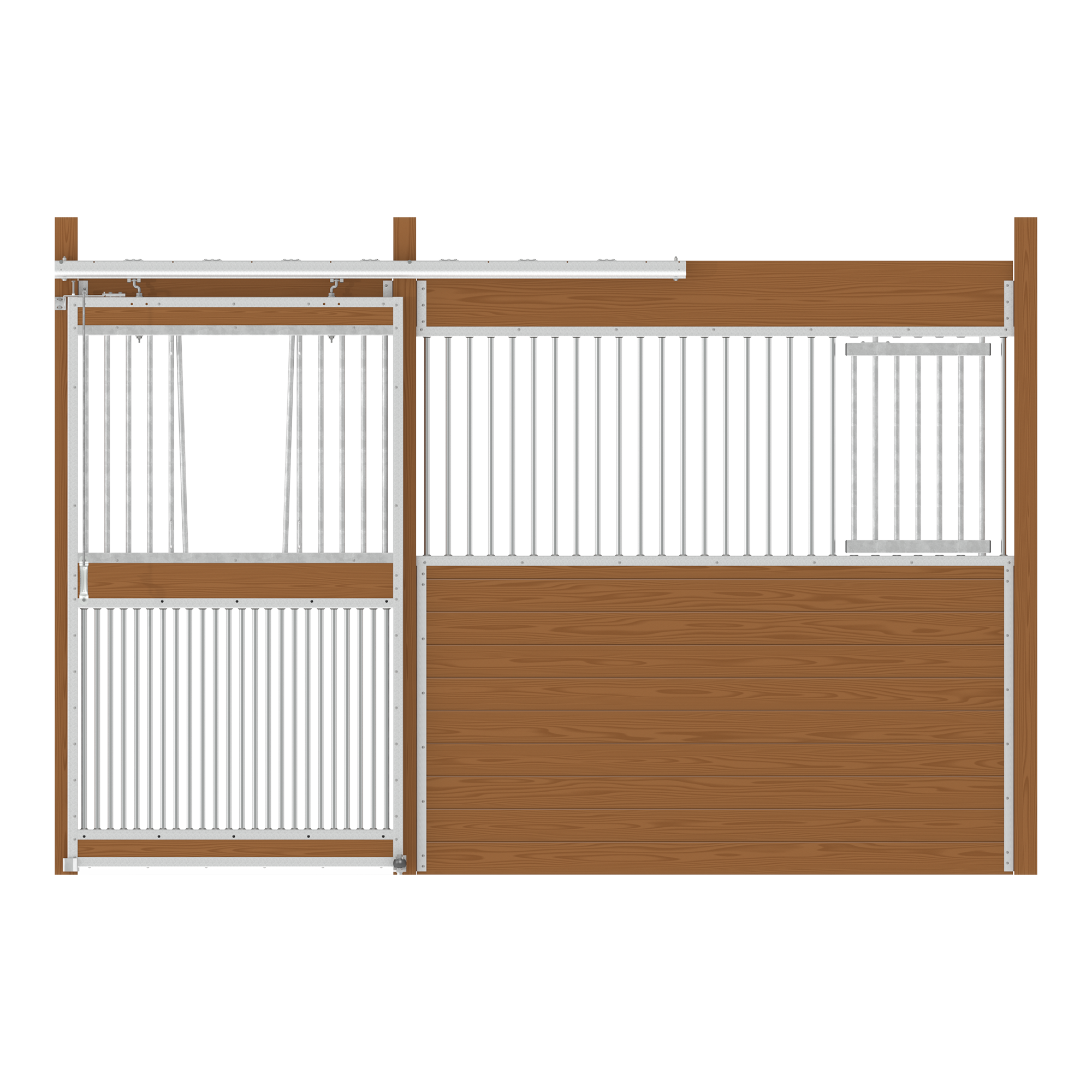

Essex Stall Front with Full Grill V-Door and Feed Door Kit
Essex Stall Front Kits are easily accessorized. All grillwork is spaced 3.25″ and has a galvalume finish to resist rust. Grill bars are seated in a heavy duty rubber grommet that eliminates rattling. Sliding door track and trollies are a one touch system making opening and closing your door smoother. They can be used for new builds or can be retrofitted in an existing barn. Customizing can be done on site – making Essex fronts versatile and an economical choice.
Your Price: Price range: $1,353.14 through $1,404.75
[yith_wcwl_add_to_wishlist]
Elevate Your Barn with the Essex Horse Stall Front Kit: V-Door, Full Grill & Feed Door
Create a safe, social, and beautiful environment for your horses with the Essex Stall Front Kit. This comprehensive kit provides a premium, customizable solution for your barn, combining functionality with a classic aesthetic. The unique V-door design promotes natural socialization and improves airflow, while the integrated feed door offers convenience for you.
Constructed from high-quality, corrosion-resistant Galvalume steel, the Essex stall front is built to last. The heavy-duty 14-gauge channel and 16-gauge bars ensure security and durability. This kit is designed for straightforward assembly and can be installed in both new and existing barns, fitting either 10′ or 12′ stalls.
Key Features:
- Enhanced Socialization & Ventilation: The V-door design allows horses to comfortably see out and interact, reducing stall boredom and improving air circulation.
- Convenient Feeding: The included feed door provides quick and easy access for feeding, saving you time and effort.
- Durable Construction: Made with high-quality, North American Galvalume steel for superior rust protection and longevity.
- Easy Assembly: Designed for straightforward installation with detailed instructions, making it a great option for DIYers.
- Customizable: Available for 10′ and 12′ stalls and can be used with a variety of wood types to match your barn’s aesthetic. A fully-welded V-door insert is also available (sold separately) to convert the door to a full grill.
Product Specifications:
- Finish: Galvalume
- Channel Gauge: 14-Gauge
- Bar Gauge: 16-Gauge
- Bar Spacing: 3¼” on-center for safety
- Available Sizes: 10′ and 12′ kits
What’s Included:
- Essex V-Door Kit
- Premium Track Door Hardware Kit
- Essex Grillwork Section Kit
- Essex Feed Door Kit
- All necessary U-channels and screws
Lumber and support posts are not included.
Give your horses the comfort and quality they deserve. Order your Essex Stall Front Kit today!
Choose from a wide array of products, such as partition walls, stall doors, grill sections, window grills, and many other accessories! For more photos and ideas, we welcome you to visit our Essex Horse Stalls Pinterest board section.
- Length: 10′ or 12′
- Finish: Galvalume (*all material is made with high-quality North American steel)
- Channel Gauge: 14-gauge
- Bar Gauge: 16-gauge
- Bar Diameter: 7/8″
- Bar Height (Inside-to-Inside): 33″
- Bar Spacing (On-Center): 3 1/4″
- Door Bottom Bar Spacing (On-Center): 2″
- Floor to Top of Header: 2×10 Header Board = 91 5/8″, 2×12 Header Board = 93 5/8″
- Floor to Bottom of Bars: 48 1/2″
- Door Height (Finished): 86 3/4″
- Door Width: 51 1/4″
- Door Opening Width (Standard): 48″
- Door Track: 8′ Premium Track
- Door Latch: Door Top Latch System
- Door Latch Lifting Rod Length: 43 1/4″
- Door Guide: Stay Roller
- Door Stopper: Post Bumper
- Wood Direction: Horizontal
- Warranty: 1-Year Warranty on Material Defects
*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 2″x 6″ tongue and groove boards as wood supplier measurements can vary.
Installation: Click here to access the Essex horse stall installation
