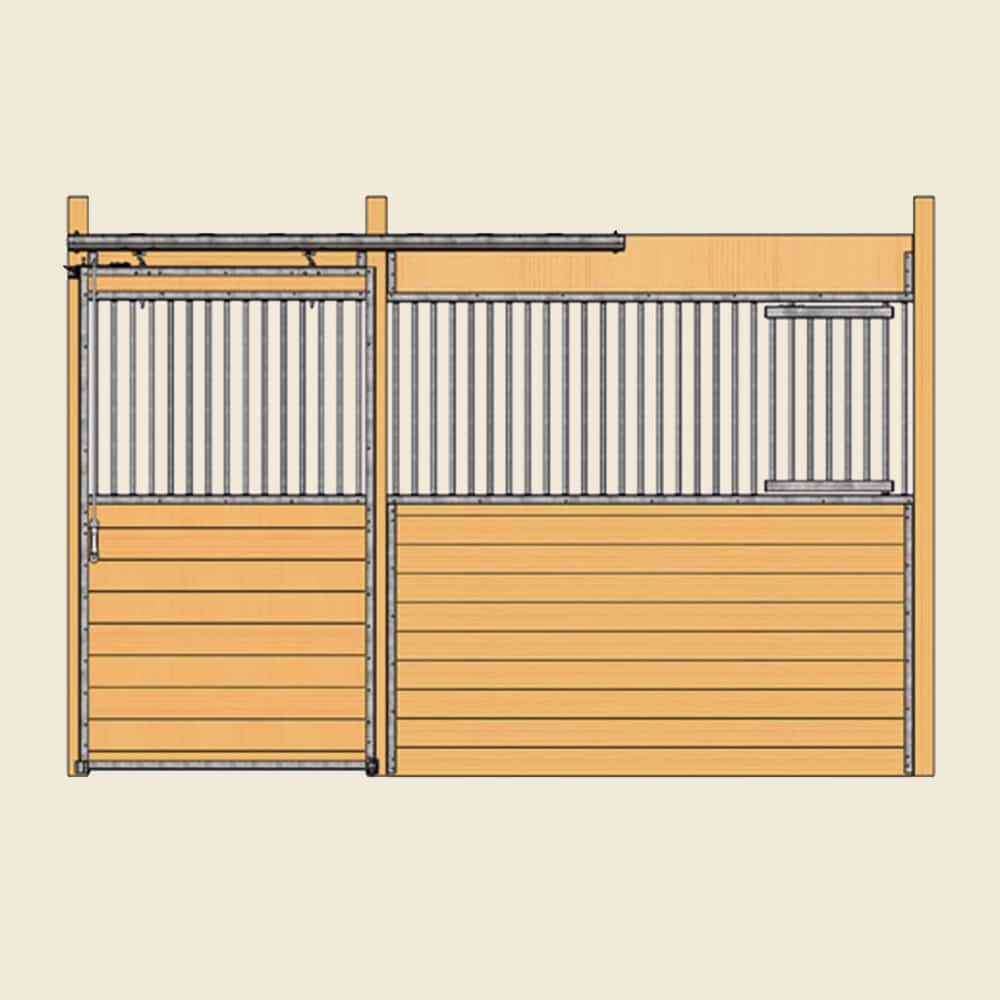

Essex Stall Front with Grill Top Door & Feed Door Kit
Essex Stall Front Kits are easily accessorized. All grillwork is spaced 3.25″ and has a galvalume finish to resist rust. Grill bars are seated in a heavy duty rubber grommet that eliminates rattling. Sliding door track and trollies are a one touch system making opening and closing your door smoother. They can be used for new builds or can be retrofitted in an existing barn. Customizing can be done on site – making Essex fronts versatile and an economical choice.
Your Price: $1,017.48 – $1,069.09
[yith_wcwl_add_to_wishlist]
Transform Your Barn with a Professional Essex Stall Kit
Revolutionize your horse facility with our innovative Essex stall kit, designed to deliver maximum functionality and adaptability for today’s equestrian needs. This comprehensive Essex stall kit combines full grilled construction with dual door access, creating an ideal environment for horse care and management efficiency.
Revolutionary Features of Our Essex Stall Kit:
Triple Access Design: This Essex stall kit provides unmatched versatility with a full grilled front, dedicated grill top door for daily access, and an integrated feed door positioned within the grillwork section for streamlined feeding operations without entering the stall.
Modular Customization Capability: The Essex stall kit excels in adaptability, allowing on-site modifications to meet specific facility requirements. Whether you’re building new or upgrading existing structures, this Essex stall kit adapts to your unique barn layout and operational needs.
Advanced Anti-Rattle Technology: Each Essex stall kit incorporates precision-engineered rubber grommets that secure every grill bar, eliminating noise and ensuring quiet operation. This attention to detail creates a calmer environment for both horses and handlers.
Economical Installation Approach: The Essex stall kit maximizes value through intelligent design that includes all necessary hardware while allowing you to source lumber locally, significantly reducing freight costs and supporting your local suppliers.
Premium Trolley System: Our Essex stall kit features a sophisticated one-touch trolley mechanism that transforms door operation into an effortless gliding motion, reducing wear and extending the system’s operational lifespan.
Build Specifications:
- Configurations: 10′ or 12′ standard lengths
- Steel Grade: Premium North American steel throughout
- Grill Spacing: Precisely engineered 3.25″ on-center spacing
- Channel Strength: Heavy-duty 14-gauge construction
- Protective Coating: Galvalume finish for superior corrosion resistance
Installation Advantages:
The Essex stall kit accommodates both new construction projects and barn retrofits, offering flexible mounting options for wood or metal support systems. Professional installation guides ensure proper assembly and optimal performance.
Connect with RAMM’s Essex stall kit specialists at 800-434-8456 for personalized consultation on optimizing your Essex stall kit configuration.
Comprehensive installation documentation and technical support included with every Essex stall kit purchase.
Choose from a wide array of products, such as partition walls, stall doors, grill sections, window grills, and many other accessories!
- Length: 10′ or 12′
- Finish: Galvalume (*all material is made with high-quality North American steel)
- Channel Gauge: 14-gauge
- Bar Gauge: 16-gauge
- Bar Diameter: 7/8″
- Bar Height (Inside-to-Inside): 33″
- Bar Spacing (On-Center): 3 1/4″
- Floor to Top of Header: 2×10 Header Board = 91 5/8″, 2×12 Header Board = 93 5/8″
- Floor to Bottom of Bars: 48 1/2″
- Door Height (Finished): 86 3/4″
- Door Width: 51 1/4″
- Door Opening Width (Standard): 48″
- Door Track: 8′ Premium Track
- Door Latch: Door Top Latch System
- Door Latch Lifting Rod Length: 47 1/8″
- Door Guide: Stay Roller
- Door Stopper: Post Bumper
- Wood Direction: Horizontal
- Warranty: 1-Year Material Warranty
*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 2”x 6” tongue and groove boards as wood supplier measurements can vary.
Installation: Click here to access the Essex horse stall installation
