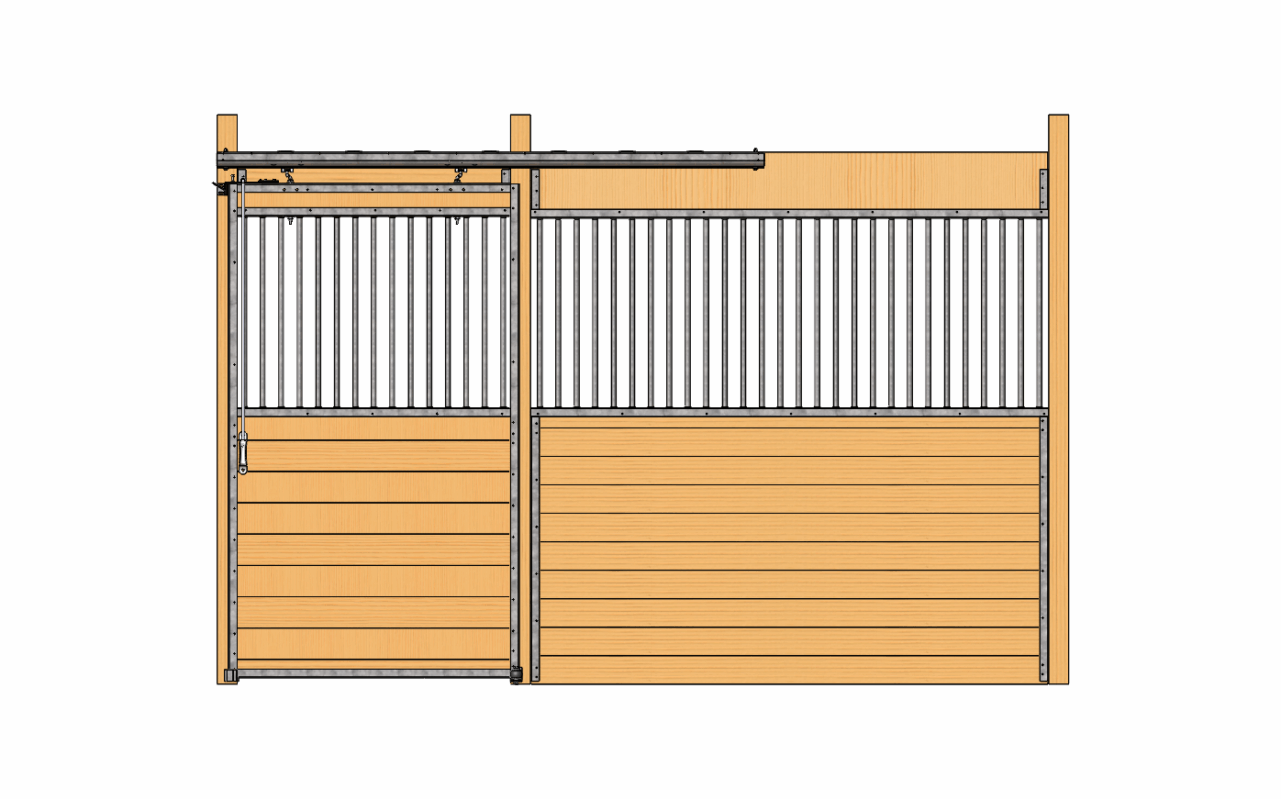

Essex Stall Front with Grill Top Door Kit

SKU: SS Category:

Essex Stall Front Kits are easily accessorized. All grillwork is spaced 3.25″ and has a galvalume finish to resist rust. Grill bars are seated in a heavy duty rubber grommet that eliminates rattling.  Sliding door track and trollies are a one touch system making opening and closing your door smoother. They can be used for new builds or can be retrofitted in an existing barn. Customizing can be done on site – making Essex fronts a versatile and economical choice.

Your Price: Price range: $888.26 through $939.87

[yith_wcwl_add_to_wishlist]

The Essex Stall Front with Grill Top Door Kit offers a versatile, economical, and durable solution for both new and existing barns. Featuring a rust-resistant galvalume finish and high-quality North American steel construction, this kit is designed for longevity and easy customization on site

Key Features:

  • Premium Galvalume Finish:
    All grillwork is finished with galvalume for superior rust resistance, ensuring your stall front stands up to years of use

  • Heavy-Duty Construction:
    Built with 14-gauge channels and 16-gauge, 7/8″ diameter bars, this stall front provides robust strength and security. The bars are spaced 3.25″ on center and seated in heavy-duty rubber grommets to eliminate rattling1.

  • Smooth Sliding Door System:
    The sliding door track and trolley system is designed for effortless, one-touch operation, making daily use smooth and reliable.

  • Flexible Installation:
    Suitable for both new builds and retrofits, the Essex Stall Front can be customized on site to fit your barn’s unique requirements. All necessary hardware is included; you supply the wood to save on freight costs

Essex Stall Kit with grilled top door with Galvalume finish. Can be installed in new build barns or retrofitted into existing barns. Essex stalls must be installed with wood or metal support posts.  All hardware is included; you supply the wood to save with freight costs.

Choose from a wide array of products, such as partition walls, stall doors, grill sections, window grills, and many other accessories!

  • Length: 10′ or 12′
  • Finish: Galvalume  (*all material is made with high-quality North American steel)
  • Channel Gauge: 14-gauge
  • Bar Gauge: 16-gauge
  • Bar Diameter: 7/8″
  • Bar Height (Inside-to-Inside): 33″
  • Bar Spacing (On-Center): 3 1/4″
  • Floor to Top of Header: 2×10 Header Board = 91 5/8″, 2×12 Header Board = 93 5/8″
  • Floor to Bottom of Bars: 48 1/2″
  • Door Height (Finished): 86 3/4″
  • Door Width: 51 1/4″
  • Door Opening Width (Standard): 48″
  • Door Track: 8′ Premium Track
  • Door Latch: Door Top Latch System
  • Door Latch Lifting Rod Length: 47 1/8″
  • Door Guide: Stay Roller
  • Door Stopper: Post Bumper
  • Wood Direction: Horizontal
  • Warranty: 1-Year Material Warranty

*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 2″x 6″ tongue and groove boards as wood supplier measurements can vary.

Installation: Click here to access the Essex horse stalls’ installation instructions.
