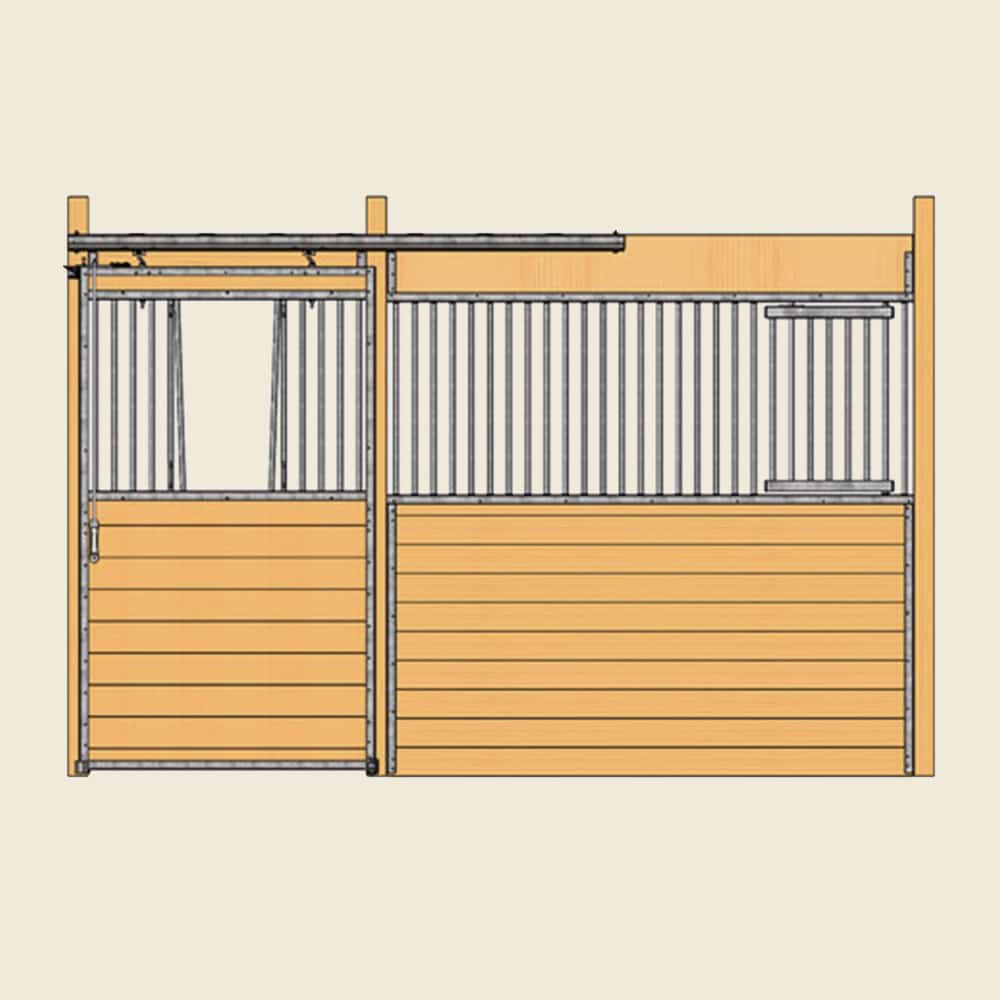

Essex Stall Front with V-Door & Feed Door Kit
The Essex Stall Front Kit has a fully grilled front with a V-Door opening allowing your horse to socialize and offers better ventilation. The Feed Door opens from your aisle allowing you to feed your horses hay and grain, saving time. Easier to assemble and the galvalume finish provides enhanced rust protection.
Your Price: $1,149.17 – $1,201.17
[yith_wcwl_add_to_wishlist]
Premium Essex Stall Front Kit with V-Door & Feed Door Design
Experience superior horse stall functionality with our comprehensive Essex stall front kit, engineered for optimal horse socialization and feeding convenience. This professional-grade Essex stall front kit combines innovative V-door design with practical feed door access for the ultimate in horse stall performance.
Key Features of Our Essex Stall Front Kit:
Dual Door Functionality: The Essex stall front kit features both a V-door opening for horse socialization and ventilation, plus a dedicated feed door that opens from the aisle for convenient hay and grain feeding, saving valuable time during daily care.
One-Touch Operation System: Each Essex stall front kit includes an advanced one-touch sliding mechanism with heavy-duty rubber grommets that eliminate rattling while ensuring smooth, quiet door operation for years of reliable performance.
Enhanced Galvalume Protection: Our Essex stall front kit features a durable galvalume finish that provides superior rust resistance, ensuring long-lasting performance even in demanding barn environments with high moisture and activity levels.
Versatile Installation Options: The Essex stall front kit is designed for maximum flexibility, suitable for new barn construction or retrofitting existing facilities. On-site customization capabilities make this Essex stall front kit both economical and adaptable to your specific needs.
Professional Bar Construction: Each Essex stall front kit features 3.25″ on-center bar spacing with 7/8″ diameter bars and 14-gauge channel construction, providing optimal safety while maintaining excellent visibility and airflow throughout the stall.
Technical Specifications:
- Available Lengths: 10′ or 12′ configurations
- Material: High-quality North American steel
- Bar Construction: 16-gauge, 7/8″ diameter bars
- Door Opening: Standard 48″ width
- Finish: Galvalume for enhanced rust protection
- Warranty: 1-Year Material Warranty
Complete System Components:
Each Essex stall front kit includes premium track, top door latch system, stay roller guide, and post bumper for complete installation. Easy assembly design with all hardware included – you supply wood to save on freight costs.
Contact RAMM specialists at 800-434-8456 for expert guidance on your Essex stall front kit installation and customization options.
Professional installation instructions included with every Essex stall front kit.
Choose from a wide array of products, such as partition walls, stall doors, grill sections, window grills, and many other accessories!
- Length: 10′ or 12′
- Finish: Galvalume (*all material is made with high-quality North American steel)
- Channel Gauge: 14-gauge
- Bar Gauge: 16-gauge
- Bar Diameter: 7/8″
- Bar Height (Inside-to-Inside): 33″
- Bar Spacing (On-Center): 3 1/4″
- Floor to Top of Header: 2×10 Header Board = 91 5/8″, 2×12 Header Board = 93 5/8″
- Floor to Bottom of Bars: 48 1/2″
- Door Height (Finished): 86 3/4″
- Door Width: 51 1/4″
- Door Opening Width (Standard): 48″
- Door Track: 8′ Premium Track
- Door Latch: Door Top Latch System
- Door Latch Lifting Rod Length: 47 1/8″
- Door Guide: Stay Roller
- Door Stopper: Post Bumper
- Wood Direction: Horizontal
- Warranty: 1-Year Material Warranty
*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 2”x 6” tongue and groove boards as wood supplier measurements can vary.
