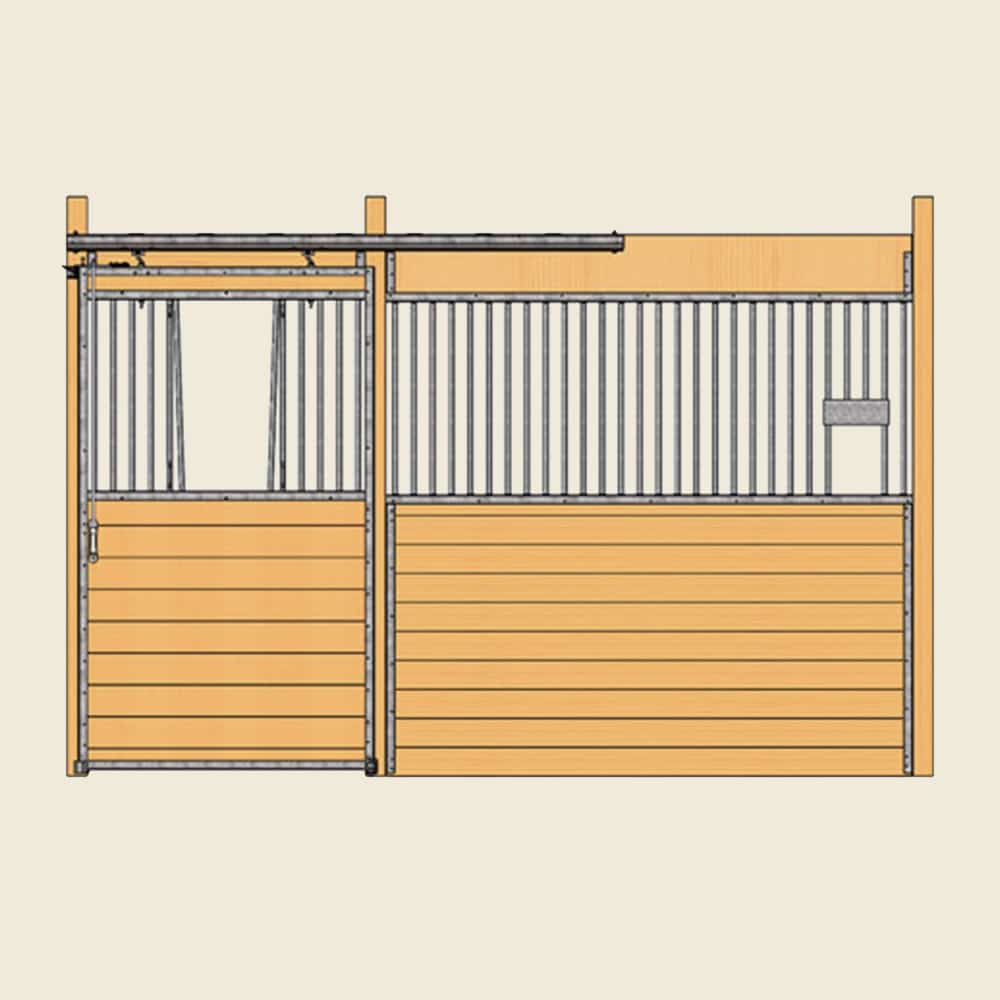

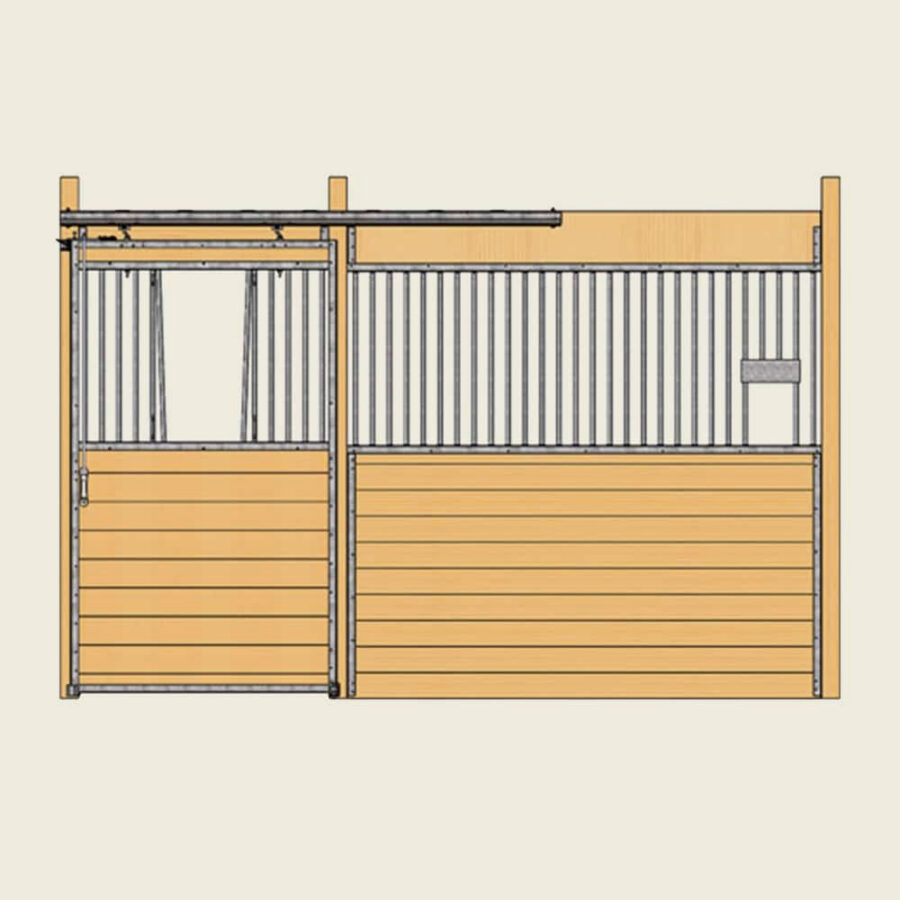

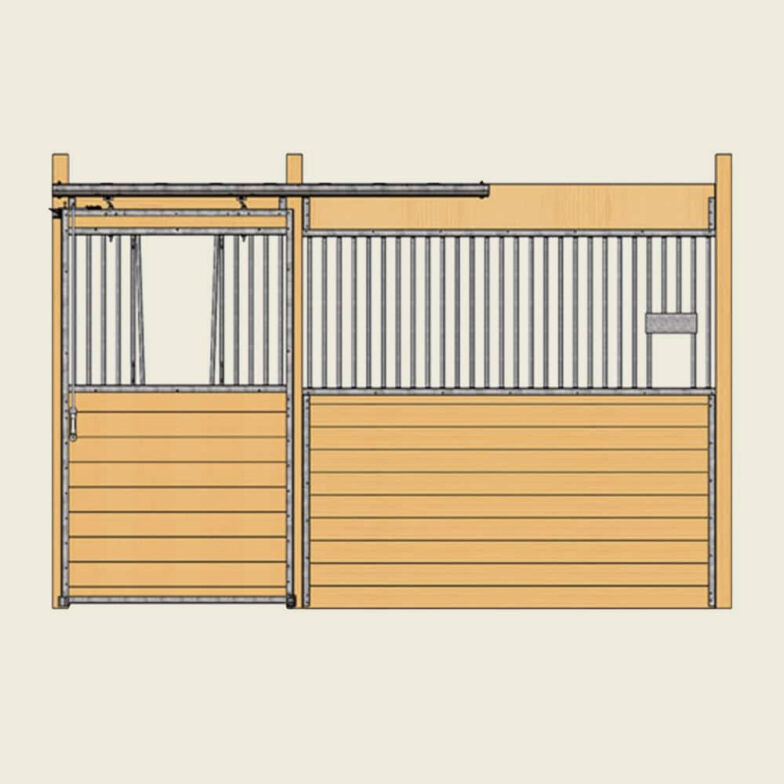

Essex Stall Front with V-Door & Feed Opening Kit
Essex Stall Front Kits are easily accessorized. All grillwork is spaced 3.25″ and has a galvalume finish to resist rust. Grill bars are seated in a heavy duty rubber grommet that eliminates rattling. Sliding door track and trollies are a one touch system making opening and closing your door smoother. They can be used for new builds or can be retrofitted in an existing barn. Customizing can be done on site – making Essex fronts versatile and an economical choice.
Your Price: Price range: $1,045.04 through $1,096.65
[yith_wcwl_add_to_wishlist]
Create a Custom & Functional Barn with the Essex Horse Stall Front Kit (V-Door & Feed Opening)
Elevate your barn with the versatile and durable Essex Stall Front Kit, featuring a V-door and a convenient feed opening. This all-in-one kit is expertly designed for both new barn construction and retrofitting existing stalls, offering a cost-effective solution without compromising on quality or safety.
Crafted from high-quality, North American Galvalume steel, this stall front is built to withstand the rigors of daily use while resisting rust and corrosion. The innovative V-door design allows your horse to socialize and enjoy better ventilation, reducing stall boredom. For added convenience, the integrated feed opening simplifies feeding time, allowing you to provide hay and grain without entering the stall.
The Essex kit is engineered for a quiet, low-maintenance experience. Grill bars are seated in heavy-duty rubber grommets to eliminate rattling, and the sliding door operates smoothly on a premium, one-touch track and trolley system.
Key Features:
- Social V-Door Design: Promotes a more natural environment for your horse with increased ventilation and visibility.
- Convenient Feed Opening: Streamline your feeding routine with easy access from the aisle.
- Durable Galvalume Steel: Offers superior rust protection compared to galvanized alternatives, ensuring a long-lasting, professional finish.
- Quiet & Smooth Operation: Rubber grommets prevent rattling bars, and the high-quality track system ensures the door slides effortlessly.
- DIY-Friendly & Customizable: Kit is designed for easy on-site assembly. Use your own lumber to save on freight costs and match your barn’s unique style.
- Safe & Secure: Features heavy-duty 14-gauge channel and 16-gauge bars with a safe 3.25″ on-center spacing.
Product Specifications:
- Material: North American Galvalume Steel
- Available Sizes: 10′ or 12′ Stall Fronts
- Finish: Rust-Resistant Galvalume
- Door Dimensions: 86 ¾” Height x 51 ¼” Width
- Bar Spacing: 3.25″ on-center
- Warranty: 1-Year Limited Manufacturer’s Warranty
What’s Included?
This kit includes all the essential hardware for one complete stall front: the V-door, grill section with feed opening, U-channels, and our premium track and trolley system. Lumber must be purchased separately.
Invest in a safer, more functional, and beautiful barn. Order your Essex Stall Front Kit today!
Choose from a wide array of products, such as partition walls, stall doors, grill sections, window grills, and many other accessories!
- Length: 10′ or 12′
- Finish: Galvalume (*all material is made with high-quality North American steel)
- Channel Gauge: 14-gauge
- Bar Gauge: 16-gauge
- Bar Diameter: 7/8″
- Bar Height (Inside-to-Inside): 33″
- Bar Spacing (On-Center): 3 1/4″
- Floor to Top of Header: 2×10 Header Board = 91 5/8″, 2×12 Header Board = 93 5/8″
- Floor to Bottom of Bars: 48 1/2″
- Door Height (Finished): 86 3/4″
- Door Width: 51 1/4″
- Door Opening Width (Standard): 48″
- Door Track: 8′ Premium Track
- Door Latch: Door Top Latch System
- Door Latch Lifting Rod Length: 47 1/8″
- Door Guide: Stay Roller
- Door Stopper: Post Bumper
- Wood Direction: Horizontal
- Warranty: 1-Year Material Warranty
*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 5″ tongue and groove boards as wood supplier measurements can vary.
