Essex Privacy Partition Kit (10′ or 12′)
The Essex grilled privacy partition kit has a rust-resistant galvalume finish and 3-1/4″ bar spacing for improved safety. Kits are available in four different grill lengths: 48″, 65″, 72″, and 91″.
Compatibility: Essex Stalls
Your Price: $333.68 – $446.59
[yith_wcwl_add_to_wishlist]
The Essex grilled privacy partition kit has a pre-galvanized finish for rust protection and is easy to assemble. They can be installed in either new or existing horse barns and feature 3-1/4″ on-center bar spacing for improved safety. Kits are available in four different grill lengths: 48″, 65″, 72″, and 91″.
*Note: Lumber is not included; we recommend tongue and groove wood boards for all of our horse stall systems. The wood board count in RAMM horse stall installation instructions is estimated, based on [once installed] 2″x 6″ face/spaced boards.
Length: 10′ or 12′

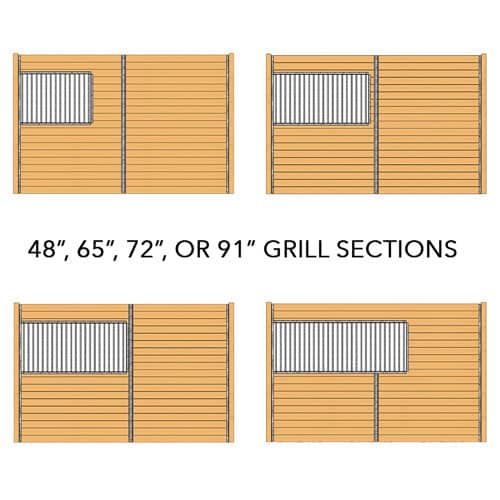

Grillwork Section Options: 48″, 65″, 72″, or 91″
Finish: Pre-Galv
Channel Gauge: 14-gauge
Bar Gauge: 16-gauge
Bar Spacing: 3-1/4″
Bar Diameter: 7/8″
Bar Height (Inside-to-Inside): 33″
Wood Direction: Horizontal
Compatibility: Essex Stalls
Below are two links to the installation instructions for our Essex standard horse stalls in a PDF format, which you can save and print for future reference:
Essex Standard Stall Premium Track Installation Instructions
