Door Top Latch System Kit

SKU: DLK Categories: , ,

RAMM’s door top latch system hardware kit is a self-latching system designed to keep sliding stall doors secure and closed. Constructed of high-quality, heavy-duty galvanized steel, the rugged design will…

Your Price: $70.56 – $83.56

[yith_wcwl_add_to_wishlist]

RAMM’s door top latch system hardware kit is a self-latching system designed to keep sliding stall doors secure and closed. Constructed of high-quality, heavy-duty galvanized steel, the rugged design will provide a long-lasting, functioning stall door.

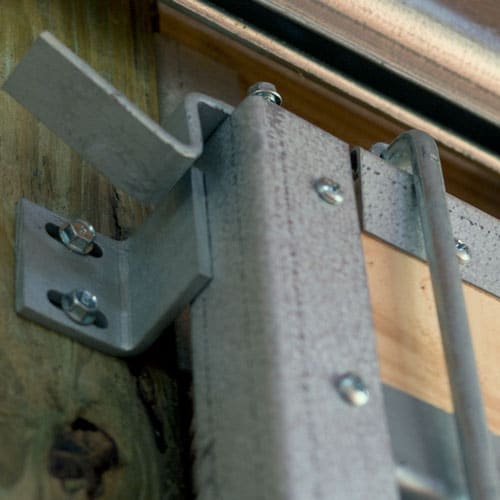

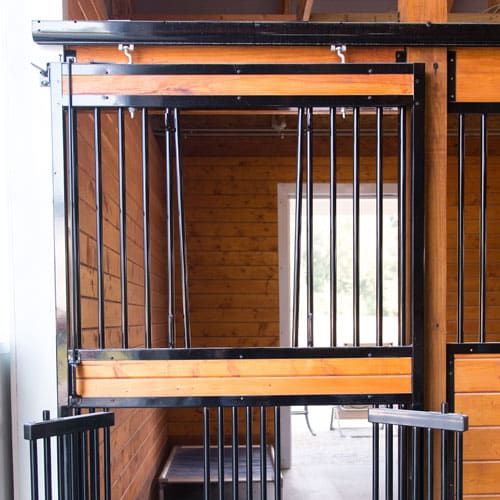

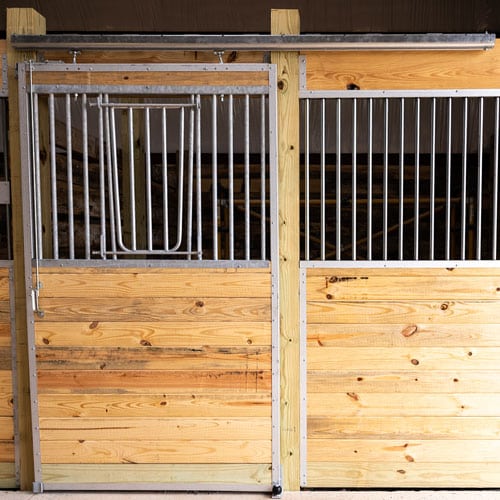

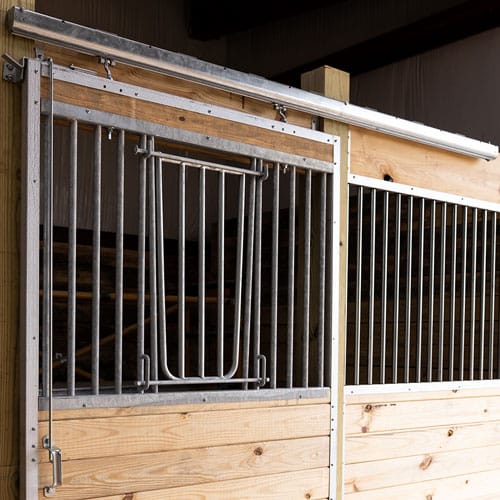

This unique latch system opens the door from a lifting rod in the handle, unlike a slide latch, which could protrude into the door opening. The kit is fully adjustable and is a compatible fit with most sliding stall doors. Choose between galvanized or powder-coated black finishes for a style that fits your property. Compliments well with our Pinlock Latch System.

Which lifting rod fits your needs?

[47-1/8″] “Long” Lifting Rods Compatibility:

  • Grill Top Doors [A]
  • V-Doors [B]

[43-1/4″] “Short” Lifting Rods Compatibility:

  • Full Grill Doors [G]
  • Full Grill V-Doors [H]
  • Grill Top Mesh Bottom Doors [J]
  • Mesh Bottom V-Doors [K]
  • Full Mesh Doors [I]



Shipping: Due to the dimensions of this product, accurate shipping cannot be calculated through our ecommerce site. Please call one of our account managers at 1-800-878-5644 for shipping information.









Finish: Galvanized or Powder-Coated Black

Material: Heavy-Duty Galvanized Steel

Weight Rating: Doors up to 400 lbs.

Compatibility: Essex and Oxford horse stalls

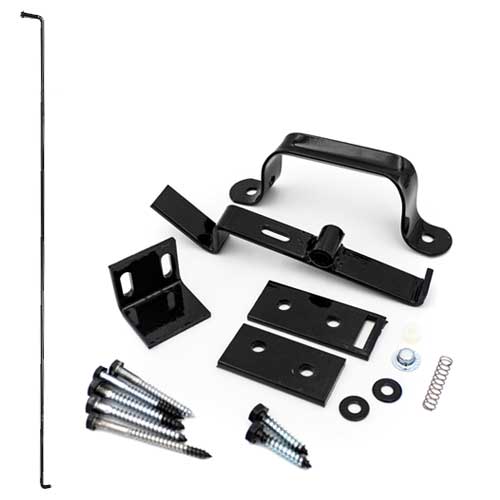

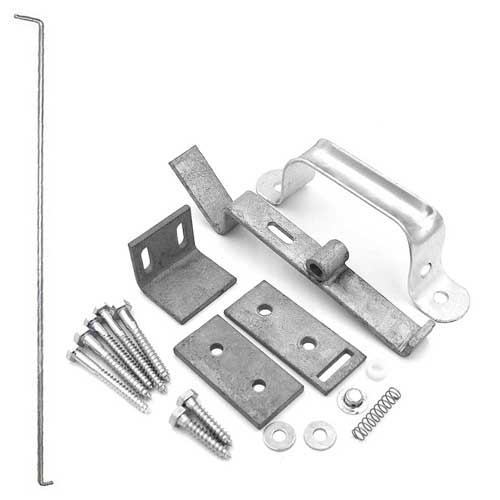

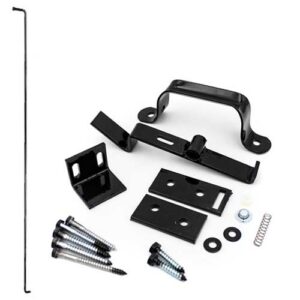

Includes:

  • 1 – Lifting Rod – The lifting rod connects the handle on the door to the top latch assembly on the top of the door. By lifting up the “lifting rod” you release the latch on the top of the door. This allows for a simple one-handed operation and a well-secured door. The lifting rod length you need is determined by the stall door style (see below).

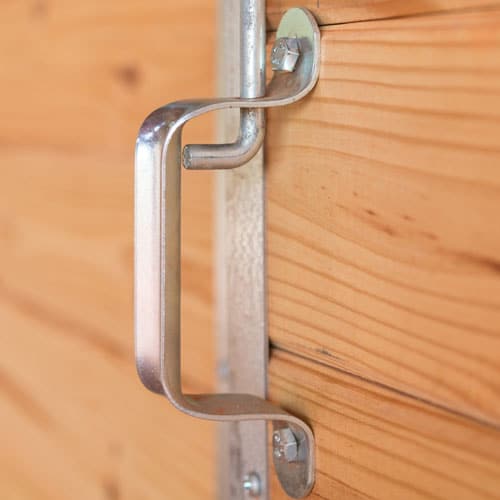

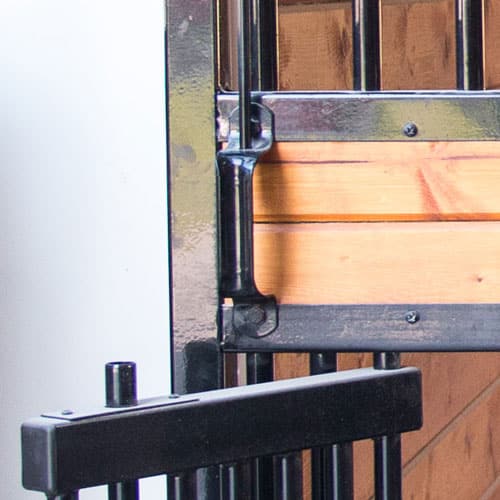

  • 1 – Door Latch Handle – Contoured for a good grip, the door latch handle is made from heavy-duty galvanized steel and is excellent for large sliding doors. This ergonomic handle allows for a one-handed operation.
  • 1 – Door Latch Top Latch Arm
  • 1 – Door Latch Top Latch Plate
  • 1 – Door Latch Top Latch Spacer Plate
  • 1 – Door Latch Top Latch Catch
  • 1 – Latch Spring
  • 1 – Nylon Washer
  • 2 – Latch Catch Washers
  • 1 – Lifting Rod Push Cap
  • 2 – 1/4″ x 2-1/2″ Lag Screws
  • 1 – 1/4″ x 3″ Lag Screw
  • 2 – 5/16″ x 2-1/2″ Lag Screws
  • 4 – 5/16″ x 1-1/2″ Lag Screws



Click here to access the Essex horse stalls installation instructions PDF, which you can save or print for reference.

Click here to access the Oxford horse stalls installation instructions PDF, which you can save or print for reference.
