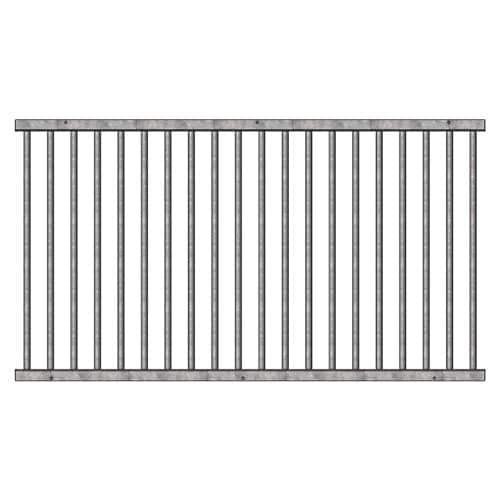

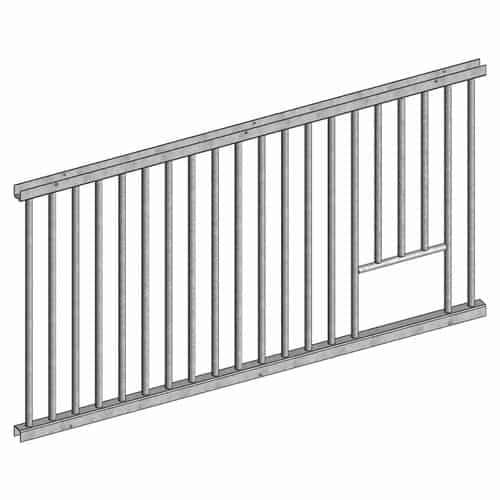

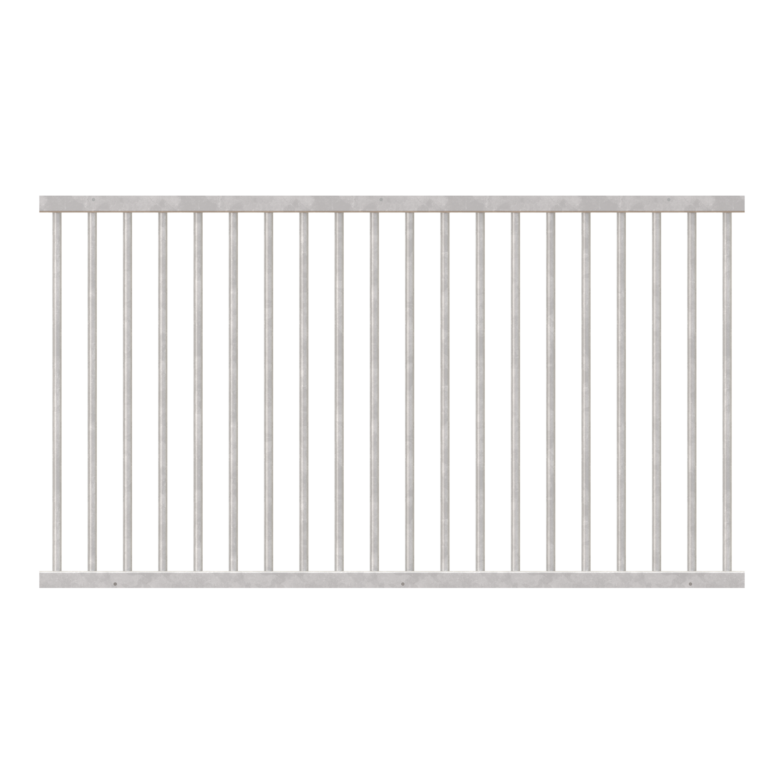

65″ Welded Grillwork Section
Ensure maximum security and a quiet barn with the 65″ Welded Grillwork Section. Designed exclusively for Oxford Horse Stalls, this one-piece welded panel eliminates rattling bars and provides a heavy-duty barrier for your equine partners.
[yith_wcwl_add_to_wishlist]
Strength, Safety, and Silence for Your Oxford Stalls
The 65″ Welded Grillwork Section is the premium choice for finishing your Oxford Horse Stalls. Unlike “kit” grills where individual bars are inserted into channels during installation, this section arrives as a single, solid-welded unit. This construction method offers distinct advantages for the professional barn owner.
The Welded Advantage Because every bar is welded securely to the frame at both the top and bottom, this grillwork is incredibly rigid. It stands up to the weight of leaning horses without bowing and eliminates the annoying “rattling” sound often heard in loose-bar systems. It provides a solid, quiet, and secure environment.
Optimized for Stall Health This 65-inch section opens up the front of your stall, allowing for vital airflow to clear ammonia and dust. It also promotes socialization, letting your horse watch the activity in the barn aisle, which reduces boredom and stable vices.
Seamless Oxford Compatibility Engineered specifically for the Oxford Horse Stall line, this grillwork integrates perfectly with your existing Oxford door frame and hardware. The clean welds and smooth finish ensure there are no rough edges that could injure your horse.
Key Features:
-
One-Piece Construction: Fully welded unit means no assembly of individual bars is required.
-
Rattle-Free Design: Solid welds prevent bars from spinning or rattling.
-
Heavy-Duty Safety: High-strength steel withstands impact and cribbing.
-
Perfect Fit: Designed specifically for the 65″ opening in Oxford stall fronts.
-
Professional Finish: Provides a sleek, upscale look to any barn aisle.
*Note: Six (6) #12 x 1-1/4″ Phillips pan head stall screws and lumber are not included; we recommend tongue and groove wood for all of our horse stall systems.
Shipping: Due to the dimensions of this product, accurate shipping cannot be calculated through our ecommerce site. Please call one of our account managers at 1-800-878-5644 for shipping information.
Length: 65″
Finish: Hot-Dip Galvanized or Powder-Coated Black
Bar Gauge: 16-gauge
Channel Gauge: 14-gauge
Bar Spacing: 3-1/4″
Bar Diameter: 7/8″
Bar Height: 33-1/2″
Floor to Bottom of Bars: 48-1/2″
Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit.)
Not Included: Stall Screws
Warranty: 1-Year Warranty on Workmanship.
*Note: Must be installed with wood or metal support posts. Lumber is not included in the kit.
Made in the USA!
Below are links to installation instructions and literature regarding our Oxford and Cambridge welded horse stalls. They are in a PDF format, in which you can save and print for future reference:
Oxford Installation Instructions
