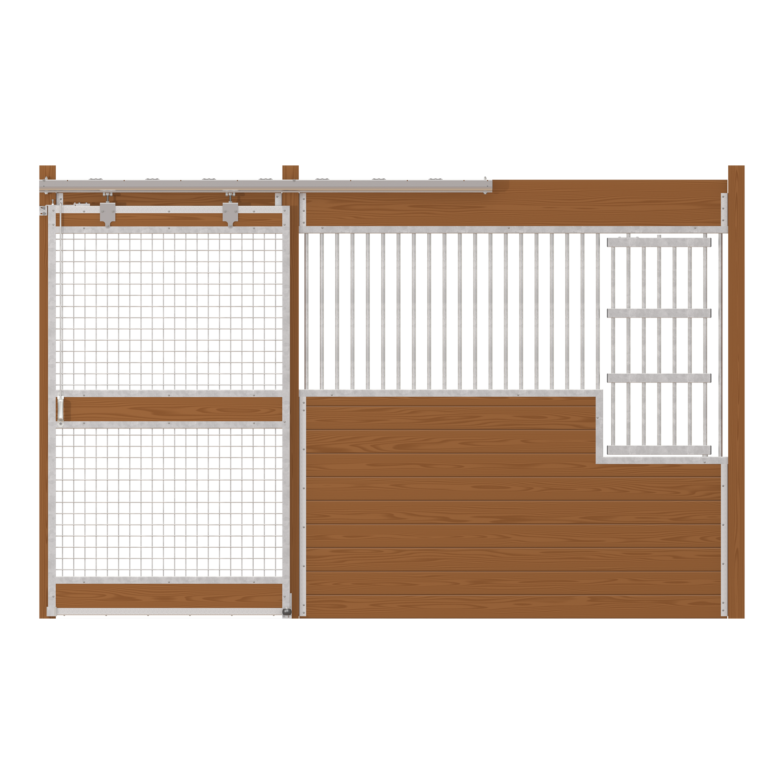

Oxford Stall Front with Full Mesh Door & Large Feed Door

The Oxford Stall Front with Full Mesh Door & Large Feed Door is made to accommodate both you and your horses.  The 2” x 2” mesh provides ultimate security for both large and small animals. Great for foaling while providing ample ventilation and visualization. The large feed door accommodates the  Poly Corner feeder that holds both hay and grain, making it easier to feed from your aisle.

  • Mesh allows visibility into aisle and air flow
  • Fully welded stall frame
  • Over sized feed door opens into aisle for easier feeding

$0.00

Breathe Easy: Maximum Ventilation & Visibility

With a full mesh door fabricated with 2″ × 2″ grid spacing, ensures your horse benefits from consistent airflow, fresh light and visibility to the barn aisle.  The openness helps reduce barn odors, stabilizes interior humidity.  It also promotes horse well-being by allowing visual connection with surroundings. For barn managers and owners, the mesh lets you quickly monitor activity and check on your horses at a glance.

Convenience at Your Reach:Large Feed Door Access

Feeding is simplified with the integrated large feed door, designed wide enough to accommodate a Poly Corner Feeder. No more awkward handling of hay or grain. Just open the feed door and deliver hay and grain with ease. This door saves time and minimizes disruptions. It reduces the need to enter each stall frequently, minimizing stress with your horses.

Strength, Safety & Sleek Design

This stall front features a fully welded framework. The grill and door sections are welded to eliminate weak joints. The robust steel construction The teardrop track system is designed for smooth, low-maintenance performance over time. Every detail , from rounded inter welded bars to sturdy mesh, prioritizes your horse’s safety and your peace of mind.



Length: 10′ or 12′ (Custom sizes available upon request.)

Finish: Powder Coated or Hot-Dip Galvanized

Channel Gauge: 14-gauge

Bar Gauge: 16-gauge

Mesh: 1/4″ mesh steel with 2″ x 2″ square holes

Bar Spacing: 3-¼”

Bar Diameter: ⅞”

Bar Height: 33″

Door Width: 51-¼”

Door Opening Width (Standard): 48″

Door Height: 86-¾”

Floor to Top of Header: 93″

Floor to Bottom of Bars: 48-½”

Latch TypeTop Latch

PostPost Bumper

GuideStay Roller

Track8′ Premium Track

Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit so you save with freight.)

Production Time: Please allow 4-6 weeks lead time for this stall system.

Warranty: 1-Year Warranty on Workmanship.

*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 2 x 6” tongue and groove boards as wood supplier measurements can vary. Made in the USA!

Below are links to installation instructions and literature regarding our Oxford welded horse stalls. They are in a PDF format, which you can save and print for future reference:

Oxford Welded Stall Installation Instructions

The Appearance of Hot-Dip Galvanized Coating
