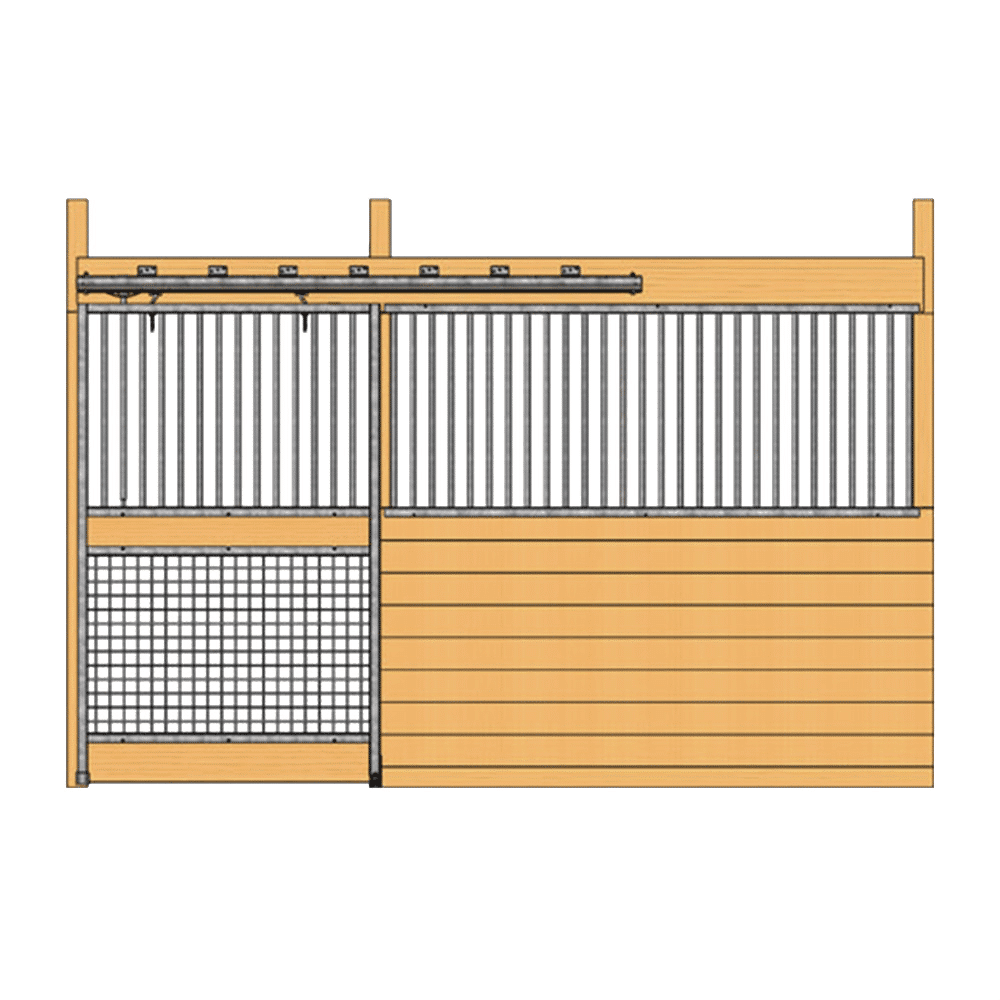

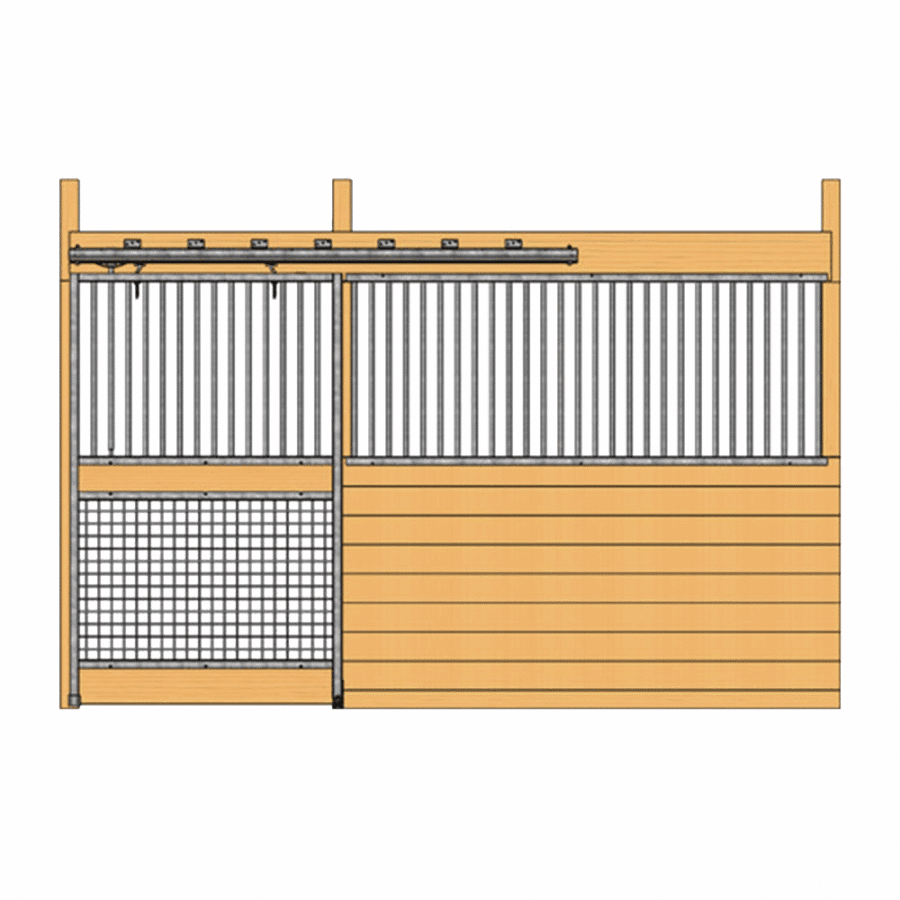

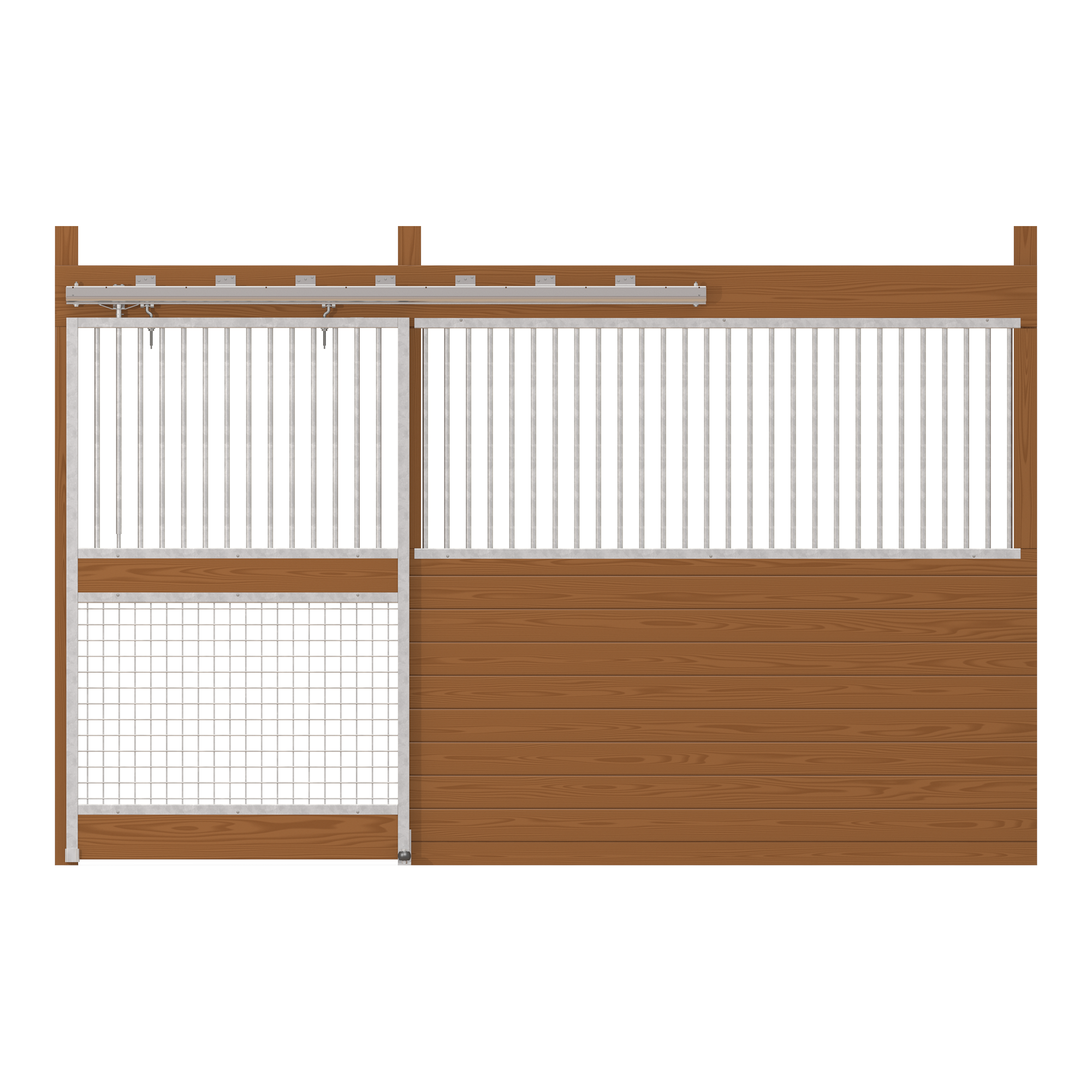

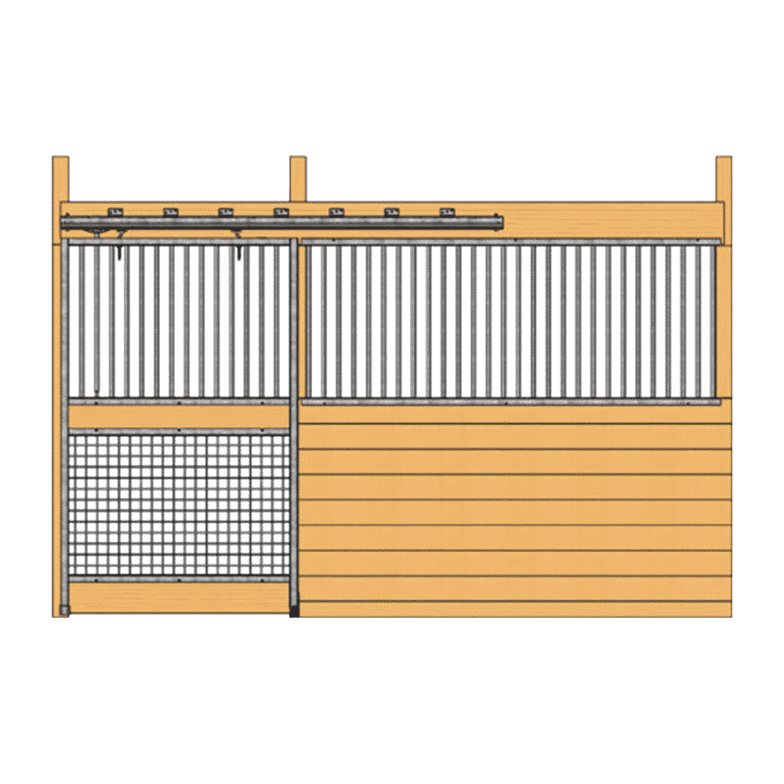

Cambridge Stall Front with Grill Top Mesh Bottom Door

SKU: N/A Category: Tag:

The Cambridge stall front is further enhanced with a welded grill top mesh bottom door. The grill top helps to keep inquisitive horses safely stalled while the 2” x 2” mesh bottom provides ultimate security for both large and small animals. Great for foaling while providing ample ventilation and visualization.

[yith_wcwl_add_to_wishlist]

Cambridge fully welded stall with added grill top mesh bottom door. Beautiful sleek black powder coat or durable hot dip galvanized finish. Safer interior welded grillwork bars with closer bar spacing, fully welded doors and many customization options. One touch tear drop track and trolley, rather than round, is self cleaning and self aligning. The unique profile has a square side allowing the track to be firmly and squarely mounted. Rugged nylon wheels have sealed and greased bearings to ensure smooth operation for years. Faster and easier installation makes Cambridge a favorite builder’s choice. All hardware is included, you supply the wood to save with freight costs.

Length: 10′ or 12′ (*Custom sizes available upon request.)

Finish: Hot-Dip Galvanized or Powder-Coated Black

*RAMM has the industry’s premier hot-dip galvanization for horse stalls.

Channel Gauge: 14-gauge

Bar Gauge: 16-gauge

Mesh Bottom: 1/4″ Mesh Steel with 2″ x 2″ Square Holes

Bar Spacing: 3¼”

Bar Diameter: ⅞”

Bar Height (Inside-to-Inside): 33″

Door Width: 51½”

Door Opening (Standard): 48″

Door Height (Finished): 81⅜”

Floor to Top of Header: 90¼”

Floor to Bottom of Bars: 47¾”

Latch Type: Up Latch

Post: Post Bumper

Guide: Stay Roller

Track: 8′ Premium Track

Wood Direction: Horizontal (*Note: Wood lumber is not included with the kit.)

Kit Includes:

  • 1- Stall Door Kit
  • 1- Grillwork Section
  • 1- 8′ Premium Track
  • 1- Premium Track Door Hardware Kit (includes: track brackets, trolleys, trolley bolts, stay roller, post bumper, and hardware)
  • Stainless Steel Receiver
  • Spring-Loaded Bar Latch
  • Stall Screws

Warranty: 1-Year Warranty on Workmanship.

*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 2 x 6” tongue and groove boards as wood supplier measurements can vary.

Made in the USA.
