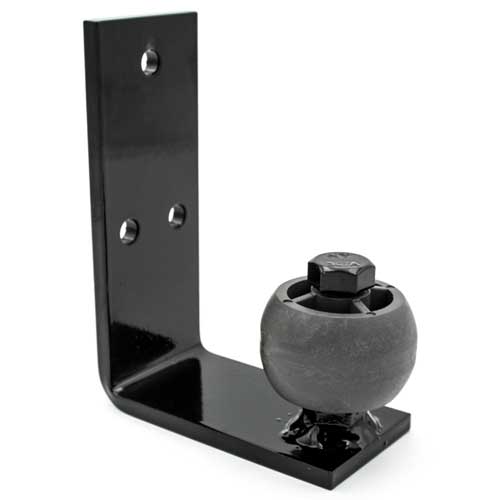

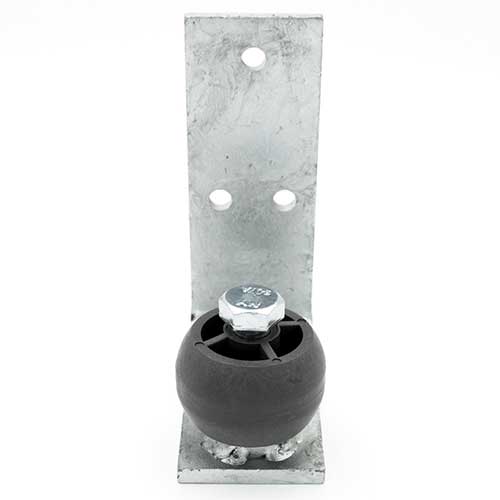

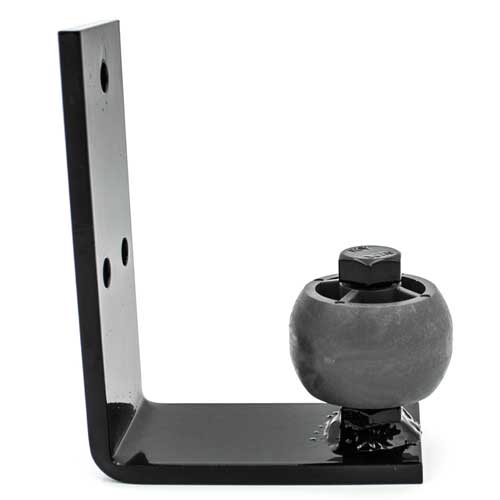

Stay Roller
Ensure smooth and safe operation of your sliding barn doors with this heavy-duty Stall Door Stay Roller. Designed to keep sliding doors up to 1½” thick perfectly aligned with their track, it prevents doors from being pushed or kicked out by your horses. Featuring a non-marking plastic guide wheel, it is compatible with Cambridge, Derby, Essex, and Oxford stall systems. Available in your choice of Galvalume or Powder-Coated Black finishes.
Proudly Made in the USA. No imported horse stalls—just American craftsmanship you can trust.

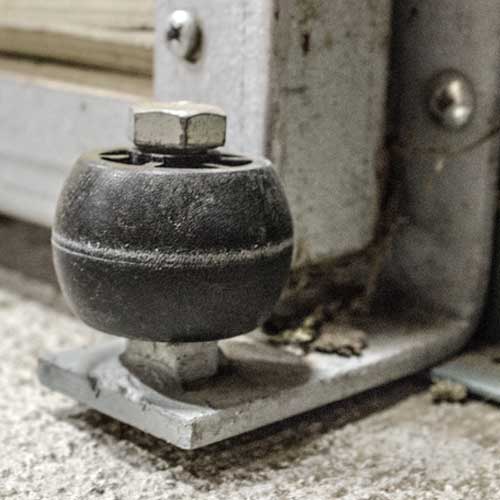

A heavy, swinging sliding door is a hazard in any barn. The stall door stay roller is a vital piece of hardware designed to guide your horse stall door smoothly along its track every time you open or close it. By securely holding the bottom of the door in place, it prevents the door from swinging outward or being kicked out by an active horse, ensuring both animal safety and the longevity of your hardware.
Key Features & Benefits
-
Perfect Alignment: Keeps sliding stall doors up to 1½” thick safely aligned with their upper track.
-
Safety First: Prevents horses from pushing or kicking the bottom of the stall door outward.
-
System Compatibility: Designed for seamless use with Cambridge, Derby, Essex, and Oxford horse stall systems.
-
Floor Versatility: An excellent hardware solution for barns featuring dirt, stone dust, or unfinished flooring.
-
Custom Finishes: Choose between a sleek Powder-Coated Black or a classic, metallic Galvalume finish to match your barn’s aesthetic.
Quantity: Sold Individually
Dimensions: 4″ L x 5-3/8″ H x 2″ W
Door Compatibility: Accommodates doors up to 1-1/2″ thick.
Below are links to PDFs of the installation instructions for all of the compatible horse stalls, which you can save and print for referencing:
- Cambridge Installation Instructions
- Derby Installation Instructions
- Essex Installation Instructions
- Oxford Installation Instructions

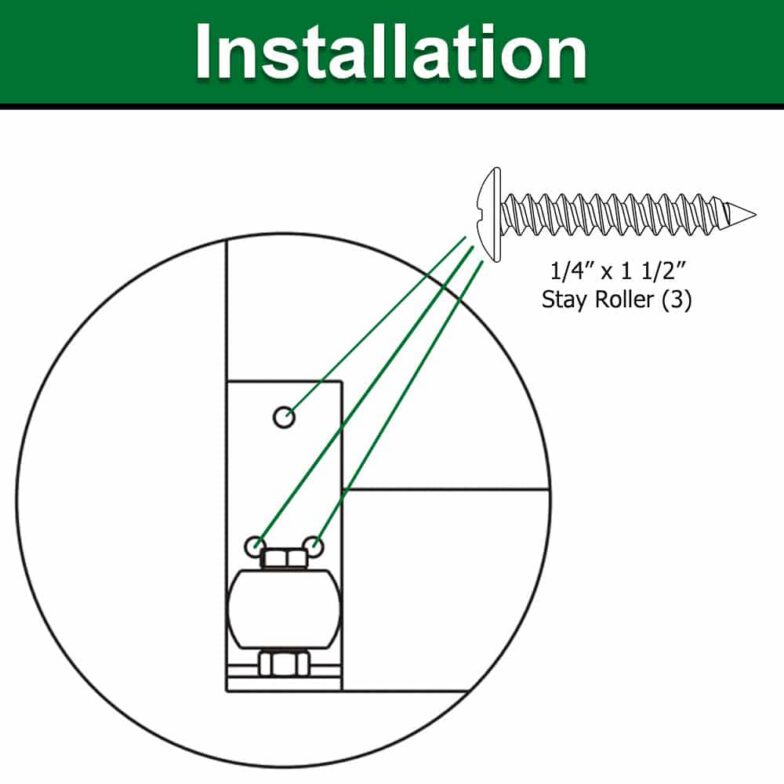

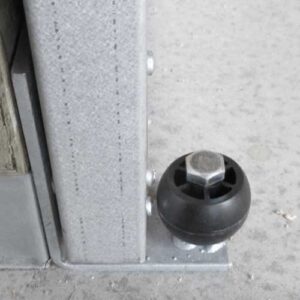

Installation: Set stay roller down [against the floor] aligned with the edge of the door opening. The stay roller is then attached to the wall behind the door and slides under it. Each stay roller requires three (3) 1/4” x 1-1/2” stay roller screws for installation, but are sold separately.
Price range: $23.37 through $40.55
