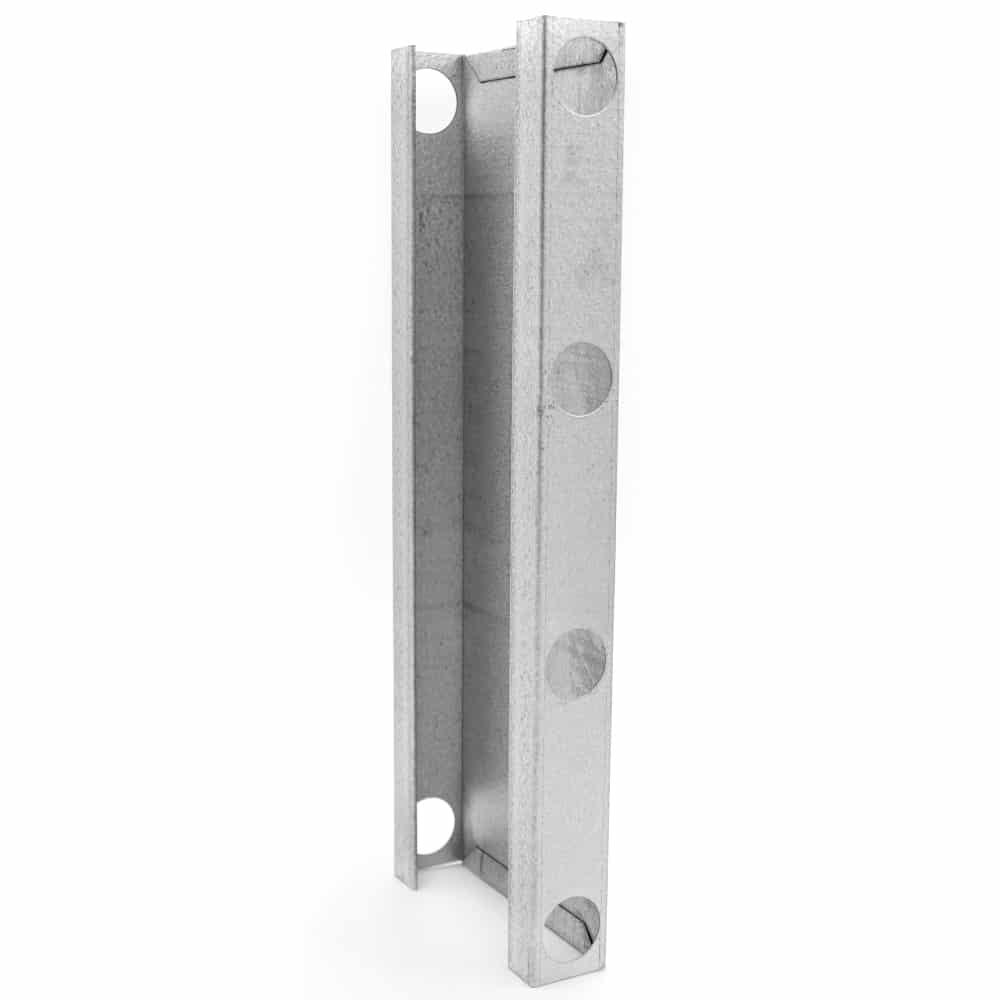

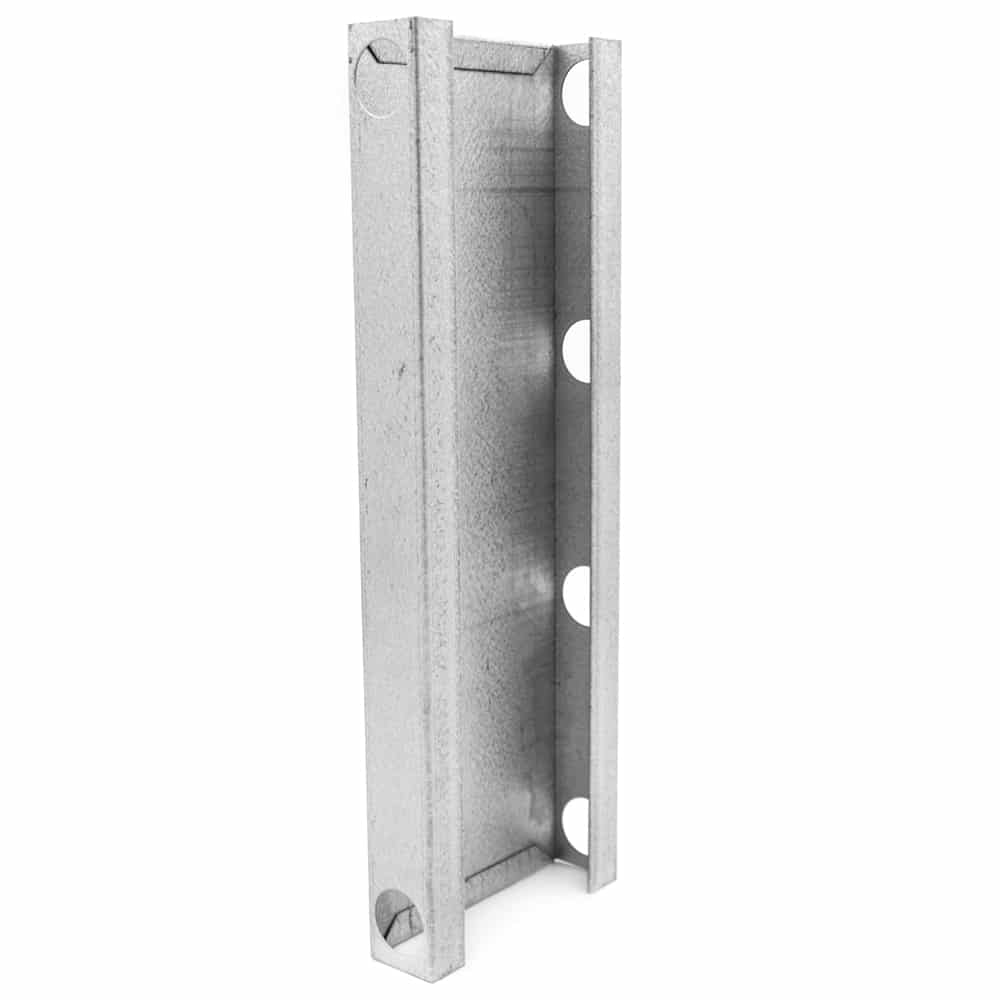

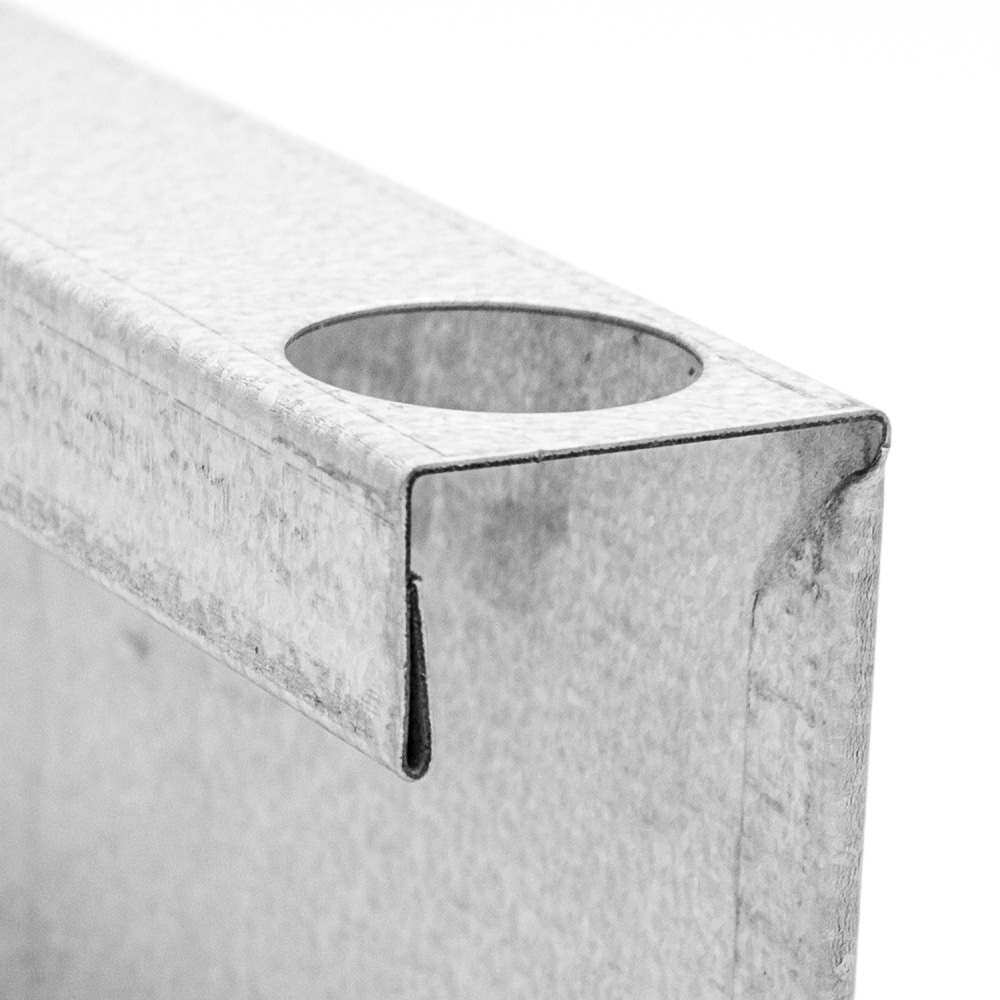

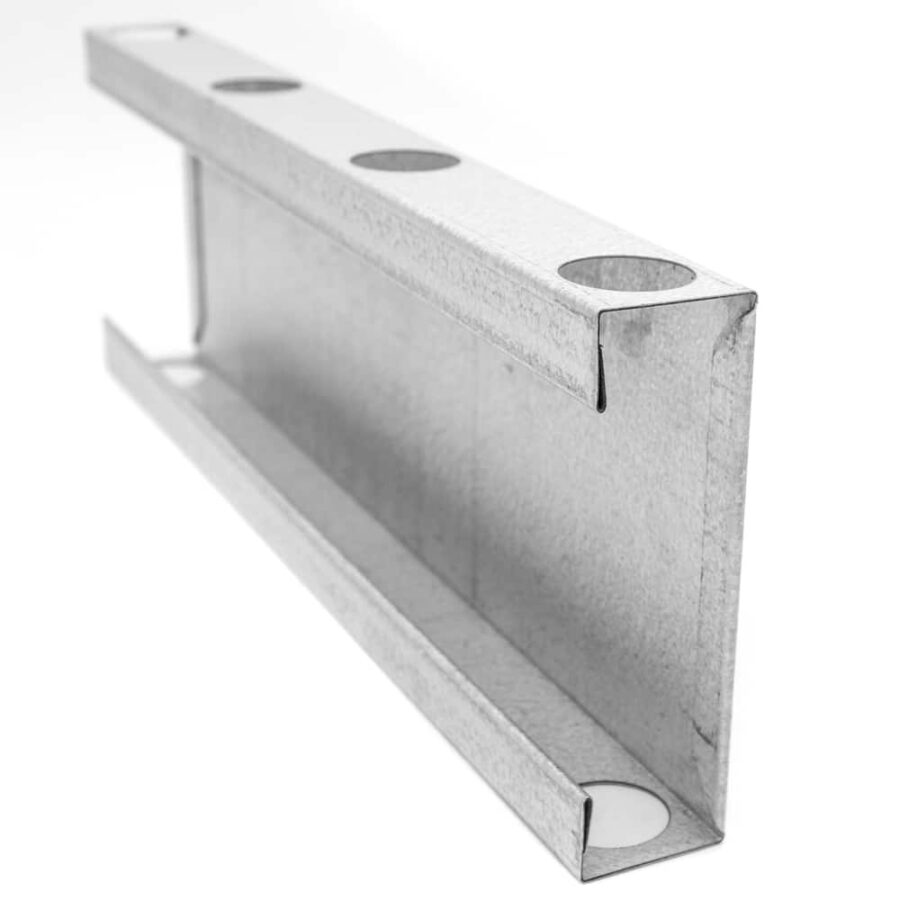

Derby Feed Opening Plate
The Derby feed opening plate is the most essential part of the Derby feed opening kit. It is economical and makes feeding time more efficient. It features a galvalume finish, adding both functionality and beauty to your Derby stall fronts! *Note: Hardware is not included.
Upgrade your barn’s feeding system with the Derby Feed Opening Plate, the most essential component of the complete Derby Feed Opening Kit. Designed to make feeding time faster and more efficient, this economical plate is a must-have for busy horse owners. Finished with a premium galvalume coating, it delivers long-lasting durability while adding a polished, beautiful aesthetic to your Derby stall fronts.
Please Note: Mounting hardware is not included with this plate.
Finish: Galvalume
Height: 12″
Opening Height: Varies (We recommend 9″)
Width: 12″
Opening Width: 11″
Depth: 1.5″
Compatibility: Derby Stalls
Includes: 1 – Derby Feed Opening (hardware is not included)
Below is a link to the installation instructions for our Derby horse stalls in a PDF format, which you can save and print for future reference:
Derby Stall Installation Instructions
Installation: Decide where the feed opening is going to be located. Cut two stall grill bars to the desired length (bars cut to 22” will give you approximately a 12” opening). Slide the feed opening plate over the two outer bars of the opening. Let the feed opening plate rest on the bottom grill channel. Insert the two cut stall grill bars in the top grill channel and slide the feed opening plate up – until it is tight with the two cut bars. Four hex head self-drillers are required to hold the feed opening plate in place through holes in the feed opening plate.
$23.05
In Stock
