Derby Feed Opening Kit
The Derby stall feed opening kit allows feeding from outside the stall. It is convenient when having others help with chores. It features a galvalume finish for long-lasting use.
Compatibility: Derby Stalls
Proudly Made in the USA. No imported horse stalls—just American craftsmanship you can trust.

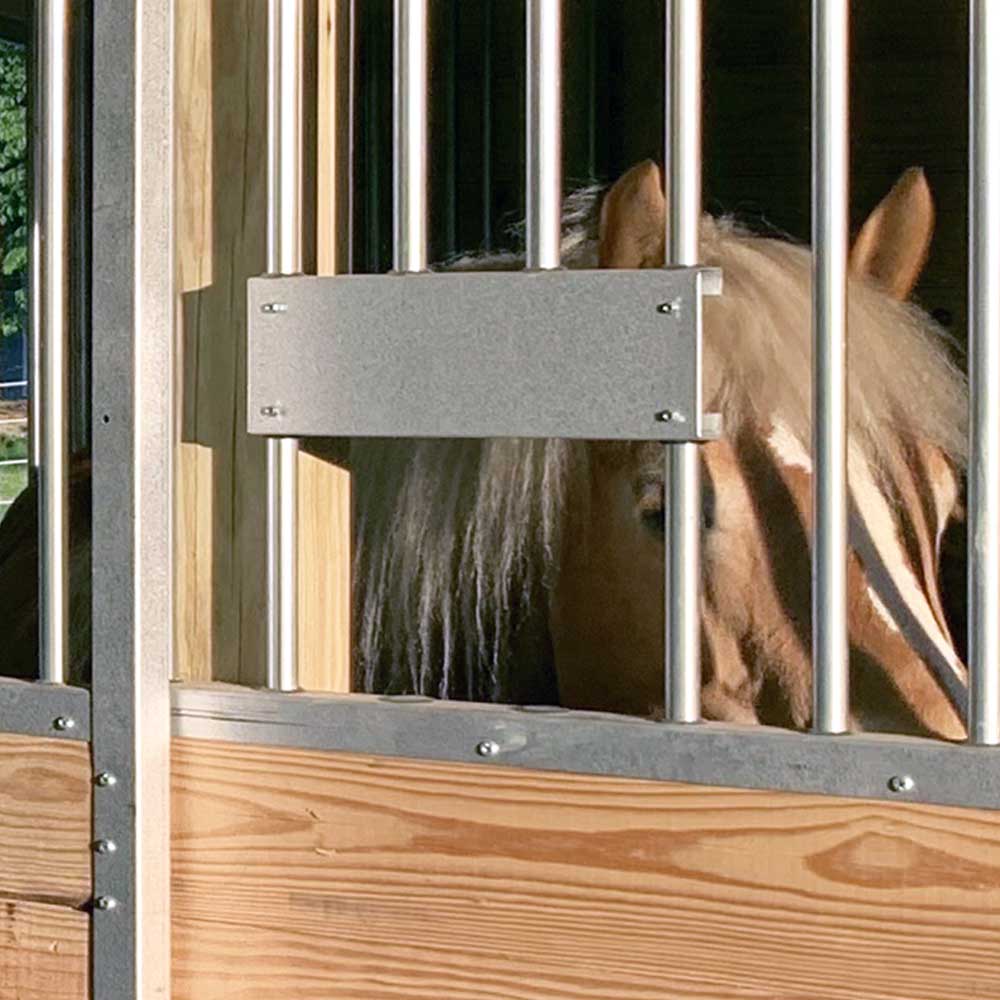

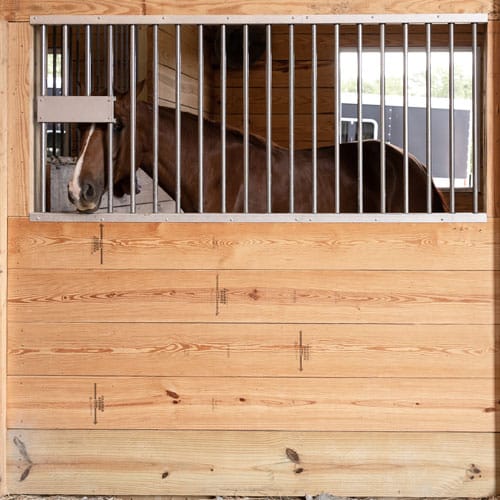

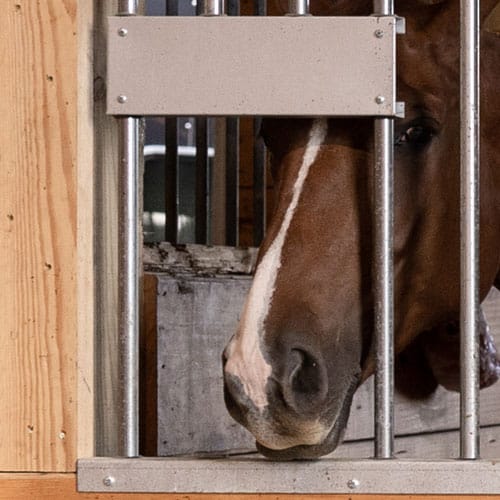

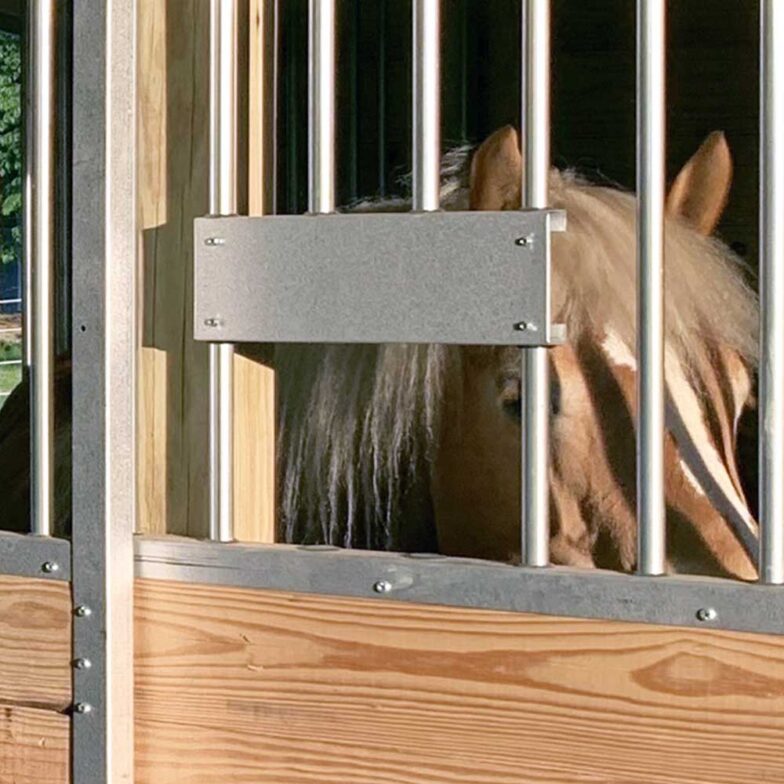

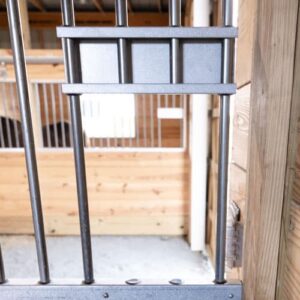

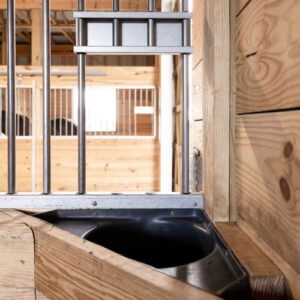

Make barn chores easier and safer with the Derby Stall Feed Opening Kit. This convenient hardware kit allows you to feed your horses directly from outside the stall, saving you time and hassle. It is the perfect solution for busy barn owners, or when you have farm sitters and hired hands helping with daily feeding routines. Built to withstand tough barn environments, it features a heavy-duty galvalume finish to guarantee rust-resistant, long-lasting use.
Finish: Galvalume
Height: 12″
Opening Height: Varies (We recommend 9″)
Width: 12″
Opening Width: 11″
Depth: 1.5″
Compatibility: Derby Stalls
Includes:
- (1) Derby Feed Opening Plate, Galvalume
- (4) #8-18 x 3/4″ Hex Head Self-Driller Screw for Feed Opening, Zinc-Plated
- (2) 7/8″ Bar Grommet, Black Plastic

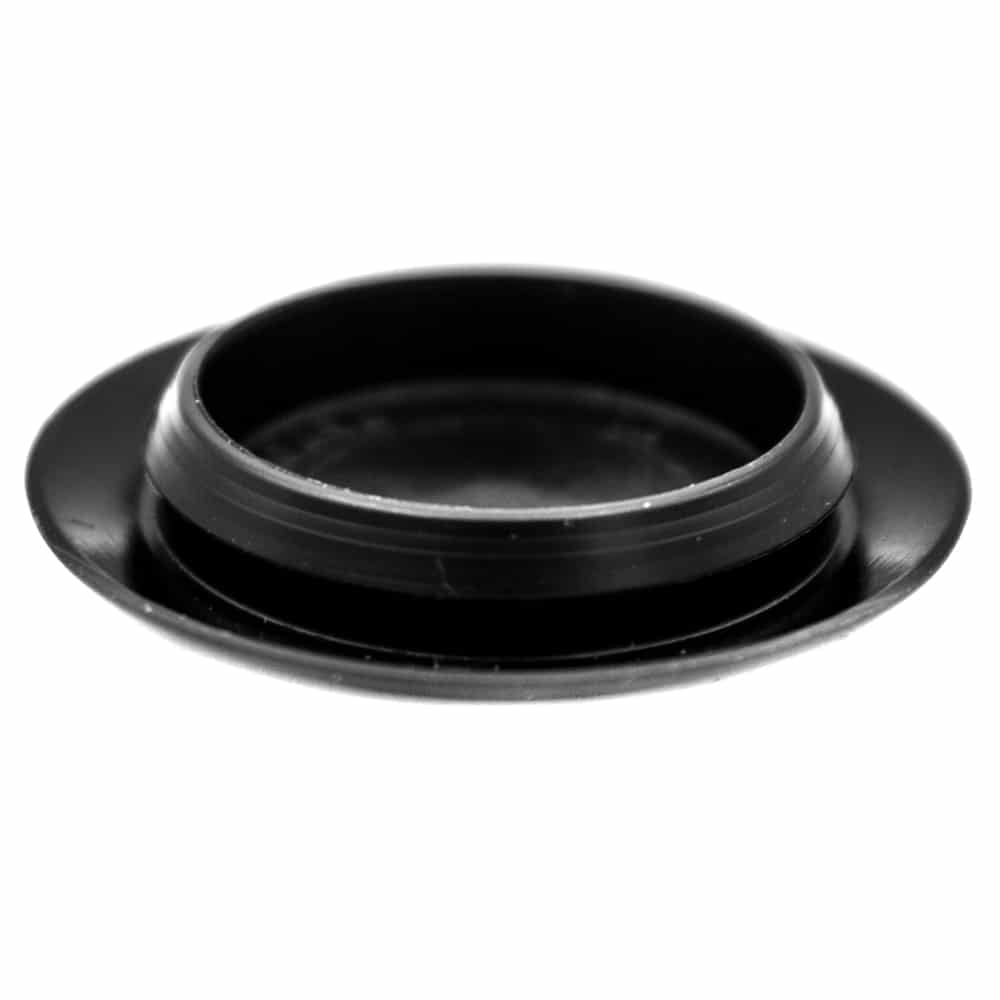

- (2) 1-3/8″ Feed Opening Bar Hole Plug, Black Plastic
Not Included: Horse Stall Grill Bars
Below is a link to the installation instructions for our Derby horse stalls in a PDF format, which you can save and print for future reference:
Derby Stall Installation Instructions

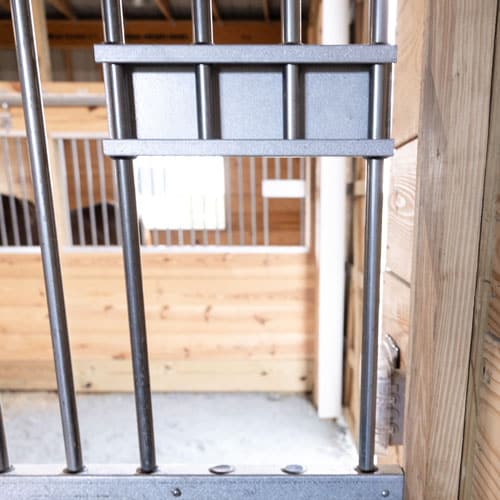

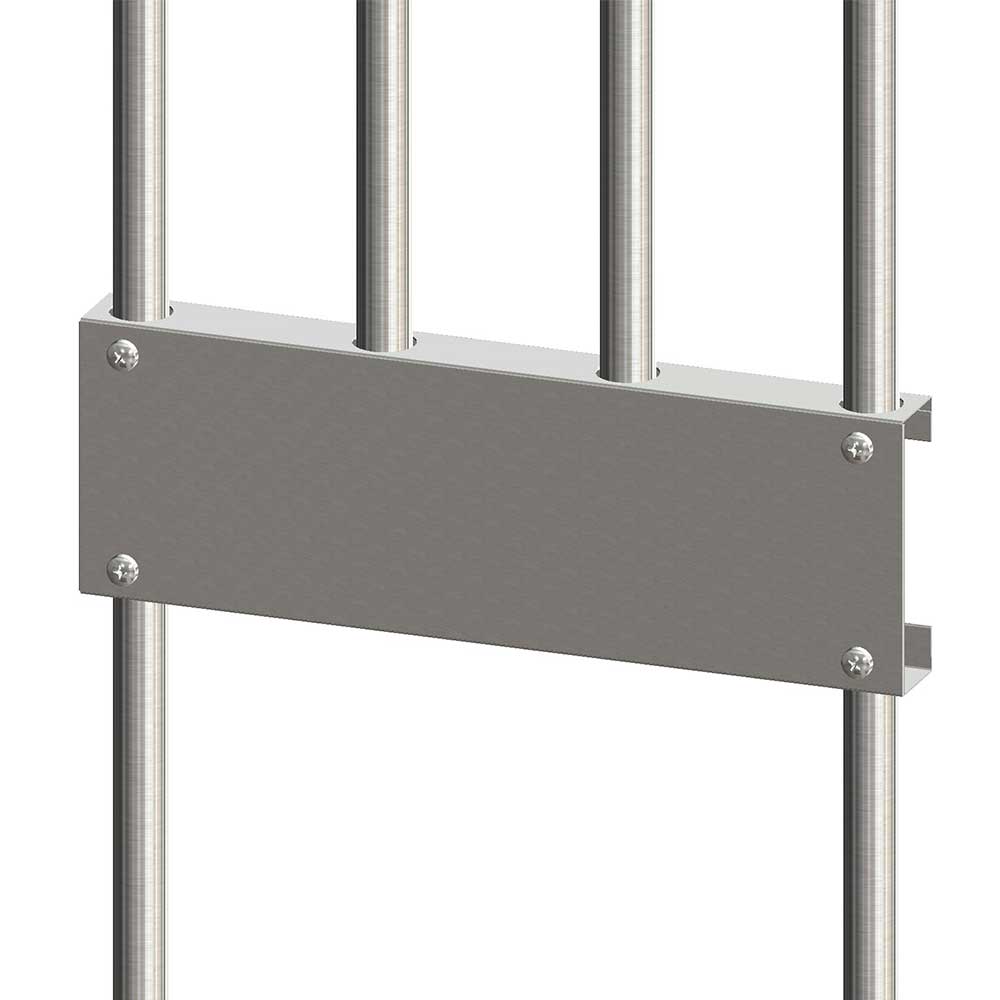

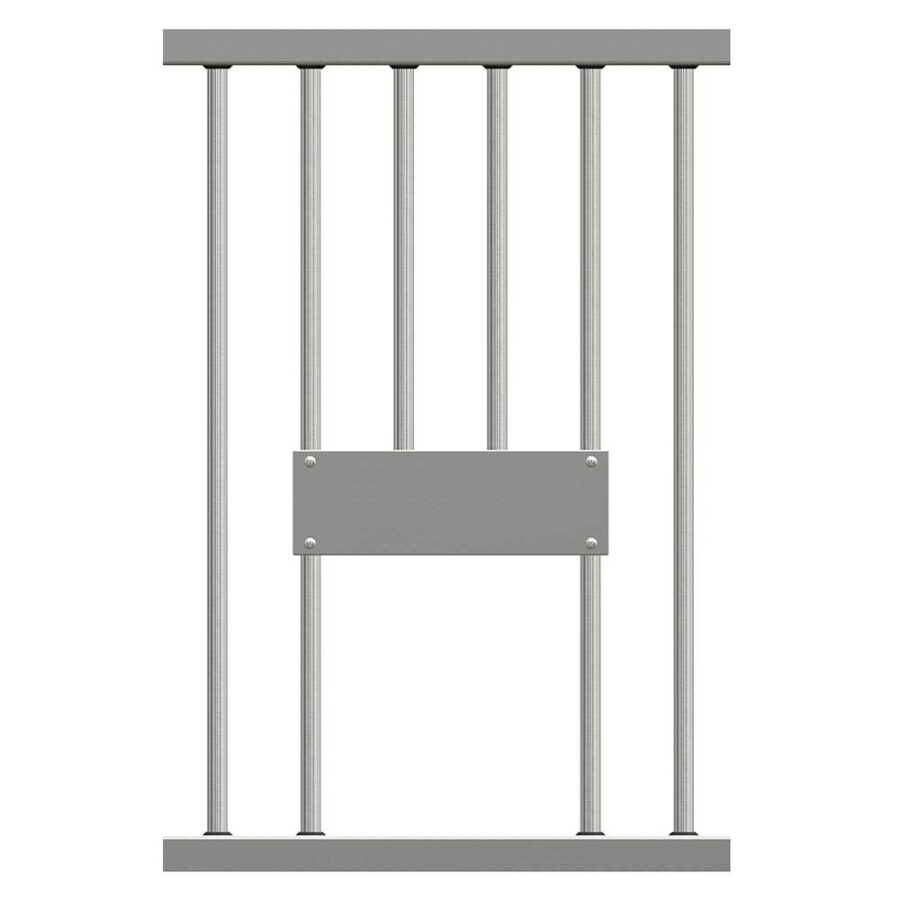

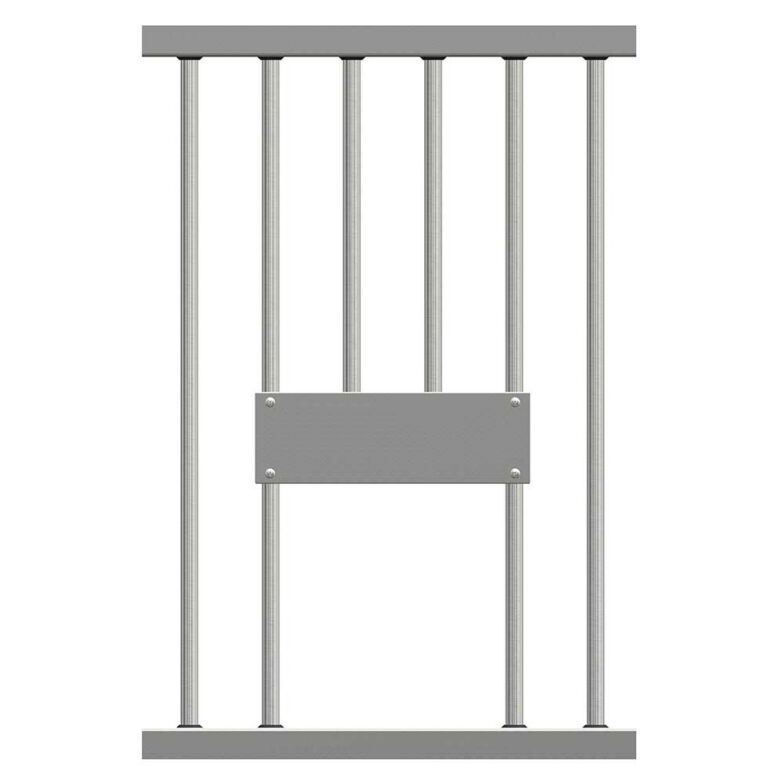

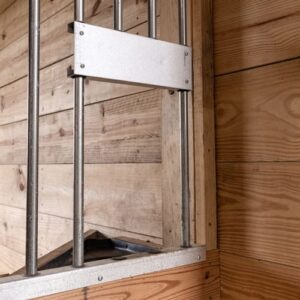

Installation: Decide where the feed opening is going to be located. Cut two stall grill bars to the desired length (bars cut to 22” will give you approximately a 12” opening). Slide the feed opening plate over the two outer bars of the opening. Let the feed opening plate rest on the bottom grill channel. Insert the two cut stall grill bars in the top grill channel and slide the feed opening plate up – until it is tight with the two cut bars. Use the four supplied hex head self-drillers to hold the feed opening plate in place through holes in the feed opening plate.
$23.65
In Stock
