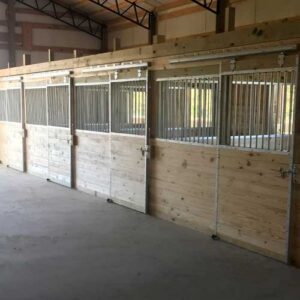

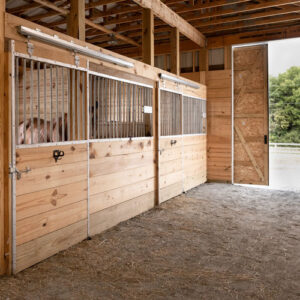

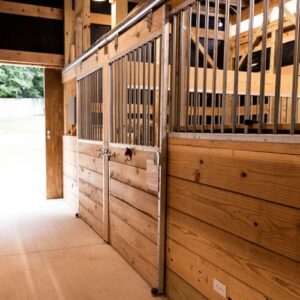

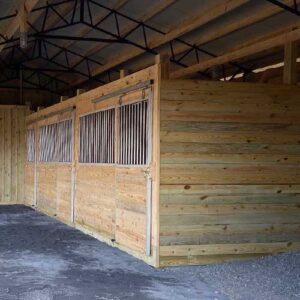

Derby Stall Front Kit
The Derby Stall Front Kit is an economical choice for horse stalls, without compromising quality. Impressive strength and durability. The stall kit offers a faster installation for ‘last minute’ incoming horses or permanent horse stalling. Weekend enthusiasts appreciate the ease of installation. An affordable choice.
- Most used stall for self installs
- Faster build – great for last minute foaling stall
- Quicker build for incoming horses
Price range: $538.17 through $633.88
[yith_wcwl_add_to_wishlist]
Derby stall front kit offers superior quality at a practical price. Made of 14-gauge steel , they have a galvalume finish for rust protection. Grill bars snug inside rubber grommets to reduce noise in your barn. The premium round track system makes the door slide easier with a tear-drop track that is self cleaning.. Install in new or existing barns with support posts.
The kit includes the door, stall front and a premium track hardware assembly kit. Grill bars are 7/8″, 16-gauge, spaced 4″ on-center. All hardware is included with each stall front package and detailed instructions are included for a quick and easy installation.
Please note: Support posts and lumber are not included with this kit. Recommendations are included in our detailed installation instructions.Â
Length: 10′
Finish: Galvalume
Channel Gauge: 14-gauge
Bar Gauge: 16-gauge
Bar Spacing: 4″ On-Center
Bar Diameter: 7/8″
Bar Height (Inside-to-Inside): 33″
Door Width: 51-1/4″
Door Opening Width (Standard): 48″
Door Height (Finished): 86-3/4″
Floor to Top of Header (Using Board Per Instructions): 96-1/2″
Floor to Bottom of Bars: 47-3/4″
Latch Type: Slide Bolt Latch
Guide: Stay Roller
Track: 8′ Premium Track
Lumber Direction: Horizontal (*Note: Lumber is not included in the kit.)
Warranty: 1-Year Material Warranty
Kit Includes:
- 1 – Derby Door Premium Track Kit
- 1 – Derby Grill Top Door Kit
- 1 – 48″ Derby Grill Section Kit
- 1 – 24″ Derby Grill Section Kit
All material is made in North America with high-quality North American steel.
Below is a link to the installation instructions for our Derby horse stalls in a PDF format, which you can save and print for future reference:
