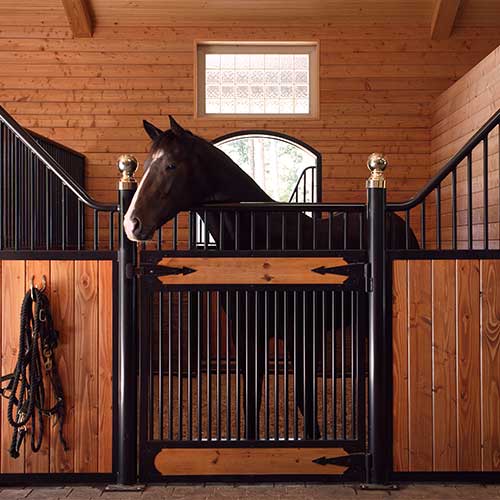

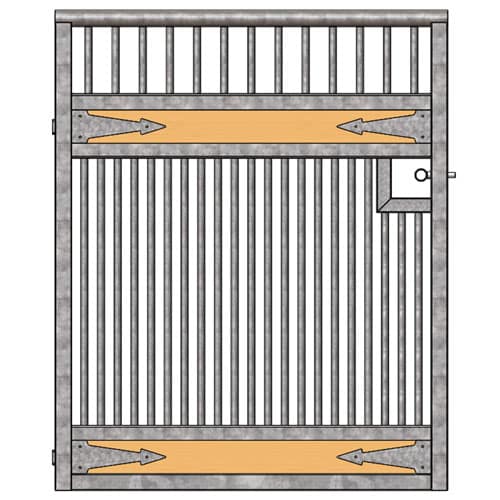

Tuscany Grilled Stall Door – Arrows
Combine the look of an open airy Tuscany door with wood inserts and arrow accents, top-and-bottom. The bottom wood insert acts as a guard to keep bedding shavings in your stall. This accent door adds to the beautiful Tuscany stall style with durable strength.
[yith_wcwl_add_to_wishlist]
Combine the look of an open airy Tuscany door with wood inserts and arrow accents., both top-and-bottom. Closer bottom door grillwork spacing for safer stalling. Plunger style closure.
Finish: Hot-Dipped Galvanized or Powder Coated
Bar Gauge: 16-gauge
Full Grill Door Bottom Bars: 14-gauge
Channel Gauge: 12-gauge
Post Gauge: 10-gauge
Top Bar Spacing: 3 1/4 ” On-Center
Bottom Bar Spacing: 2″ On-Center
Bar Diameter: 7/8″
Bar Height (Inside-to-Inside): Tallest – 34″, Shortest – 8″
Door Width: 47″
Door Opening Width (Standard): 48″
Door Height (Finished): 57 1/2″
Door Post Height: 62″
Floor to Bottom of Bars: 48″
Latch Type: Plunger
Post/Wall: *Swing Door
Guide: *Swing Door
Wood Direction: Vertical *Note: You supply the wood to save with freight costs.
Shipping: This item ships on a semi-truck via an LTL freight carrier; accurate shipping costs cannot be calculated on our ecommerce site. Please contact one of our account managers at: 800-434-6296 for shipping details. For more information on LTL shipping requirements follow the links below:
Production Time: Please allow 4-6 weeks lead time for this stall system.
Warranty: 1-Year Warranty on Workmanship.
Made in the USA.
Below are links to the installation instructions for the Tuscany horse stall series in PDF format, which you can save and print for future reference:
