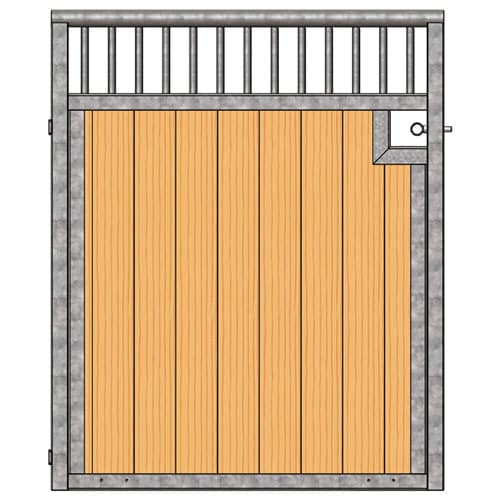

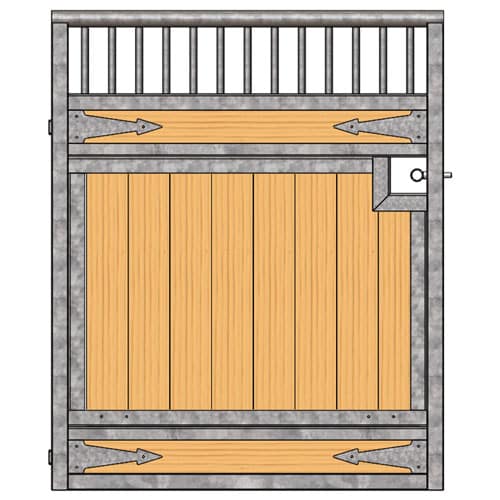

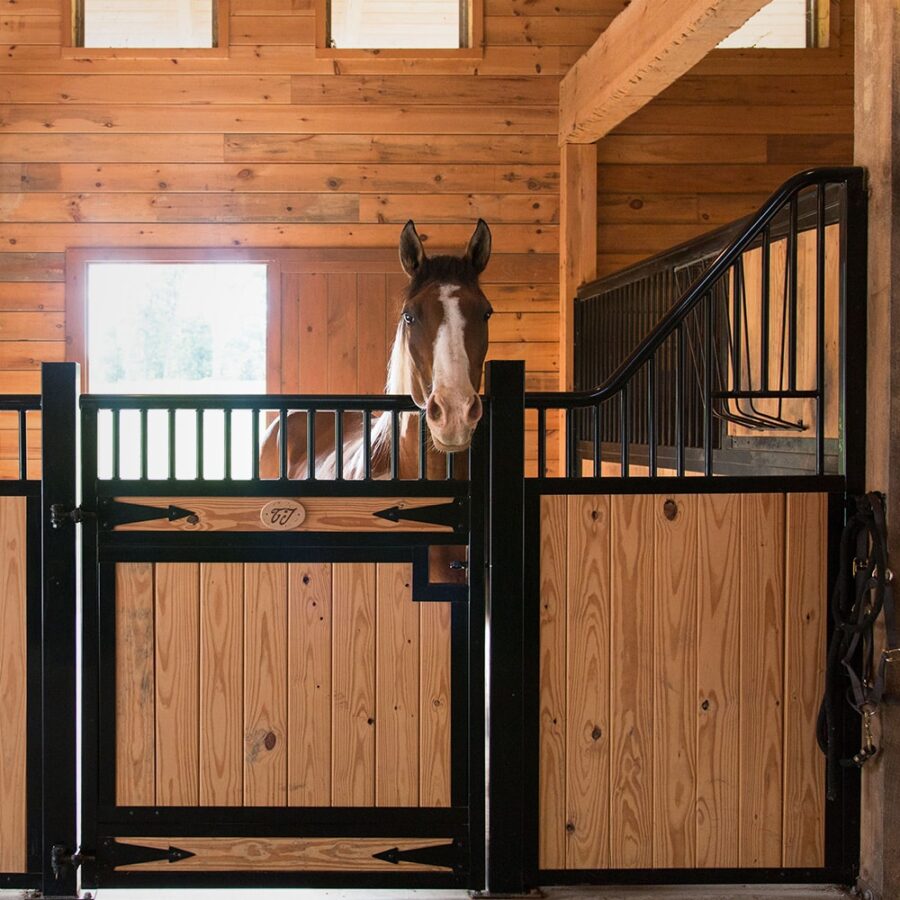

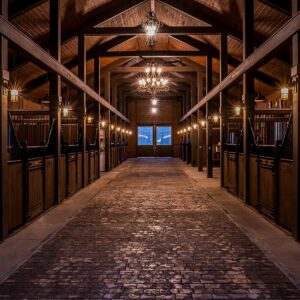

Tuscany Wood Stall Door
Tuscany doors have a fully welded construction and can be fitted with 2″ x 6″ tongue and groove . Durable and beautiful, the Tuscany wood door comes with a spring loaded pin latch and heavy-duty 2-way adjustable hinges.
[yith_wcwl_add_to_wishlist]
Tuscany doors have a fully welded construction and can be fitted with 2″ x 6″ tongue and groove wood. The Tuscany wood door comes with a spring loaded pin latch and heavy-duty 2-way adjustable hinges.
Finish: Hot-Dipped Galvanized or Powder Coated
Bar Gauge: 16-gauge
Full Grill Door Bottom Bars: 14-gauge
Channel Gauge: 12-gauge
Post Gauge: 10-gauge
Bar Spacing: 3 1/4″ On-Center

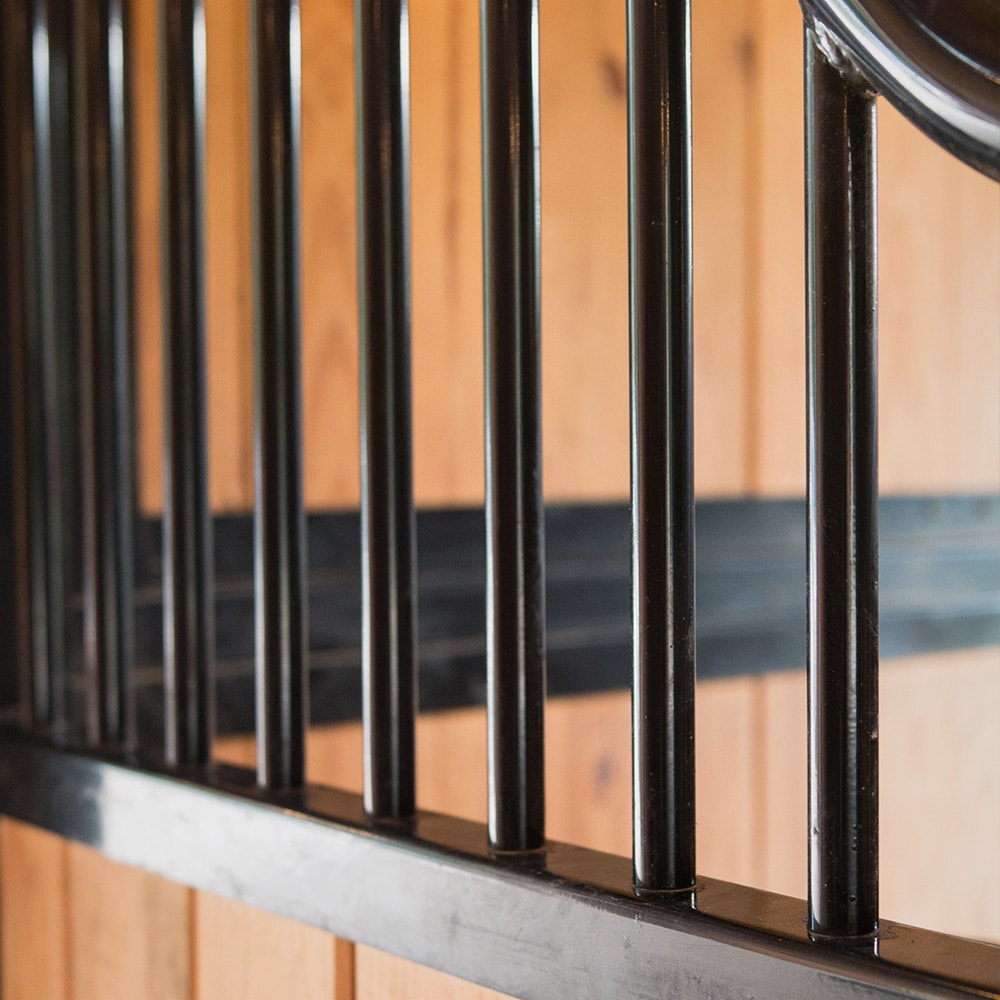

Bar Diameter: 7/8″
Bar Height (Inside-to-Inside): Tallest – 34″, Shortest – 8″
Door Width: 47″
Door Opening Width (Standard): 48″
Door Height (Finished): 57 1/2″
Door Post Height: 62″
Floor to Bottom of Bars: 48 3/4″
Latch Type: Plunger
Post/Wall: *Swing Door
Guide: *Swing Door
Wood Direction: Vertical *Note: You supply the wood to save on freight costs. Ask about HDPE plastic lumber and color choices.
Production Time: Please allow 4-6 weeks lead time for this stall system.
Warranty: 1-Year Warranty on Workmanship.
Made in the USA.
Below are links to the installation instructions for the Tuscany horse stall series in PDF format, which you can save and print for future reference:
