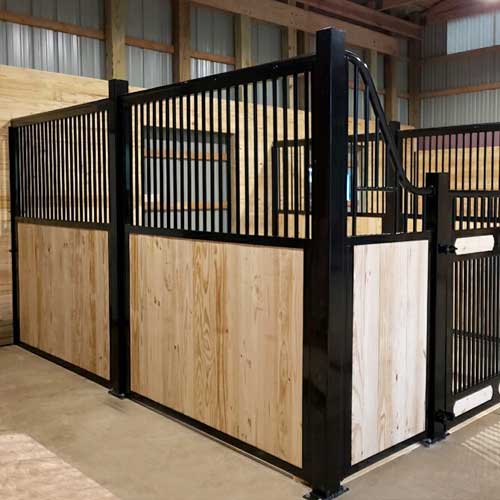

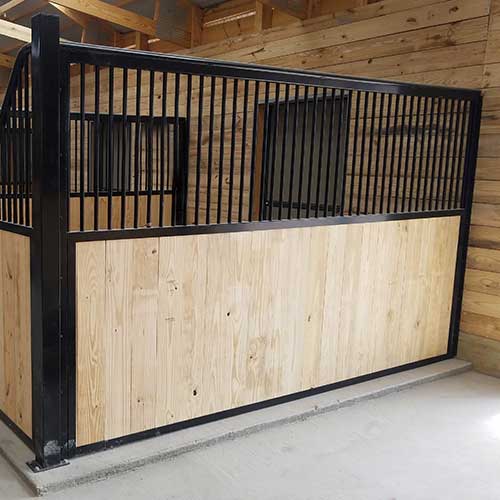

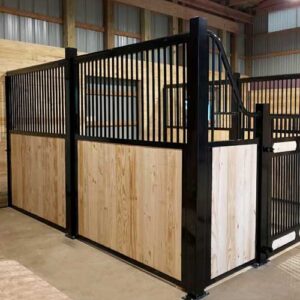

Tuscany Stall Front with Feed Opening
Tuscany horse stall fronts are European inspired. Open and elegant stalls, the Tuscany’s fabrication does not compromise on durability. Beautiful curved fronts allow you to see your horses while your horses get to socialize and have better ventilation. Choose options for your swing door with a plunger style closure. Added feed opening allows you to feed grain and supplements easily from your aisle. Feed door option available. Hot dipped galvanized and custom finishes. Ask about optional finials for door post tops. Custom built stalls for each barn.
[yith_wcwl_add_to_wishlist]
Fully welded front wings and swinging door. Plunger style closure is enclosed to discourage busy horses from curiosity. 2″ X 6″ tongue and grove board slides in channeling for ease of installation. The added feed opening, for connivance, is welded into the stall frame. Door and end posts required. Ask one of our knowledgable account managers about proper installation. Ask about optional finials for door post tops. custom colors available.
Length: 10′ or 12′ (Custom sizes available upon request.)
Finish: Powder Coated or Hot-Dip Galvanized
*RAMM has the industry’s premier hot-dip galvanization for horse stalls.
Channel Gauge: 12-gauge
Post Gauge: 10-gauge
Bar Gauge: 16-gauge
Full Grill Door Bottom Bars: 14-gauge
Bar Spacing: 3 1/4″
Bar Diameter: 7/8″
Bar Height (Inside-to-Inside): Tallest – 34″, Shortest – 8″
Door Width: 47″
Door Opening Width (Standard): 48″
Door Height (Finished): 57 1/2″
Door Post Height: 62″
Floor to Top of Header: Front – 84 3/4″, Post – 88 1/2″
Floor to Bottom of Bars: 48 3/4″
Latch Type: Plunger
<!– Post: *Swing Door –> <!– Guide: *Swing Door –>
Wood Direction: Vertical *Note: You supply the wood to save on freight costs.
Shipping: This item ships via LTL freight carrier; accurate shipping costs cannot be calculated on pour ecommerece site. Please contact one of our account managers at 800-434-6296 for shipping details.
Production Time: Please allow 4-6 weeks lead time for this stall system.
Warranty: 1-Year Warranty on Workmanship.
Made in the USA.
Below are links to the installation instructions for the Tuscany horse stall series in PDF format, which you can save and print for future reference:
