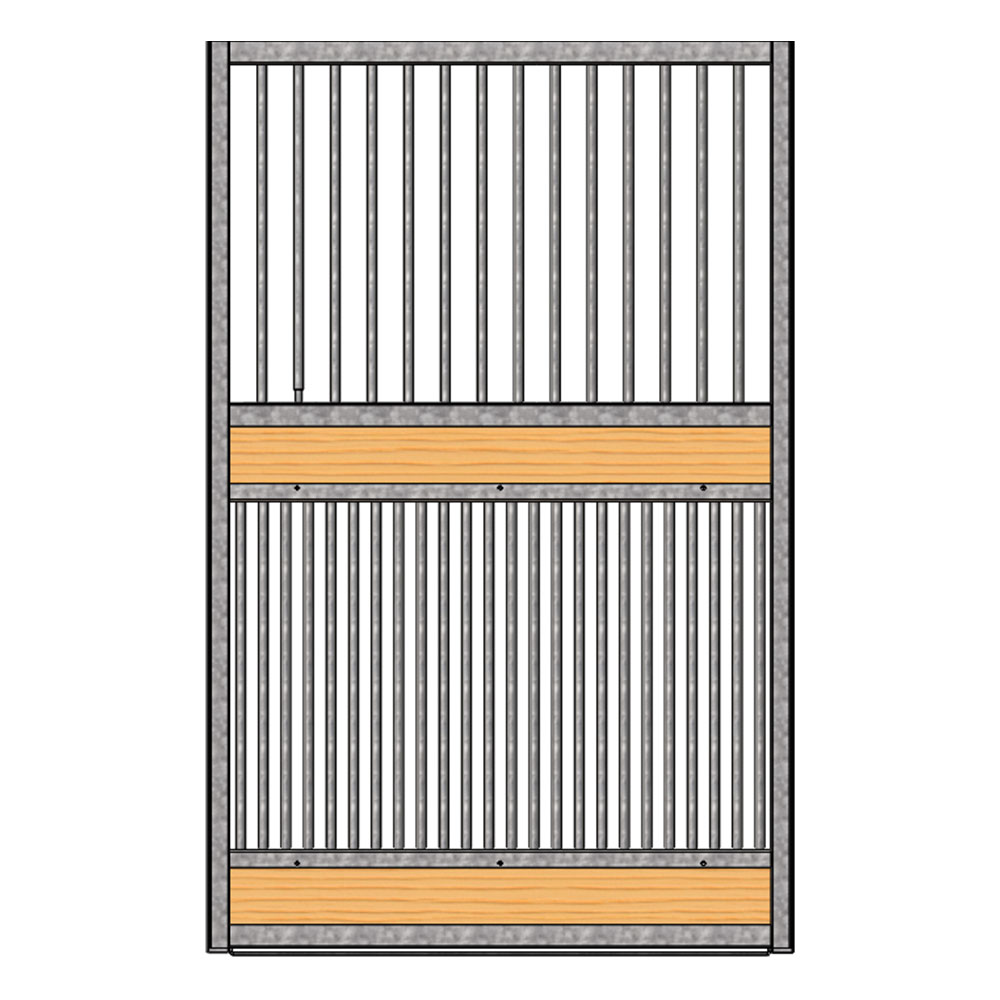

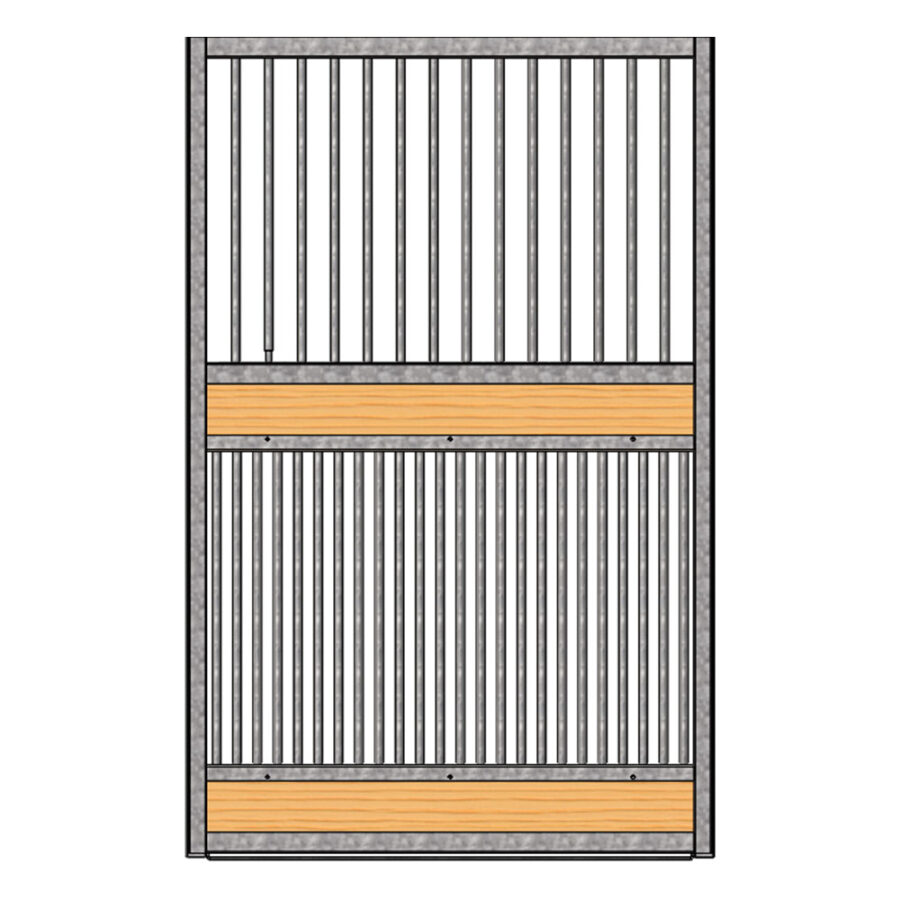

The Dublin full grill door allows full ventilation. The shavings guard at the bottom of the door helps to keep the aisle way clear of bedding . Dublin stalls are constructed of hot-dip galvanized steel 14-gauge frame and features hidden interior welds. offering better rust protection.

Finish: Hot-Dip Galvanized *RAMM has the industry’s premier hot-dip galvanization for horse stalls.

Channel Gauge: 14-gauge

Frame Gauge: 2″ x 2″ 14-gauge

Door Gauge: 1-3/4″ x 1-3/4″ 14-gauge

Bar Gauge: 16-gauge

Full Grill Door Bottom Bars Gauge: 14-gauge

Bar Spacing: 3-1/4″

Bar Diameter: 7/8″

Bar Height: 33″

Door Width: 51-1/2″

Door Opening Width (Standard): 48″

Door Height: 80-3/8″

Floor to Top of Header: Top of Front = 84″, Top of Front with Track Piece = 85-3/8″

Floor to Bottom of Bars: 48-5/8″

Latch Type: Up Latch

Post: Door Stop (*Varies by layout.)

Guide: Door Stay

Track: 8′ Premium Track

Wood Direction: Vertical *Note: You supply the lumber to save on freight costs.

Shipping: This item shops voa LTL freight carrier, accurate shippiing costs cannot be calculated on our ecommerce site Please contact one of our account managers at 1-800 434-6296 for shipping details. For more information on LTL shipping requirements follow the links below.

Warranty: 1-Year Warranty on Workmanship.

Made in the USA.

Below are links to installation instructions and literature regarding Dublin horse stalls. They are in a PDF format, which you can save and print for future reference:

Dublin Stall Installation Instructions

Portable Panel Stall Installation Instructions – Square Track System

The Appearance of Hot-Dip Galvanized Coating
