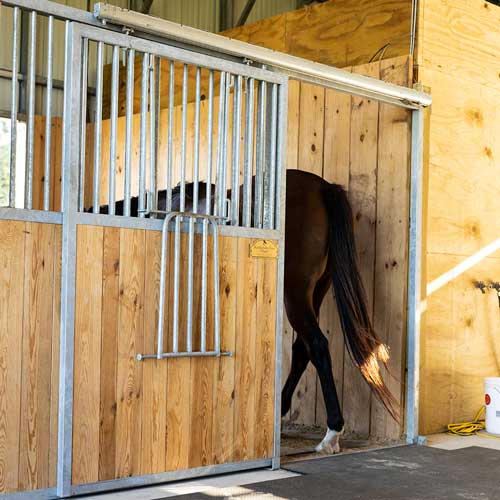

Dublin Stall Front with Feed Opening
Dublin stall fronts are an excellent portable or permanent horse stall solution. Constructed of hot-dip galvanized steel, for rust protection and have hidden interior welds to avoid burrs. Extremely versatile and solid for open span barns. The feed opening allows you to grain and supplement horses from your aisle. A great solution for open span barns or arena stalls – temporary to permeant stalling.
- Heavy duty
- Easier to install with connectors
- Fully welded frames

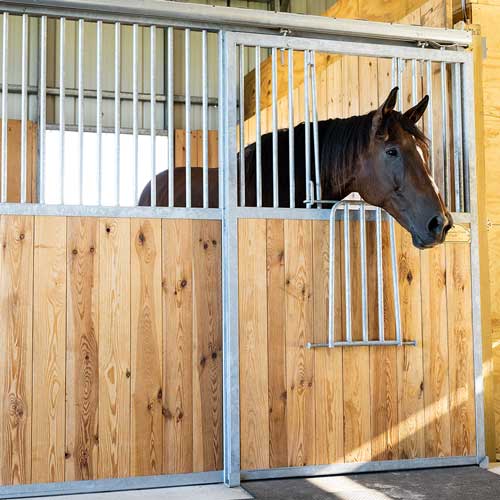

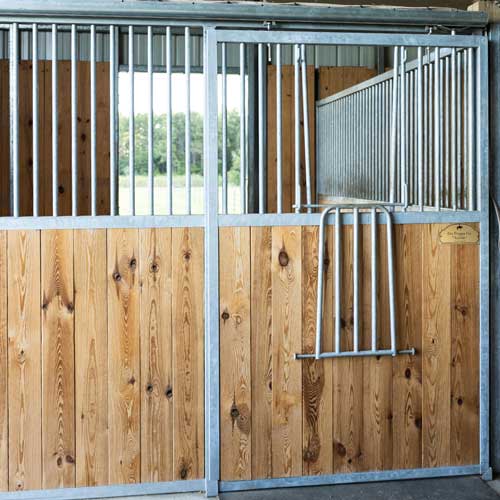

- Front includes feed opwning
Dublin stall fronts are an excellent portable or permanent horse stall solution. This horse stall allows for good ventilation and socialization. One touch tear drop track and trolley, rather than round, is self cleaning. Dublin horse stalls are hot-dip galvanized steel for rust protection and feature hidden interior welds without burrs.
Length: 10′ or 12′ (Custom sizes available upon request.)
Finish: Hot-Dip Galvanized
Channel Gauge: 14-gauge
Frame Gauge: 2″ x 2″ 14-gauge
Door Gauge: 1-3/4″ x 1-3/4″ 14-gauge
Bar Gauge: 16-gauge
Full Grill Door Bottom Bars Gauge: 14-gauge
Bar Spacing: 3-1/4″
Bar Diameter: 7/8″
Bar Height: 33″
Door Width: 51-1/2″
Door Opening Width (Standard): 48″
Door Height: 80-3/8″
Floor to Top of Header: Top of Front = 84″, Top of Front with Track Piece = 85-3/8″
Floor to Bottom of Bars: 48-5/8″
Latch Type: Up Latch
Post: Door Stop (*Varies by layout.)
Guide: Door Stay
Track: 8′ Premium Track
Wood Direction: Vertical (*Note: Wood lumber is not included in the kit; we recommend tongue and groove wood for all of our horse stall systems. )
<!– Kit Includes:
Warranty: 1-Year Warranty on Workmanship.
Made in the USA.
Below are links to installation instructions and literature regarding Dublin horse stalls. They are in a PDF format, which you can save and print for future reference:
Dublin Stall Installation Instructions
Portable Panel Stall Installation Instructions – Square Track System
The Appearance of Hot-Dip Galvanized Coating
Installation: This is a freestanding horse stall system; no support posts are required for this installation. Connect the stall panels with stall connectors, which are sold separately and can be found here. *Note: Wood lumber is not included; we recommend tongue and groove wood for all of our horse stall systems.
