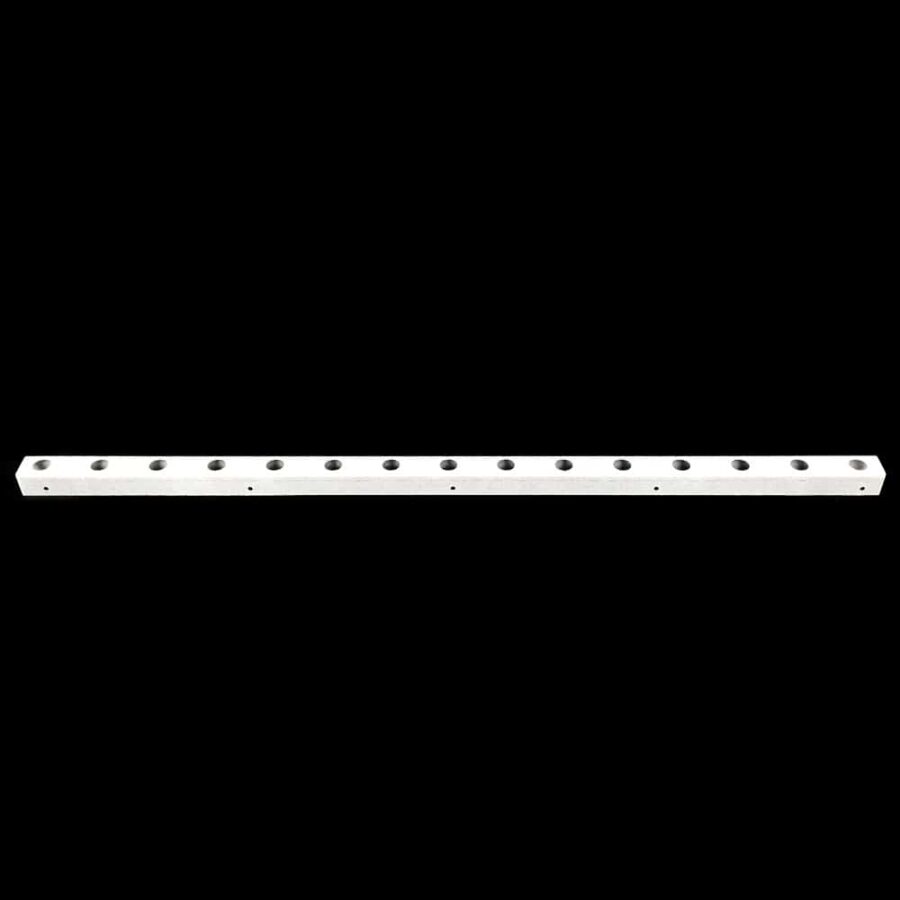

Essex Grill Channel

Essex grillwork channels are used to build grilled stall fronts, partitions, and doors. These channels have pre-drilled holes and feature a rust-resistant zinc coating. They are available in four different sizes: 48″, 65″, 72″, & 91″.

48″ Grillwork Channel – Each channel is sold individually, but requires ten (10) stall screws and fifteen (15) horse stall grommets for installation. Also used as Essex stall doors’ bottom grill channel.
65″ Grillwork Channel – Each channel is sold individually, but requires ten (10) stall screws and twenty (20) horse stall grommets for installation.
72″ Grillwork Channel – Each channel is sold individually, but requires twelve (12) stall screws and twenty-two (22) horse stall grommets for installation.
91″ Grillwork Channel – Each channel is sold individually, but requires fourteen (14) stall screws and twenty-eight (28) horse stall grommets for installation. If you’d like to make a 91″ grillwork section with a feed door, you will need: (2) 91″ grill channels, (21) horse stall grill bars, (11) 1-3/8″ feed opening plugs, (1, 50-pack) horse stall grommets, (28) stall screws, and (1) feed door kit.

Shipping Note

Due to the dimensions of this product, the website’s shipping calculations are skewed. We recommend contacting us at 800-434-6296 for an accurate shipping rate.

They may also be picked up at our location: 13150 Airport Hwy., Swanton, Ohio 43558

Quantity: Sold Individually (*hardware not included)

Lengths:

48″
65″
72″
91″

Finish: Galvalume

Compatibility: Essex Stalls

Shipping: This item ships via a ground delivery service. This product cannot ship through USPS; it’s too bulky/long. USPS shipping quotes are not valid for this product.

Made in the North America

Below is a link to the PDF of the Essex installation instructions, which you can save and print for referencing:

Essex Installation Instructions
