Essex V-Door Kit

SKU: SSB Category: Essex Stall Doors

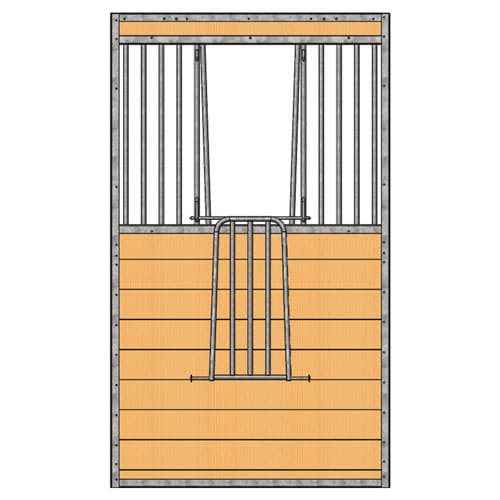

Promote a happier, more engaging environment for your horse with the Essex V-door stall door. Designed with an open “V” top, this door allows your horse to safely look out into the barn aisle to socialize.

Proudly Made in the USA. No imported horse stalls—just American craftsmanship you can trust.

Horses are naturally social animals, and allowing them to engage with their surroundings can greatly reduce boredom and stall pacing. The Essex V-door stall door features an open “V” design that gives your horse the freedom to look out into the barn aisle, keeping them relaxed and connected to the daily activity in the barn.

Key Product Features:

Design: Open V-yoke style for aisle visibility and socialization
Material: Heavy-duty 14-gauge steel
Finish: Corrosion-resistant galvalume for long-lasting rust protection

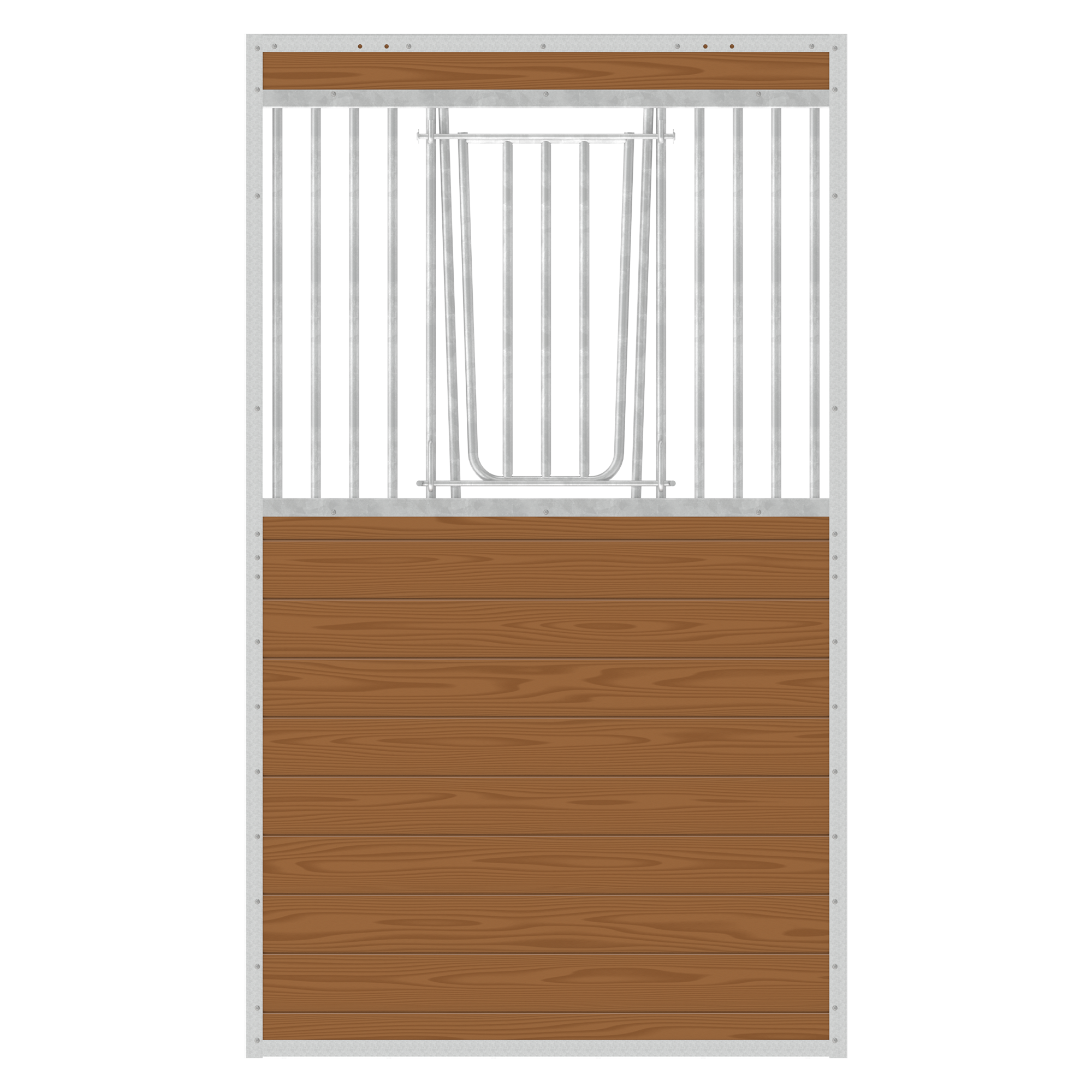

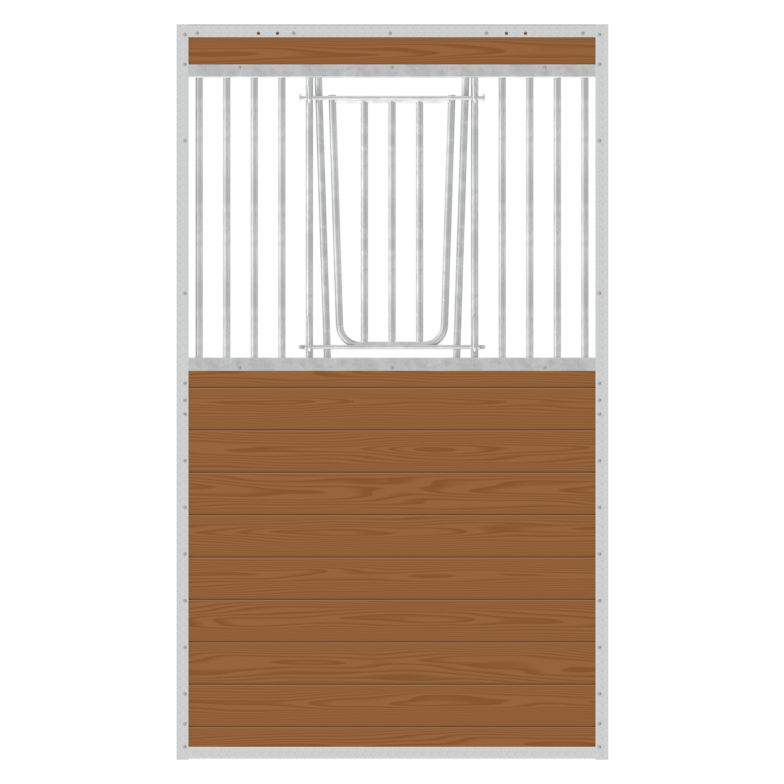

Adaptability: Can become a fully grilled door with the optional V-door insert (sold separately)

Specifications:

Length: 10′ or 12′
Finish: Galvalume (*all material is made with high-quality North American steel)
Channel Gauge: 14-gauge
Bar Gauge: 16-gauge
Bar Diameter: 7/8″
Bar Height (Inside-to-Inside): 33″
Bar Spacing (On-Center): 3-1/4″
Floor to Top of Header: 2×10 Header Board = 91-5/8″, 2×12 Header Board = 93-5/8″
Floor to Bottom of Bars: 48-1/2″
Door Height (Finished): 86-3/4″
Door Width: 51-1/4″
Door Opening Width (Standard): 48″
Door Track: 8′ Premium Track
Door Latch: Door Top Latch System
Door Latch Lifting Rod Size: 47-1/8 [Long]
Door Guide: Stay Roller
Door Stopper: Post Bumper
Wood Direction: Horizontal
Warranty: 1-Year Material Warranty
