U-Channel
These horse stall u-channels support wooden wallboards between support posts. They have pre-drilled holes and feature a rust-resistant zinc coating. Available in three different sizes: 93.5″, 46.5″, or 7″. Choose between galvalume or powder-coat painted.
Your Price: Price range: $6.99 through $67.05
[yith_wcwl_add_to_wishlist]
Horse stall U-Channels support wooden wallboards between the wood support posts. RAMM u-channels have pre-drilled holes and feature a rust-resistant zinc coating. Choose between galvalume (metallic) or powder-coated black finishes for a style that fits your property.
U-channels are 1.75″ x 1.75″ with a 1.5″ opening and available in three different lengths: 93.5″, 46.5″, and 7″

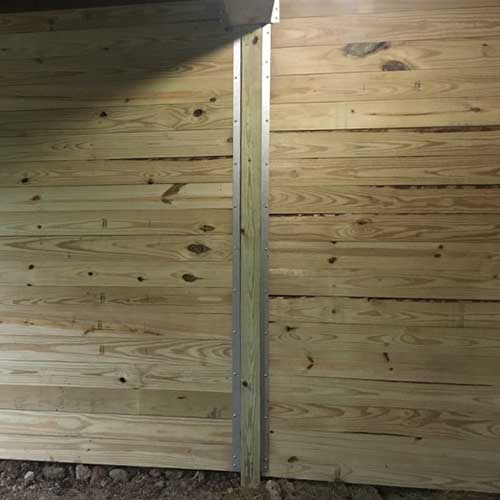

- The 93.5″ U-Channels make a solid wooden wall wherever needed, to create approximately an 8′ wall. They require forty-two (42) screws for installation. *Ships through a ground delivery service in a 96″x6″x6″ box and cannot ship through USPS. Up to eight (8) 93.5″ u-channels can fit per box.

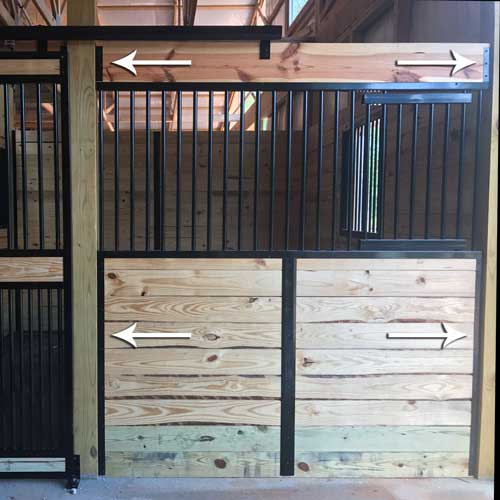

- The 46.5″ U-Channels are used for the bottom of stall fronts and with grilled partitions, to create approximately a 4′ wall. They require twenty-four (24) screws for installation. *Ships through a ground delivery service in a 50″x6″x6″ box and cannot ship through USPS. Up to eight (8) 46.5″ u-channels can fit per box.

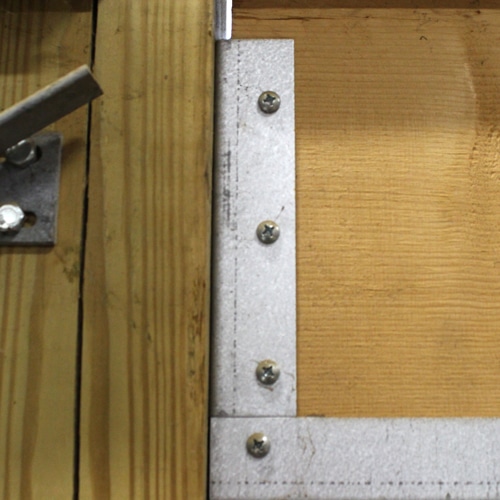

- The 7″ U-Channels are used to anchor header boards on stall fronts. They require nine (9) screws for installation. *Can ship via USPS.
Lengths:
- 93.5″ (93-1/2″ L x 1-9/16″ H x 1-11/16″ W)
- 46.5″ (46-1/2″ L x 1-9/16″ H x 1-11/16″ W)
- 7″ (7″ L x 1-9/16″ H x 1-11/16″ W)
Dimensions: 1.75″ x 1.75″ with a 1.5″ opening
Finish: Galvalume or Powder-Coated Black
Steel Gauge: 14-gauge
Below are links to PDFs of the installation instructions for all of the compatible horse stalls, which you can save and print for referencing:
Derby Stall Installation Instructions
Essex Installation Instructions
Cambridge Installation Instructions
Oxford Installation Instructions
Installation: Screw the u-channel to your support posts. Then slide the wallboards into the u-channel and screw them to the u-channel through the pre-punched holes. Each u-channel requires stall screws for installation, but are sold separately:
