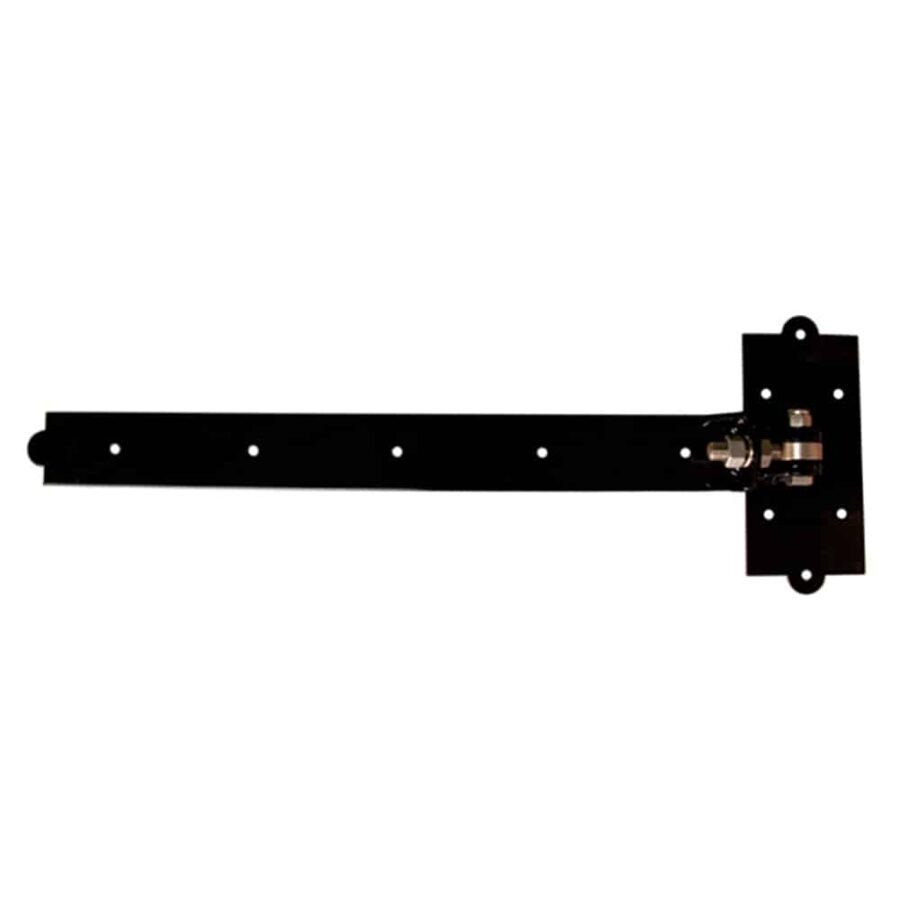

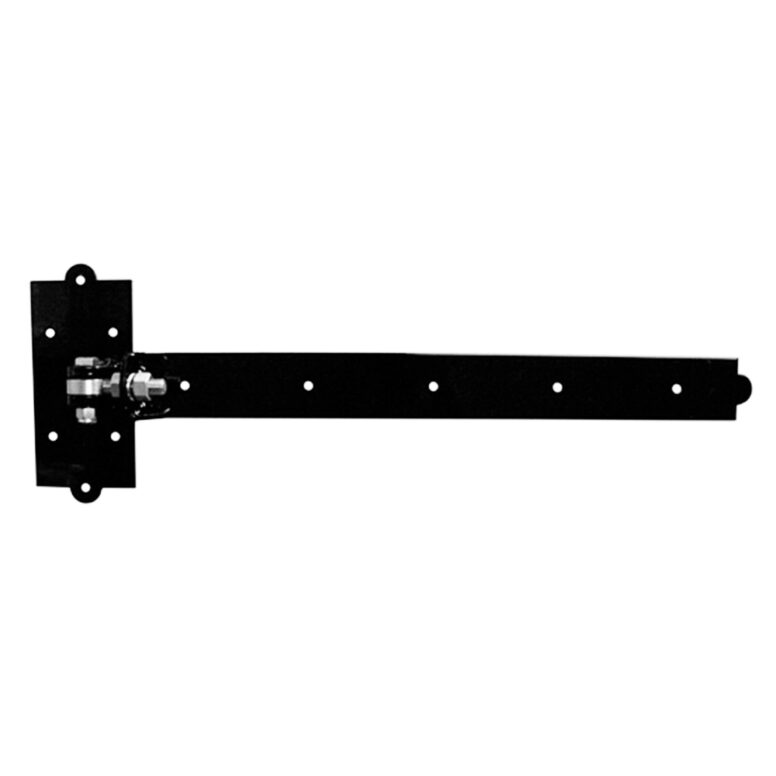

24″ Madison Heavy-Duty Adjustable Strap Hinge
The 24″ Madison adjustable strap hinge is powder coated black with stainless steel components providing the door system with the durability and a very prestigious look.
Compatibility: Madison Decorative Back Plate
Your Price: $112.80
In Stock
[yith_wcwl_add_to_wishlist]

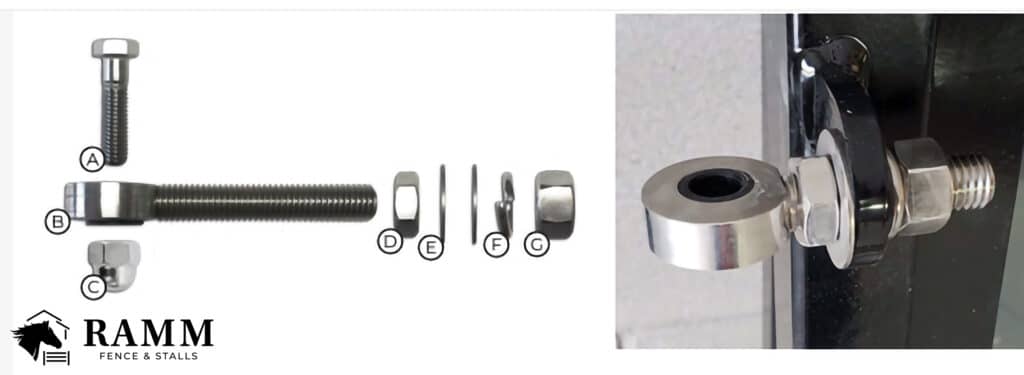

This high quality barn door hinge comes in a black powder coated finish. It is fabricated with a stainless steel hinge bolt including a Delrin bushing pressed in, resulting in years of hassle-free operation. A simple turn of a wrench adjusts your barn door hinge at any time if there is movement in your barn.
The horizontal adjustment range is +/- 1” and the vertical adjustment range is +/- ½”. It is made from 304 stainless steel and precision cut with CNC technology.

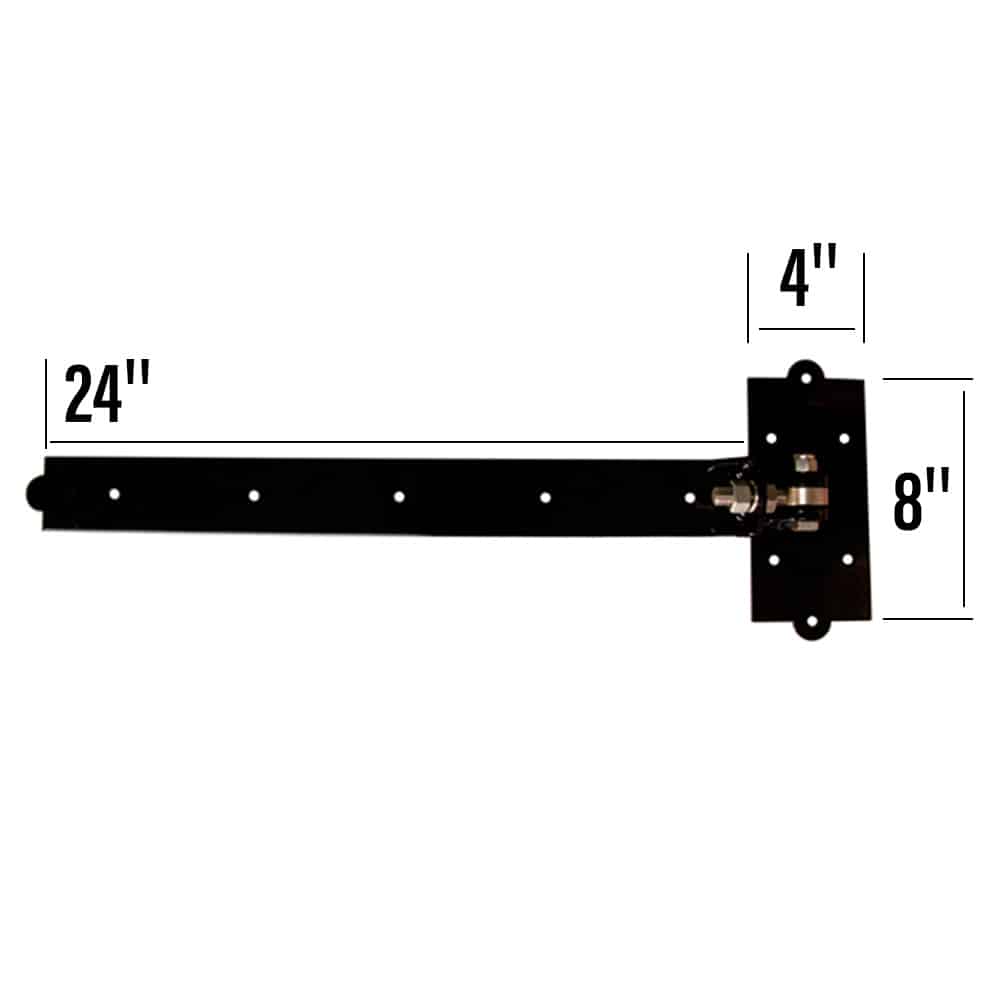

Size: 24″ (*custom sizes available upon request)
Finish: Powder-Coated Black
Hardware Material: Stainless Steel
Fasteners (not included):
We have not specified a length as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Door Side:
Qty: 10
5/16″ Lag Bolts
Frame Side
Qty: 6
1/4″ Lag Bolts
Hinge Support Strength: Rated up to 300 lbs. per hinge.
Compatibility: Madison Decorative Back Plate
