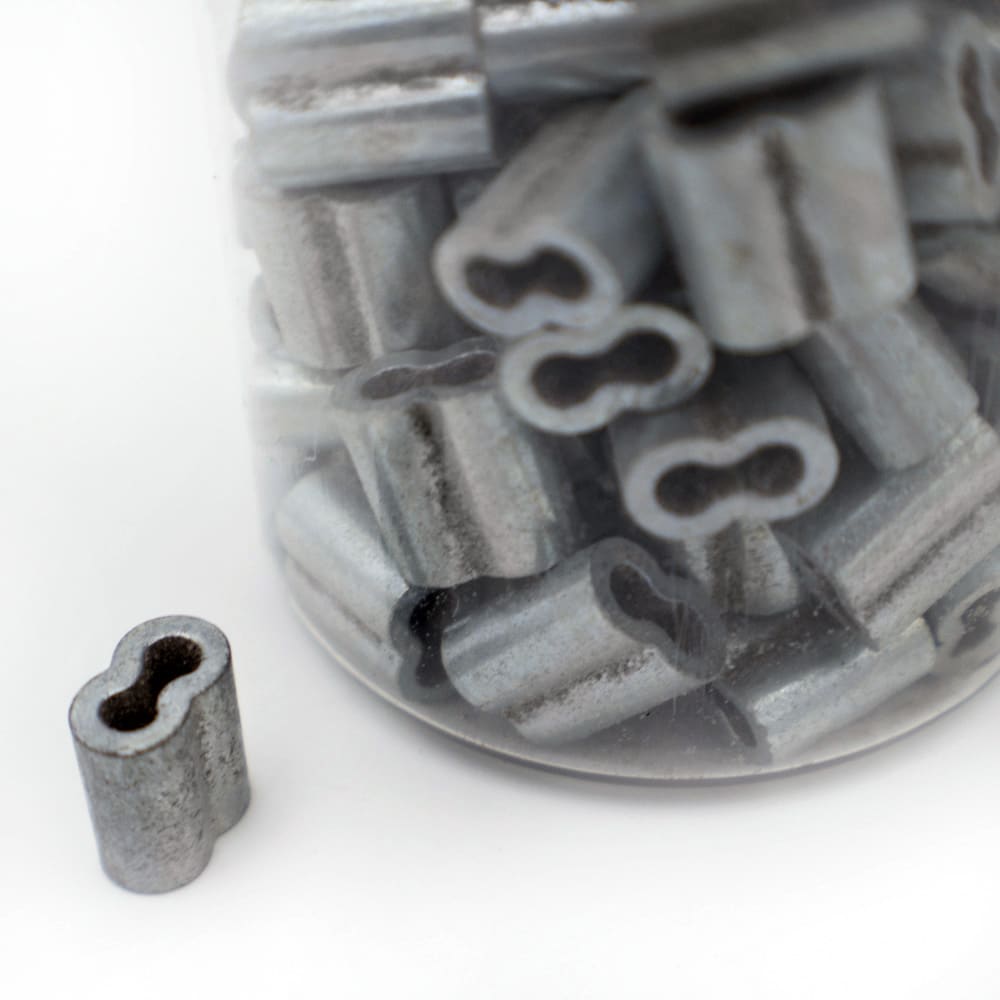

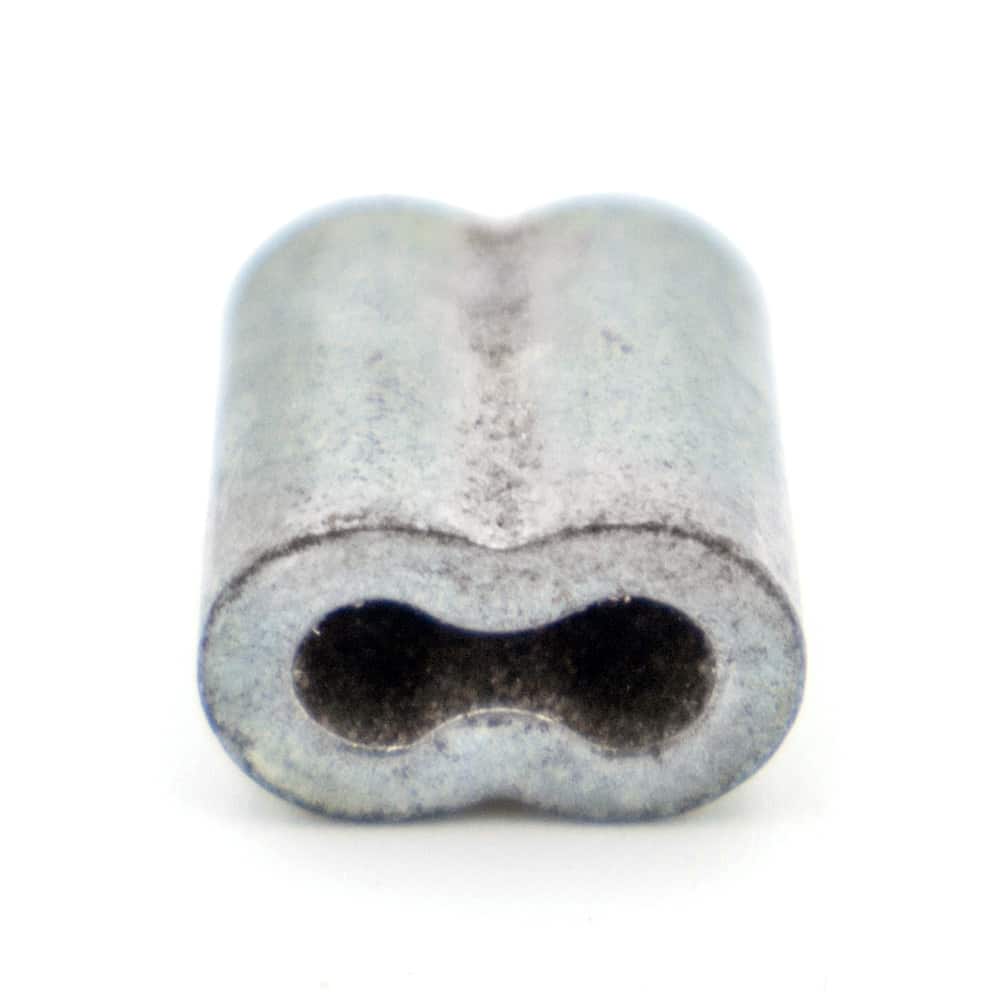

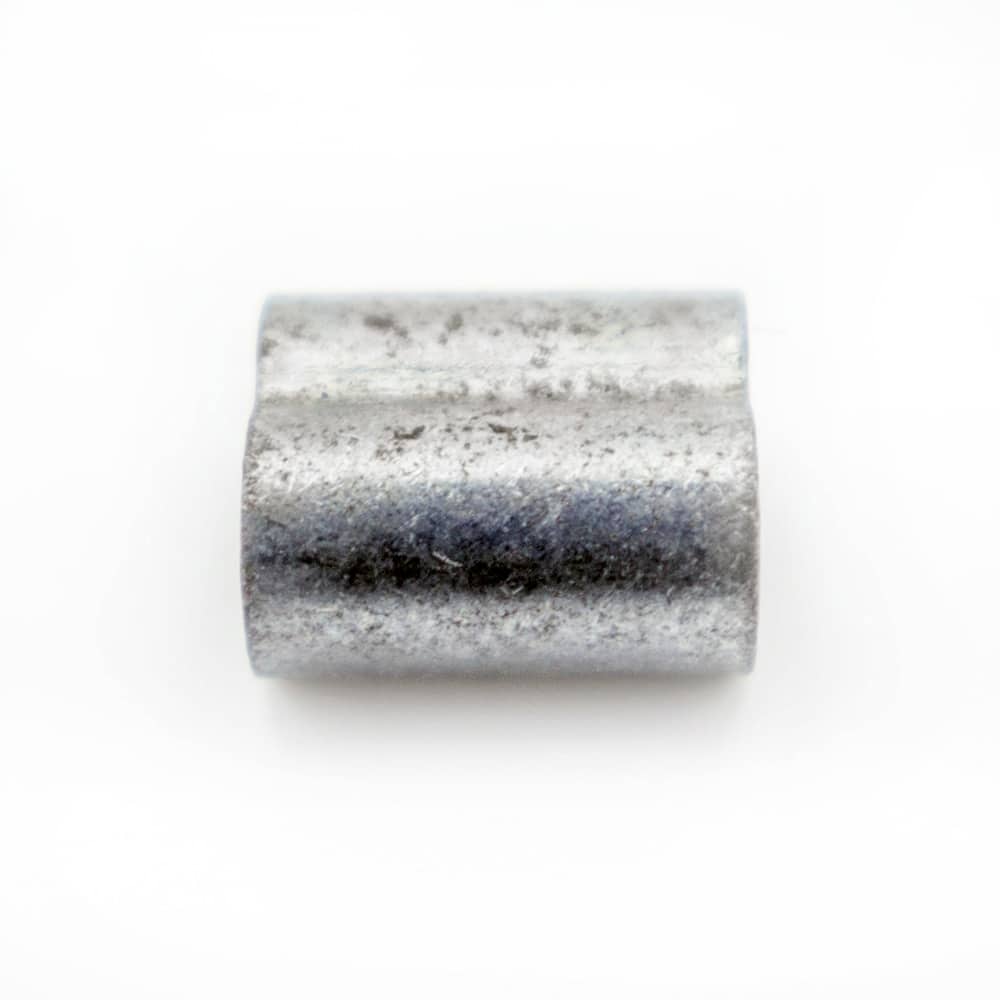

12.5-Gauge Crimp Sleeves, 100-Pack
These galvanized 12.5-gauge crimp sleeves are used to splice together high-tensile coated wire horse fencing. Please make sure to crimp in a cylinder shape and not in an 8 shape! Sold in packs of 100.
Compatibility: Raceline & Shockline

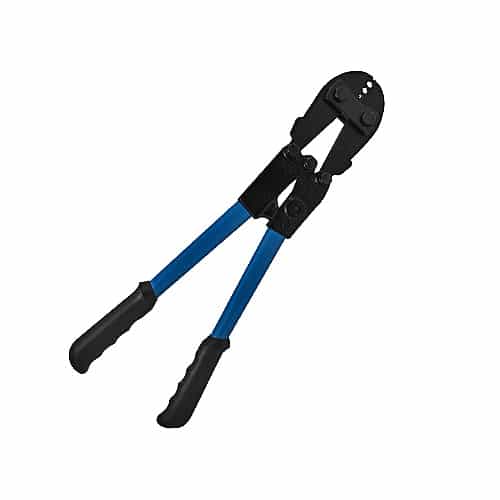

Tool: Crimp Tool
Your Price: $19.50
In Stock
[yith_wcwl_add_to_wishlist]
12.5-gauge galvanized crimp sleeves are used to terminate and splice together high tensile wire horse fencing. Two crimp sleeves are used when splicing together 12.5-gauge high-tensile wire. Two crimp sleeves are used at end posts and for end fence tensioners. Using the recommended amount of crimp sleeves makes sure the wire is still holding its original strength of the wire.

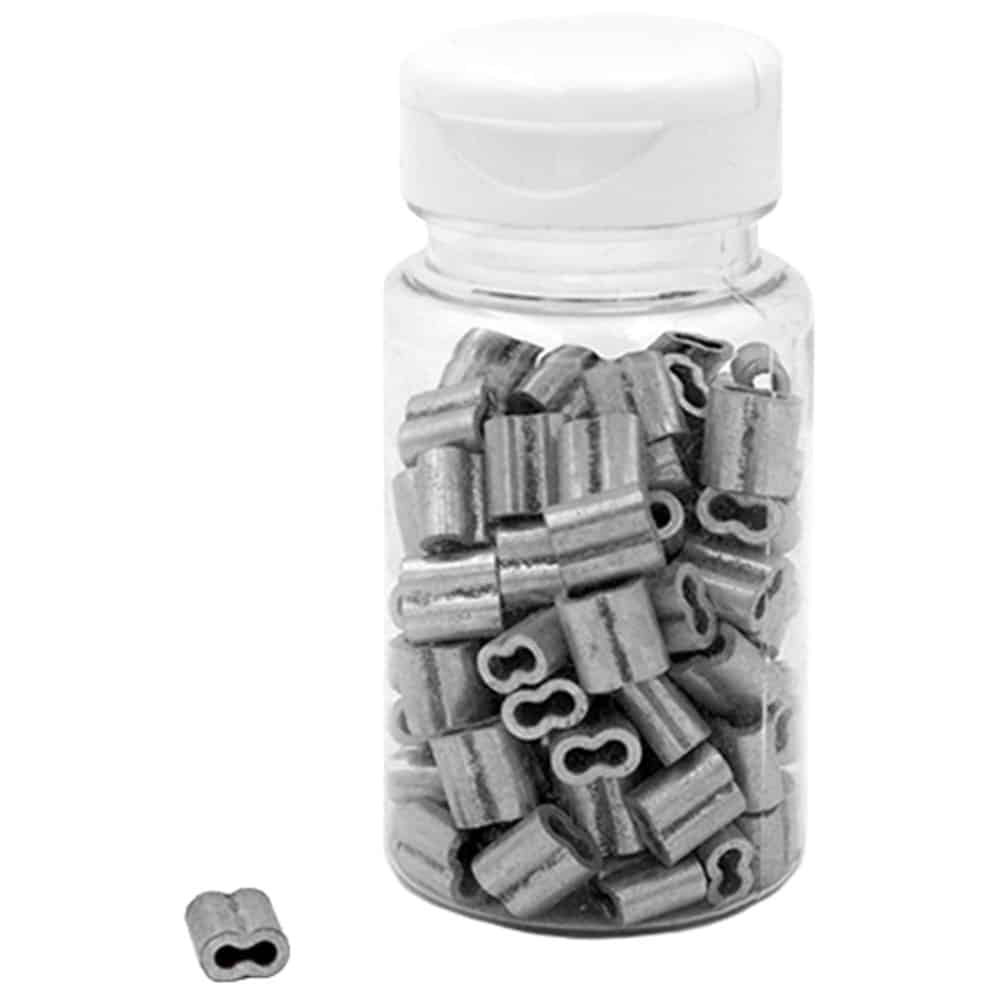

Quantity: Sold in packs of 100
Finish: Galvanized
Material: 12.5-Gauge High-Tensile Wire
Fence Compatibility: Raceline & Shockline
Tools Required: Crimp Tool
*Note: Crimp tool needed to install crimp sleeves (sold separately). Crimp sleeves are not recommended for use with barbed wire.
Below are links to informational literature for crimp installation methods. All links below are in PDF format, which you can save and print for future reference.

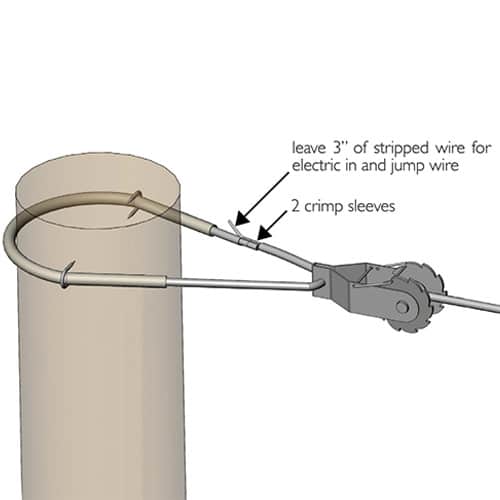

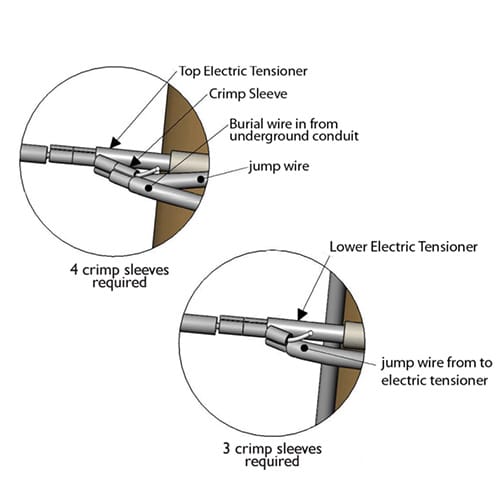

Installation: When 12.5-gauge wires are spliced together, three crimp sleeves are used to maintain the full strength of the wire. At the end posts, two sleeves are normally used. When crimping the sleeve, put it into the tool slot marked 2-3 and compress it into a cylindrical shape. Leave about 1/4″ space in-between crimp sleeves. Do not split the sleeve into an 8 shape.
