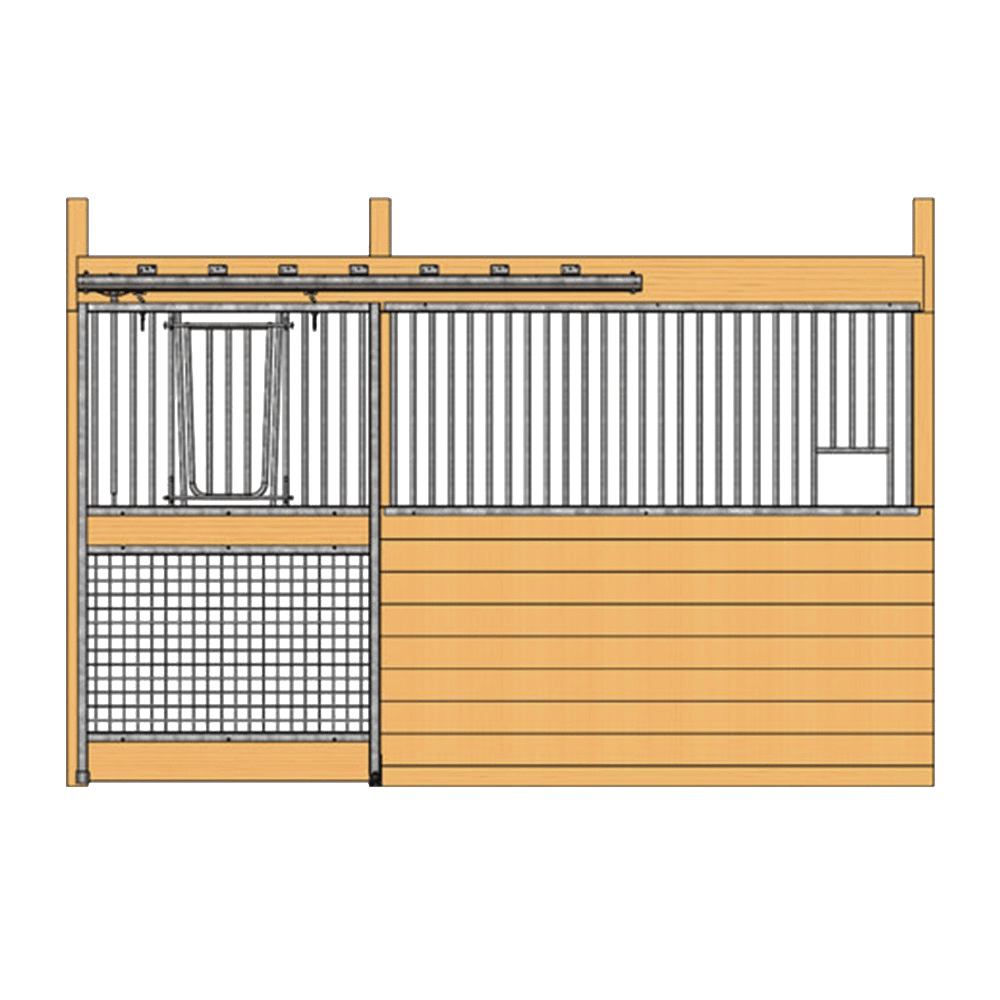

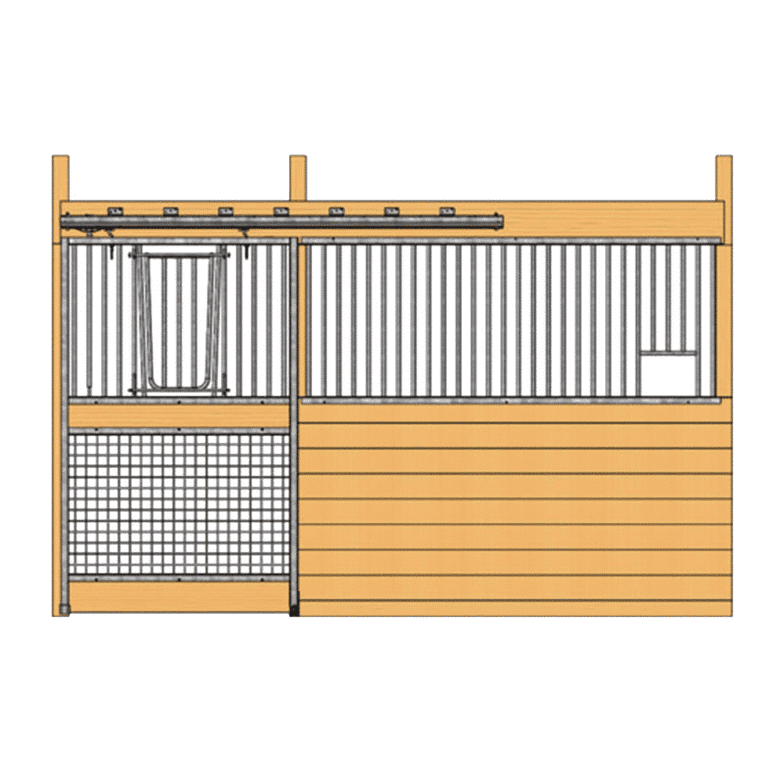

Cambridge Stall Front with Mesh Bottom V-Door & Feed Opening
Cambridge stall fronts are fully welded for strength and longevity. Featuring either a beautiful sleek black powder coat or durable hot dip galvanized finish. Safer interior welded grillwork bars with closer bar spacing, fully welded door frame with welded grill top and many customization options. One touch tear drop track and trolley system offers smooth door operation for years. Faster and easier installation makes Cambridge a favorite builder’s choice.
[yith_wcwl_add_to_wishlist]
Cambridge fully welded stall with mesh bottom and V-door opening. Included option is the welded feed opening in the grillwork Beautiful sleek black powder coat or durable hot dip galvanized finish. Safer interior welded grillwork bars with closer bar spacing, fully welded doors and many customization options. One touch tear drop track and trolley, rather than round, is self cleaning and self aligning. The unique profile has a square side allowing the track to be firmly and squarely mounted. Rugged nylon wheels have sealed and greased bearings to ensure smooth operation for years. Faster and easier installation makes Cambridge a favorite builder’s choice. All hardware is included, you supply the wood to save with freight costs.
Length: 10′ or 12′ (*Custom sizes available upon request.)
Finish: Hot-Dip Galvanized or Powder-Coated Black
*RAMM has the industry’s premier hot-dip galvanization for horse stalls.
Channel Gauge: 14-gauge
Bar Gauge: 16-gauge
Mesh Bottom: 1/4″ Mesh Steel with 2″ x 2″ Square Holes
Bar Spacing: 3¼”
Bar Diameter: ⅞”
Bar Height (Inside-to-Inside): 33″
Door Width: 51½”
Door Opening (Standard): 48″
Door Height (Finished): 81⅜”
Floor to Top of Header: 90¼”
Floor to Bottom of Bars: 47¾”
Latch Type: Up Latch
Post: Post Bumper
Guide: Stay Roller
Track: 8′ Premium Track
Wood Direction: Horizontal (*Note: Wood lumber is not included with the kit.)
Kit Includes:
- 1 – Stall Door Kit
- 1 – Grillwork Section
- 1 – Feed Opening
- 1 – 8′ Premium Track
- 1 – Premium Track Door Hardware Kit (includes: track brackets, trolleys, trolley bolts, stay roller, post bumper, and hardware)
- Stainless Steel Receiver
- Spring-Loaded Bar Latch
- Stall Screws
Made in the USA
