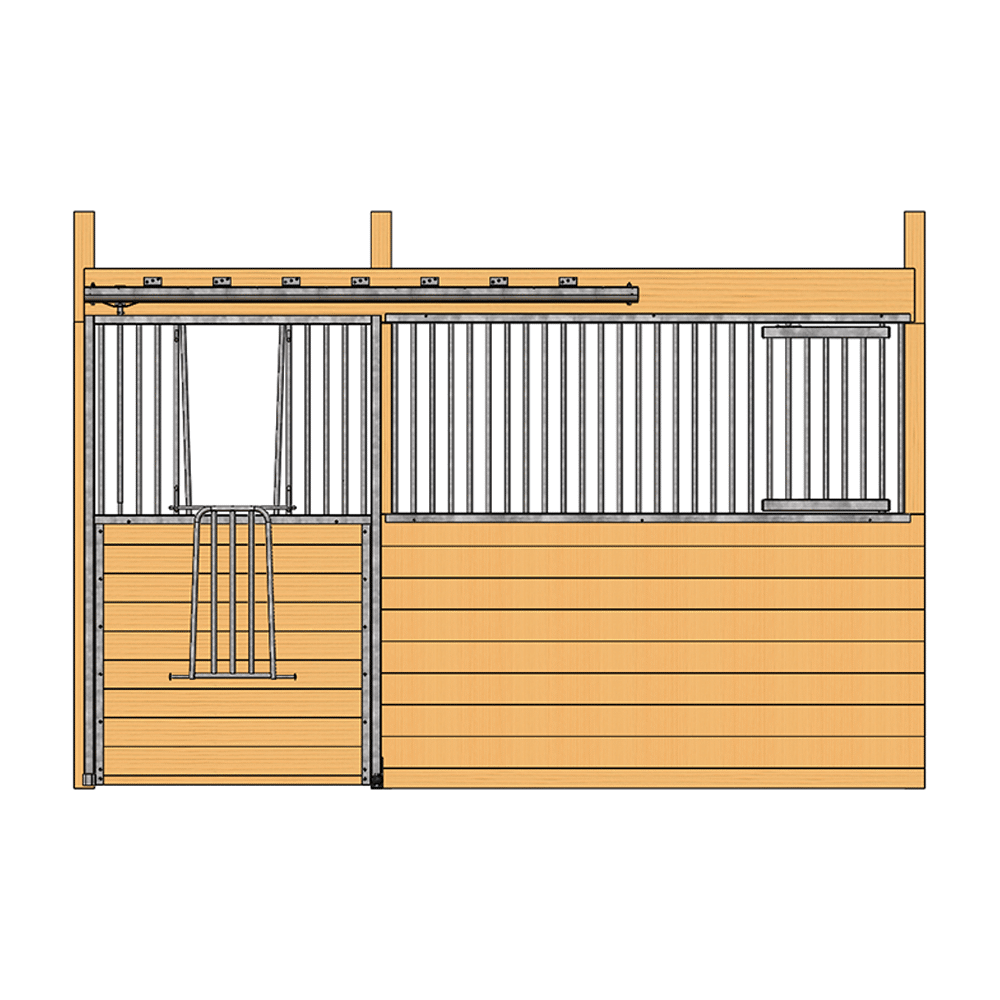

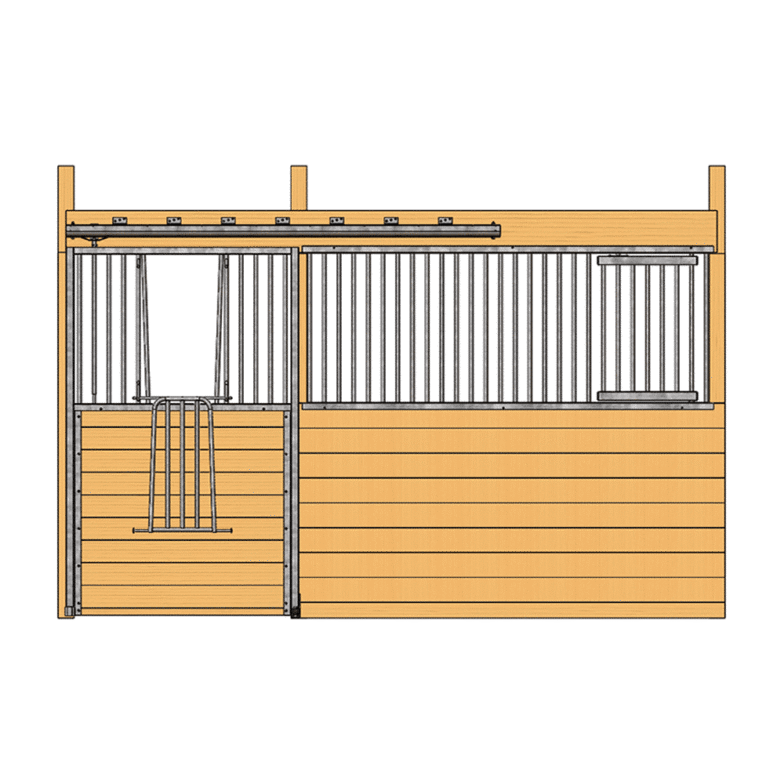

Cambridge Stall Front with V-Door & Feed Door
Cambridge stall fronts are fully welded for strength and longevity. Featuring either a beautiful sleek black powder coat or durable hot dip galvanized finish. Safer interior welded grillwork bars with closer bar spacing, fully welded door frame with V-Door and many customization options. One touch tear drop track and trolley system offers smooth door operation for years. Faster and easier installation makes Cambridge a favorite builder’s choice.
[yith_wcwl_add_to_wishlist]
Fully welded Cambridge has an added swinging feed door large enough for grain and hay. The V-Door is fully grilled and grillwork is completely welded for strength and ease of installation.
Length: 10′ or 12′ (*Custom sizes available upon request.)
Finish: Hot-Dip Galvanized or Powder-Coated Black
*RAMM has the industry’s premier hot-dip galvanization for horse stalls.
Channel Gauge: 14-gauge
Bar Gauge: 16-gauge
Bar Spacing: 3¼”
Bar Diameter: ⅞”
Bar Height (Inside-to-Inside): 33″
Door Width: 51½”
Door Opening (Standard): 48″
Door Height (Finished): 81⅜”
Floor to Top of Header: 90¼”
Floor to Bottom of Bars: 47¾”
Latch Type: Up Latch
Post: Post Bumper
Guide: Stay Roller
Track: 8′ Premium Track
Kit Includes:
- 1 – Stall Door Kit
- 1 – Grillwork Section
- 1 – Feed Door
- 1 – 8′ Premium Track
- 1 – Premium Track Door Hardware Kit (includes: track brackets, trolleys, trolley bolts, stay roller, post bumper, and hardware)
- Stainless Steel Receiver
- Spring-Loaded Bar Latch
- Stall Screws
Note: Must be installed with wood or metal posts.
Warranty: 1-Year Warranty on Workmanship.
*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 2 x 6” tongue and groove boards as wood supplier measurements can vary.
Made in the USA.
