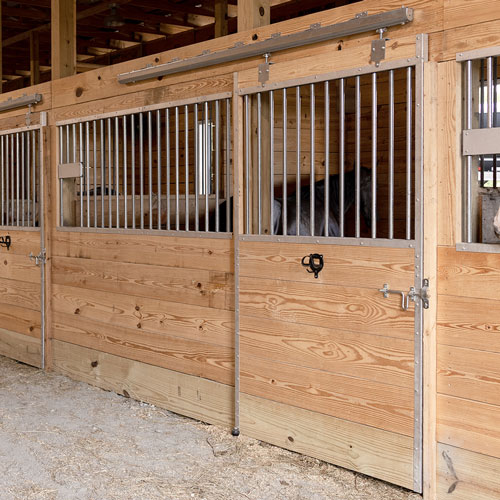

10′ Derby Stall Front Kit
The Derby Stall Series is the most economical choice for horse stalls, without compromising quality. They feature impressive strength, can be customized on-site, and are a sleek yet affordable solution. Weekend enthusiasts appreciate the ease of installation.

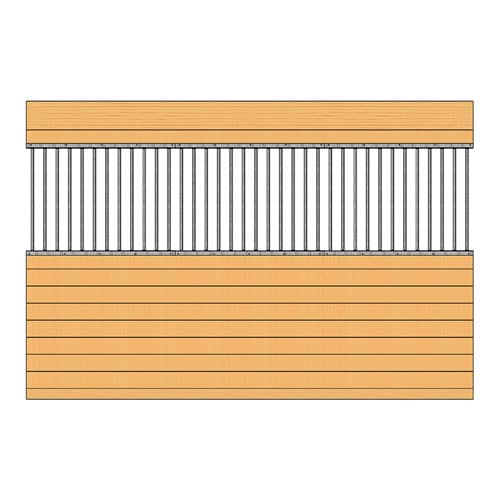

Compatibility: Derby Partitions
Your Price: $597.97
In Stock
[yith_wcwl_add_to_wishlist]

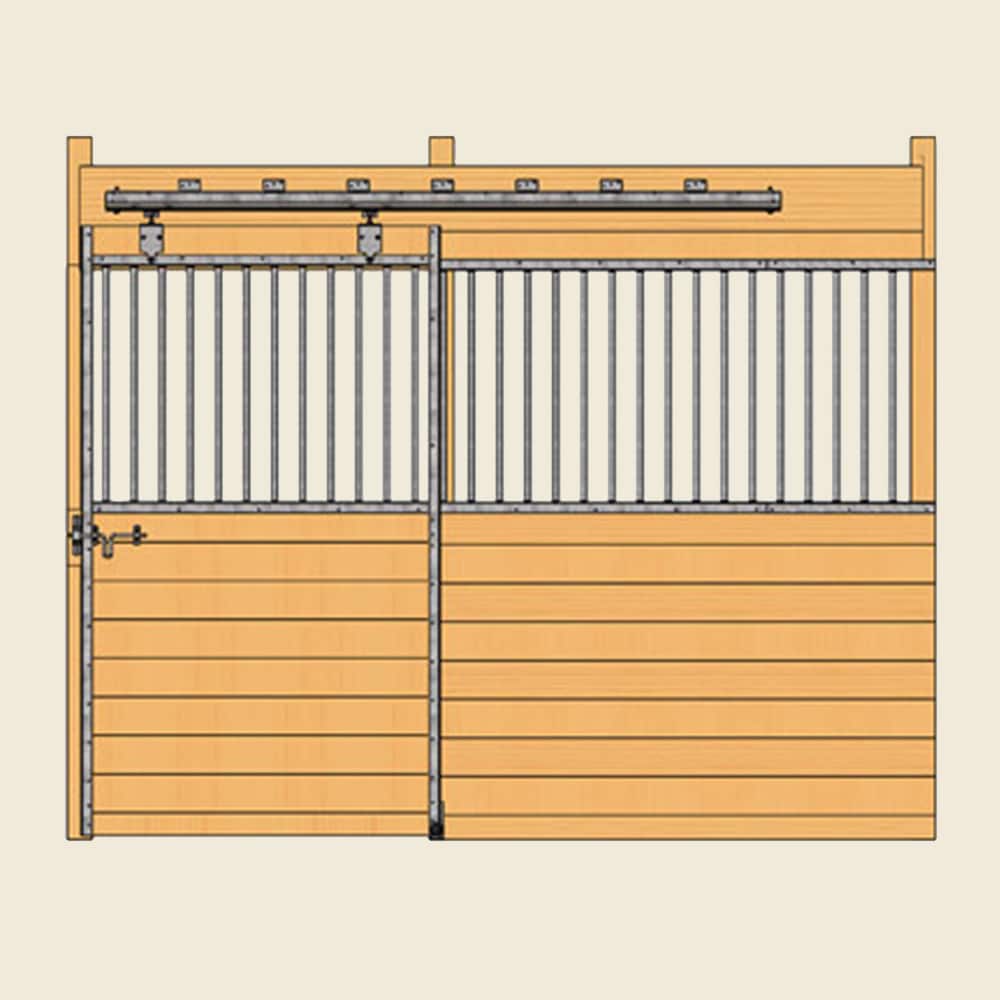

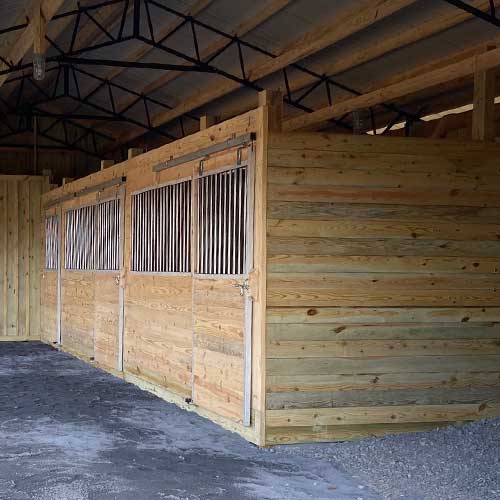

This complete 10′ Derby stall front offers superior quality at a practical price. It features durable 14-gauge steel providing strength, and a galvalume finish with UV coating for rust protection. The bars are secured inside rubber grommets to reduce noise in your barn, and the premium round track system allows the door to roll with ease. The stall system is fully customizable and can be installed in new or existing barns, utilizing your support posts.
The kit comes complete with the door, stall front, and a premium track hardware assembly kit. The bars are 7/8″, 16-gauge, spaced 4″ on-center. All necessary hardware is included with each stall front package, and detailed instructions will ensure a quick and easy installation.
Please note: Support posts and lumber are not included with this kit. Recommendations are included in our detailed installation instructions.Â
Length: 10′
Finish: Galvalume
Channel Gauge: 14-gauge
Bar Gauge: 16-gauge
Bar Spacing: 4″ On-Center
Bar Diameter: 7/8″
Bar Height (Inside-to-Inside): 33″
Door Width: 51-1/4″
Door Opening Width (Standard): 48″
Door Height (Finished): 86-3/4″
Floor to Top of Header (Using Board Per Instructions): 96-1/2″
Floor to Bottom of Bars: 47-3/4″
Latch Type: Slide Bolt Latch
Guide: Stay Roller
Track: 8′ Premium Track
Lumber Direction: Horizontal (*Note: Lumber is not included in the kit.)
Warranty: 1-Year Material Warranty
Kit Includes:
- 1 – Derby Door Premium Track Kit
- 1 – Derby Grill Top Door Kit

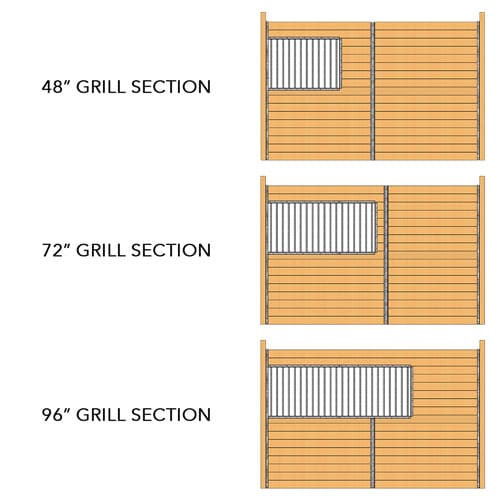

- 1 – 48″ Derby Grill Section Kit
- 1 – 24″ Derby Grill Section Kit
All material is made in North America with high-quality North American steel.
Below is a link to the installation instructions for our Derby horse stalls in a PDF format, which you can save and print for future reference:
