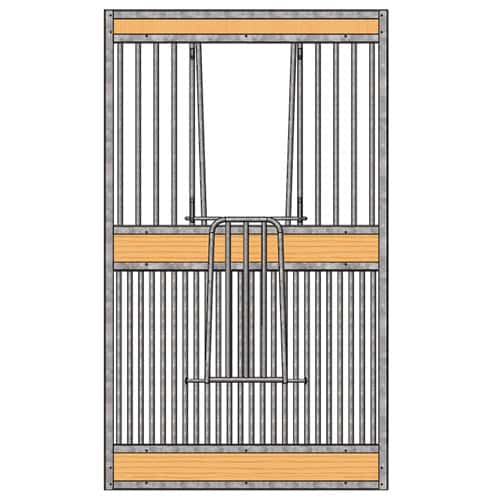

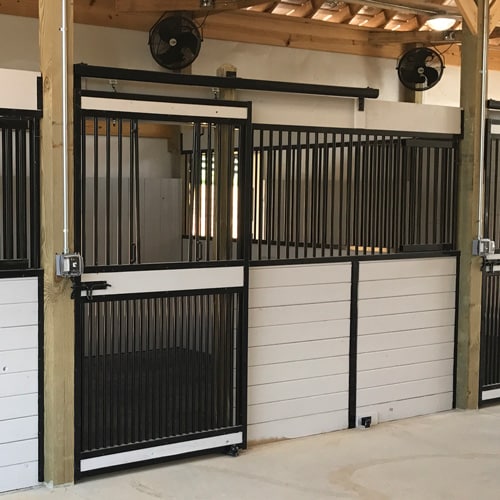

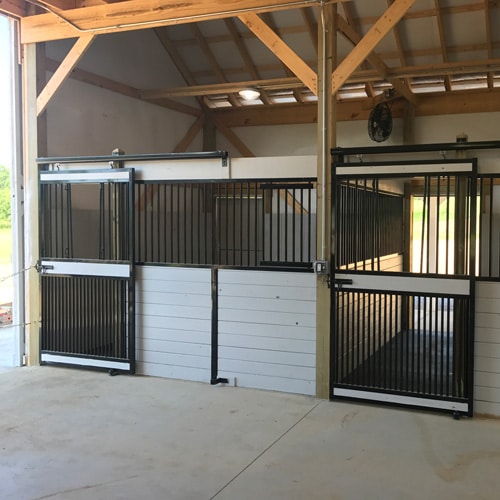

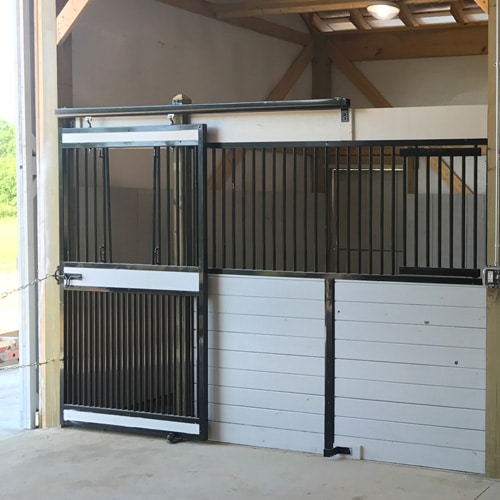

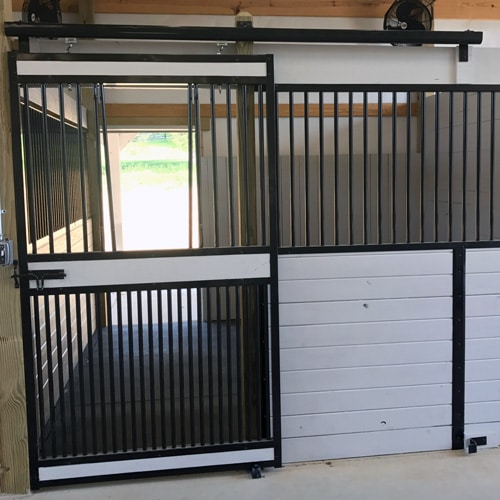

Oxford Full Grill V-Door Kit
The Oxford welded full grill v-door is made from galvanized steel. Steel is three times as dense as aluminum, which means our steel stall doors are much more durable than aluminum stall doors even before the hot-dip galvanization process.
[yith_wcwl_add_to_wishlist]
The Oxford welded full grill v-door is made from galvanized steel. Steel is three times as dense as aluminum, which means our steel stall doors are much more durable than aluminum stall doors even before the hot-dip galvanization process. The added v-door lets horses socialize by sticking their heads out of the stall door and can be used in either the open or closed position. The v-door can also be completely removed if necessary. Oxford welded horse stalls are constructed of hot-dip galvanized steel (14-gauge frame), feature hidden interior welds, and offer the best type of rust protection available! Â
*Note: V-Door Insert is NOT included. You can purchase it here.
*Note: Wood lumber is not included; we recommend tongue and groove wood for all of our horse stall systems.
Finish: Hot-Dip Galvanized or Powder-Coated Black (*RAMM is the industry’s premier hot-dip galvanizer for horse stalls.)
Bar Gauge: 16-gauge
Channel Gauge: 14-gauge
Bar Spacing: 3 1/4″
Bottom Bar Spacing: 2″
Bar Diameter: 7/8″
Bar Height: 33 1/2″
Door Width: 51 1/4″
Door Opening Width (Standard): 48″
Door Height: 86 3/4″
Floor to Top of Header: 93″
Floor to Bottom of Bars: 48 1/2″
Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit.)
Kit Includes:
- 1 – Oxford Full Grill V-Door
- 1 –Â 48″ Stall Door Top Channel
- 1 – 48″ Stall Door Bottom Channel
- 26 –Â #12 x 1-1/4″ Phillips Pan Head Stall Screws
Not Included: V-Door Insert is NOT included. You can purchase it here.
Shipping: This item ships freight. Please contact one of our expert account managers for a shipping quote.
Warranty: 1-Year Warranty on Workmanship.
*Note: Must be installed with wood or metal support posts. Wood lumber is not included in the kit.
Made in the USA!
