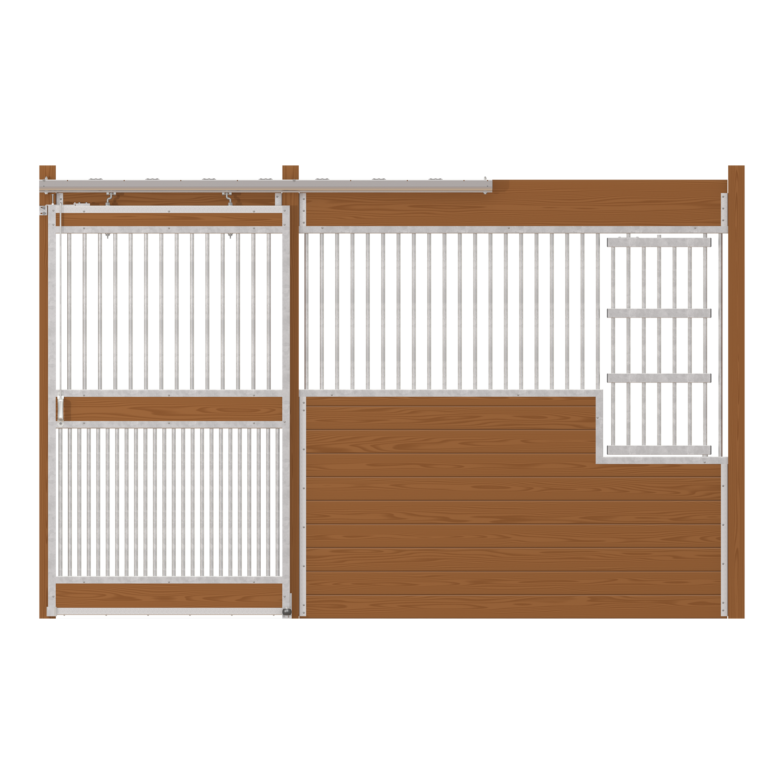

Oxford Stall Front with Full Grill Door & Large Feed Door

SKU: N/A Category:

This Oxford front offers full visibility and ventilation for your horse. The Full Grill door has 3 ¼” on center top bar spacing and 2” on center bottom door spacing. See into your horse’s stall making barn checks easier and more efficient. The large feed door allows you to feed grain or hay easily from your aisle. It is also large enough to accommodate our Poly Corner Feeder, which holds hay and grain.

[yith_wcwl_add_to_wishlist]

Upgrade your barn with the Oxford Stall Front featuring a full grill door and a large feed door—designed for maximum visibility, ventilation, and feeding efficiency.

Key Features:

  • Full Grill Door for Visibility and Ventilation:
    The door features 3 ¼” on center top bar spacing and 2” on center bottom door spacing, providing excellent visibility into the stall and promoting superior airflow. This design makes barn checks easier and more efficient, allowing you to monitor your horse’s well-being at a glance41.

  • Large Feed Door for Convenience:
    The integrated large feed door allows you to feed grain or hay directly from the aisle, streamlining your daily routine. It is also spacious enough to accommodate the Poly Corner Feeder, which holds both hay and grain for added convenience1.

  • Durable Construction:
    Oxford stall fronts are built with fully welded frames and high-quality materials, ensuring long-lasting performance and security for your horses6.

Benefits:

  • Enhanced stall checks with full visibility

  • Improved airflow for a healthier environment

  • Easy and efficient feeding process from the aisle

  • Accommodates a variety of feeding setups, including the Poly Corner Feeder

Ideal For:
Barn owners seeking a stall front that combines safety, ventilation, and operational efficiency—perfect for busy boarding facilities and attentive horse care.

Choose the Oxford Stall Front with Full Grill Door & Large Feed Door for a blend of visibility, ventilation, and convenience in your barn



Length: 10′ or 12′ (Custom sizes available upon request.)

Finish: Powder Coated or Hot-Dip Galvanized

Channel Gauge: 14-gauge

Bar Gauge: 16-gauge

Full Grill Door Bottom Bar Gauge: 14-gauge (2” On-Center)

Bar Spacing: 3-¼”

Bar Diameter: ⅞”

Bar Height: 33″

Door Width: 51-¼”

Door Opening Width (Standard): 48″

Door Height: 86-¾”

Floor to Top of Header: 93″

Floor to Bottom of Bars: 48-½”

Latch Type: Top Latch

Post: Post Bumper

Guide: Stay Roller

Track: 8′ Premium Track

Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit so you save with freight.)

Production Time: Please allow 4-6 weeks lead time for this stall system.

Warranty: 1-Year Warranty on Workmanship.

*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 2 x 6” tongue and groove boards as wood supplier measurements can vary. Made in the USA!

Below are links to installation instructions and literature regarding our Oxford welded horse stalls. They are in a PDF format, which you can save and print for future reference:

Oxford Welded Stall Installation Instructions

The Appearance of Hot-Dip Galvanized Coating
