Oxford Stall Front with Full Grill V-Door & Feed Opening

SKU: N/A Category:

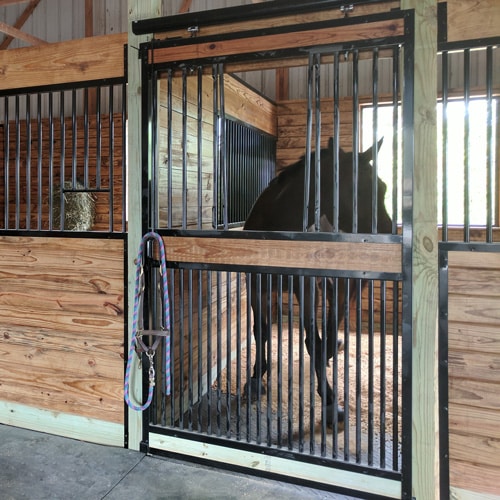

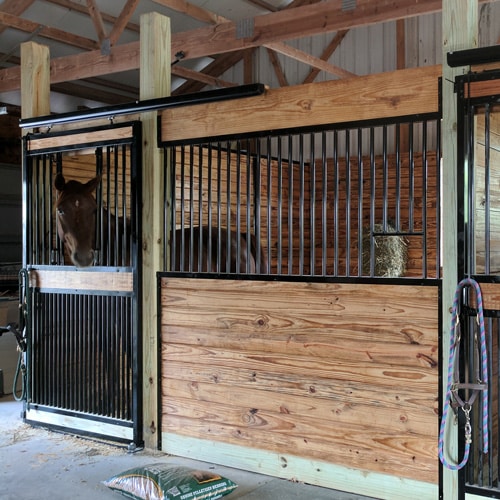

This Oxford front offers full visibility and ventilation for your horse. The Full Grill door has 3 ¼” on center top bar spacing and 2” on center bottom door spacing. See into your horse’s stall making barn checks easier and more efficient. V-Door opening allows for socialization and ventilation. Adding a welded V-door Insert (sold separately) allows the door to be fully grilled when closed. The feed opening in the grillwork section allows you to easily feed grain and supplements and helps to cut down graining time by feeding from your aisle.

[yith_wcwl_add_to_wishlist]

Upgrade your barn with the Oxford Stall Front featuring a full grill V-Door and convenient feed opening—designed for maximum visibility, ventilation, and efficient feeding.

Key Features:

  • Full Grill Door for Visibility and Ventilation:
    The stall front is constructed with a full grill door, providing exceptional visibility into the stall and promoting excellent airflow. The top bar spacing is 3 ¼” on center, while the bottom door spacing is 2” on center, ensuring safety for horses of all sizes1.

  • V-Door Opening for Socialization:
    The V-Door design allows horses to socialize and enjoy increased ventilation. For added flexibility and security, a welded V-Door Insert (sold separately) can be added to convert the door to a fully grilled closure when needed1.

  • Feed Opening for Efficiency:
    The integrated feed opening in the grillwork section allows you to feed grain and supplements directly from the aisle, streamlining your daily routine and reducing graining time1.

Benefits:

  • Enhanced stall checks with full visibility

  • Improved airflow for a healthier environment

  • Easy, efficient feeding process from the aisle

  • Adaptable security with optional V-Door Insert

Ideal For:
Barn owners and managers seeking a stall front that combines safety, ventilation, and operational efficiency—perfect for busy boarding facilities and attentive horse care.

Choose the Oxford Stall Front with Full Grill V-Door & Feed Opening for a blend of visibility, ventilation, and convenience in your barn

Length: 10′ or 12′ (Custom sizes available upon request.)

Finish: Powder Coated or Hot-Dip Galvanized

Channel Gauge: 14-gauge

Bar Gauge: 16-gauge

Full Grill Door Bottom Bar Gauge: 14-gauge

Bar Spacing: 3-¼”

Bar Diameter: ⅞”

Bar Height: 33″

Door Width: 51-¼”

Door Opening Width (Standard): 48″

Door Height: 86-¾”

Floor to Top of Header: 93″

Floor to Bottom of Bars: 48-½”

Latch Type: Top Latch

Post: Post Bumper

Guide: Stay Roller

Track: 8′ Premium Track

Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit so you save with freight.)

Production Time: Please allow 4-6 weeks lead time for this stall system.

Warranty: 1-Year Warranty on Workmanship.

*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 2 x 6” tongue and groove boards as wood supplier measurements can vary. Made in the USA!

Below are links to installation instructions and literature regarding our Oxford welded horse stalls. They are in a PDF format, which you can save and print for future reference:

Oxford Welded Stall Installation Instructions

The Appearance of Hot-Dip Galvanized Coating
