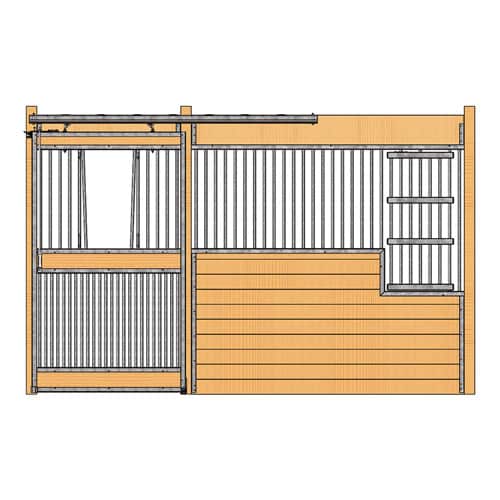

Oxford Stall Front with Full Grill V-Door & Large Feed Door

SKU: N/A Category:

This Oxford front offers full visibility and ventilation for your horse. The Full Grill door has 3 ¼” on center top bar spacing and 2” on center bottom door spacing. See into your horse’s stall making barn checks easier and more efficient. V-Door opening allows for socialization and ventilation. Adding a welded V-door Insert (sold separately) allows the door to be fully grilled when closed. The large feed door allows you to feed grain or hay easily from your aisle. It can also accommodate our Poly Corner Feeder, which holds hay and grain.

[yith_wcwl_add_to_wishlist]

Oxford stall fronts are manufactured to be stronger and last longer than any of the competition. The ease of installation with the fully-welded framework makes this a popular selection among homeowners and contractors alike. When deciding the horse stall system that is best for your horses, safety should be the number one priority. Oxford stalls are built with safety as a priority. We utilize 14-guage steel for strength, 7/8” bars spaced at 3-1/4” on center (leaving only 2-3/8” between the bars), and a fully hidden weld for durability.



Length: 10′ or 12′ (Custom sizes available upon request.)

Finish: Powder Coated or Hot-Dip Galvanized (*RAMM is the industry’s premier hot-dip galvanizer for horse stalls.)

Channel Gauge: 14-gauge

Bar Gauge: 16-gauge

Full Grill Door Bottom Bar Gauge: 14-gauge

Bar Spacing: 3-¼”

Bar Diameter: ⅞”

Bar Height: 33″

Door Width: 51-¼”

Door Opening Width (Standard): 48″

Door Height: 86-¾”

Floor to Top of Header: 93″

Floor to Bottom of Bars: 48-½”

Latch Type: Top Latch

Post: Post Bumper

Guide: Stay Roller

Track: 8′ Premium Track

Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit so you save with freight.)

Production Time: Please allow 4-6 weeks lead time for this stall system.

Warranty: 1-Year Warranty on Workmanship.

*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 2 x 6” tongue and groove boards as wood supplier measurements can vary. Made in the USA!

Below are links to installation instructions and literature regarding our Oxford welded horse stalls. They are in a PDF format, which you can save and print for future reference:

Oxford Welded Stall Installation Instructions

The Appearance of Hot-Dip Galvanized Coating
