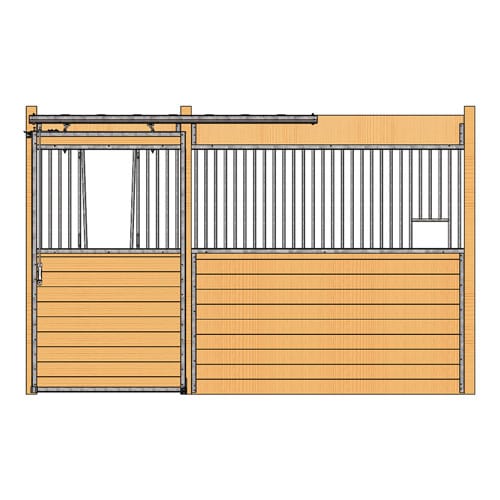

Oxford Stall Front with V-Door & Feed Opening

Keep your horses happy and streamline your daily chores with the Oxford Stall Front with V-Door & Feed Opening. This premium stall front reduces boredom by allowing safe socialization, while the integrated feed opening saves you valuable time during busy morning and evening feeding routines.

  • Promotes Socialization: V-door lets your horse comfortably interact with the barn aisle.

  • Aisle-Side Feeding: Welded feed opening allows for fast, safe distribution of grain and supplements.

  • Flexible Closure: Compatible with the optional V-Door Insert (sold separately) for temporary or permanent closure.

Proudly Made in the USA. No imported horse stalls—just American craftsmanship you can trust.

Key Features & Benefits:

  • Reduces Equine Boredom: Open V-door design encourages healthy socialization and keeps horses relaxed.

  • Time-Saving Feed Opening: Distribute meals safely from the aisle to significantly cut down on graining time.

  • Adaptable Security: Easily transition to a closed front using the drop-down V-Door Insert (sold separately).

  • Durable Construction: Built with the lasting strength and premium aesthetic of the Oxford stall line.

Length: 10′ or 12′ (Custom sizes available upon request.)

Finish: Powder Coated or Hot-Dip Galvanized (*RAMM is the industry’s premier hot-dip galvanizer for horse stalls.)

Channel Gauge: 14-gauge

Bar Gauge: 16-gauge

Bar Spacing: 3-¼”

Bar Diameter: ⅞”

Bar Height: 33″

Door Width: 51-¼”

Door Opening Width (Standard): 48″

Door Height: 86-¾”

Floor to Top of Header: 93″

Floor to Bottom of Bars: 48-½”

Latch TypeTop Latch

PostPost Bumper

GuideStay Roller

Track8′ Premium Track

Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit so you save with freight.)

Production Time: Please allow 4-6 weeks lead time for this stall system.

Warranty: 1-Year Warranty on Workmanship.

*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 2 x 6” tongue and groove boards as wood supplier measurements can vary. Made in the USA!

Below are links to installation instructions and literature regarding our Oxford welded horse stalls. They are in a PDF format, which you can save and print for future reference:

Oxford Welded Stall Installation Instructions

The Appearance of Hot-Dip Galvanized Coating
