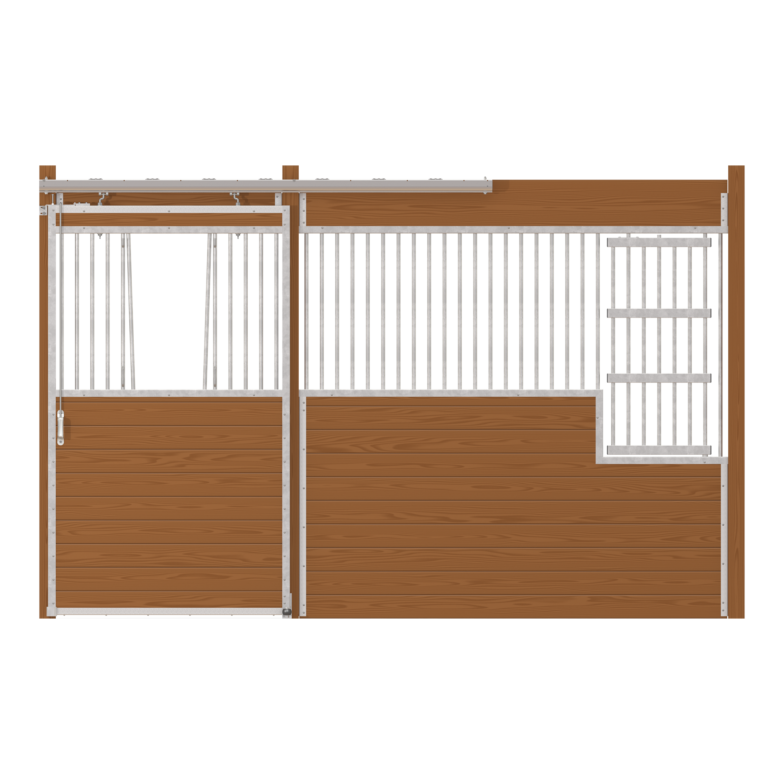

Oxford Stall Front with V-Door & Large Feed Door

SKU: N/A Category:

This Oxford front is further enhanced with a V-Door top. V-Door opening allows for socialization and ventilation. Adding a welded V-door Insert (sold separately) allows the door to be fully grilled when closed. V-Door Insert easily drops down in flush position or can be completely removed. See V-Door Insert HERE. The large feed door in the grillwork section can accommodate our Poly Corner Feeder, which holds hay and grain to feed from your aisle.

[yith_wcwl_add_to_wishlist]

Oxford stall fronts are manufactured to be stronger and last longer than any of the competition. The ease of installation with the fully-welded framework makes this a popular selection among homeowners and contractors alike. When deciding the horse stall system that is best for your horses, safety should be the number one priority. Oxford stalls are built with safety as a priority. We utilize 14-guage steel for strength, 7/8” bars spaced at 3-1/4” on center (leaving only 2-3/8” between the bars), and a fully hidden weld for durability.

Shipping: This item ships via LTL freight carrier; accurate shipping costs cannot be calculated on our ecommerce site. Please contact one of our account managers at 1-800-434-6296 for shipping details.

Length: 10′ or 12′ (Custom sizes available upon request.)

Finish: Powder Coated or Hot-Dip Galvanized

Channel Gauge: 14-gauge

Bar Gauge: 16-gauge

Mesh: 1/4″ mesh steel with 2″ x 2″ square holes

Bar Spacing: 3-¼”

Bar Diameter: ⅞”

Bar Height: 33″

Door Width: 51-¼”

Door Opening Width (Standard): 48″

Door Height: 86-¾”

Floor to Top of Header: 93″

Floor to Bottom of Bars: 48-½”

Latch Type: Top Latch

Post: Post Bumper

Guide: Stay Roller

Track: 8′ Premium Track

Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit so you save with freight.)

Production Time: Please allow 4-6 weeks lead time for this stall system.

Warranty: 1-Year Warranty on Workmanship.

*Note: Lumber is not included to save freight. We recommend tongue and groove wood for all RAMM horse stall systems. Wood count in the installation instructions are estimated and based on 2 x 6” tongue and groove boards as wood supplier measurements can vary. Made in the USA!

Below are links to installation instructions and literature regarding our Oxford welded horse stalls. They are in a PDF format, which you can save and print for future reference:

Oxford Welded Stall Installation Instructions

The Appearance of Hot-Dip Galvanized Coating
