10′ or 12′ Welded Stall Grilled Partitions

SKU: WW*GP Category:

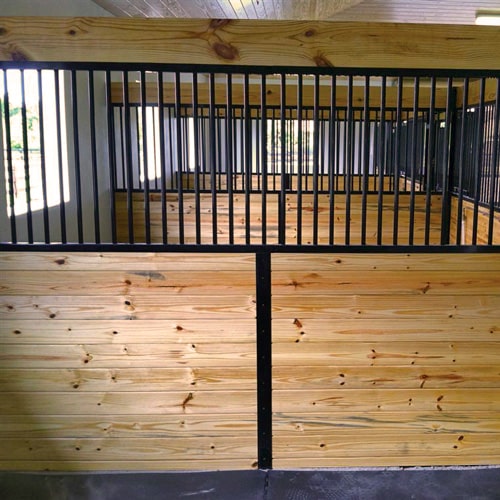

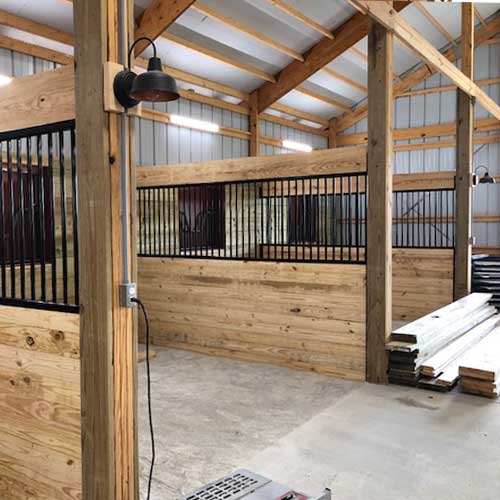

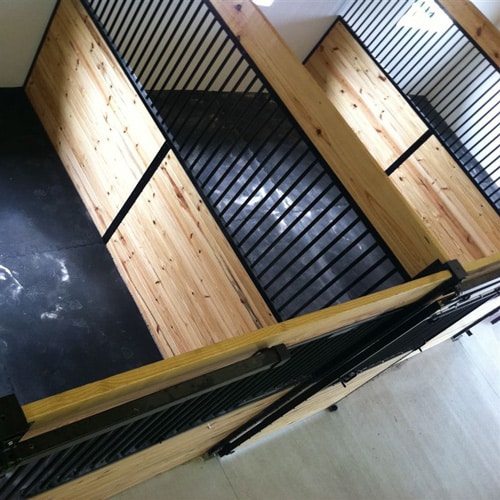

Welded grilled partitions are excellent horse stall dividers. Horses can socialize from stall to stall and fresh air can travel between stalls using grill sections.

Compatibility: Cambridge, Oxford, Shetland, & [Wood Post] Tuscany Stalls

[yith_wcwl_add_to_wishlist]

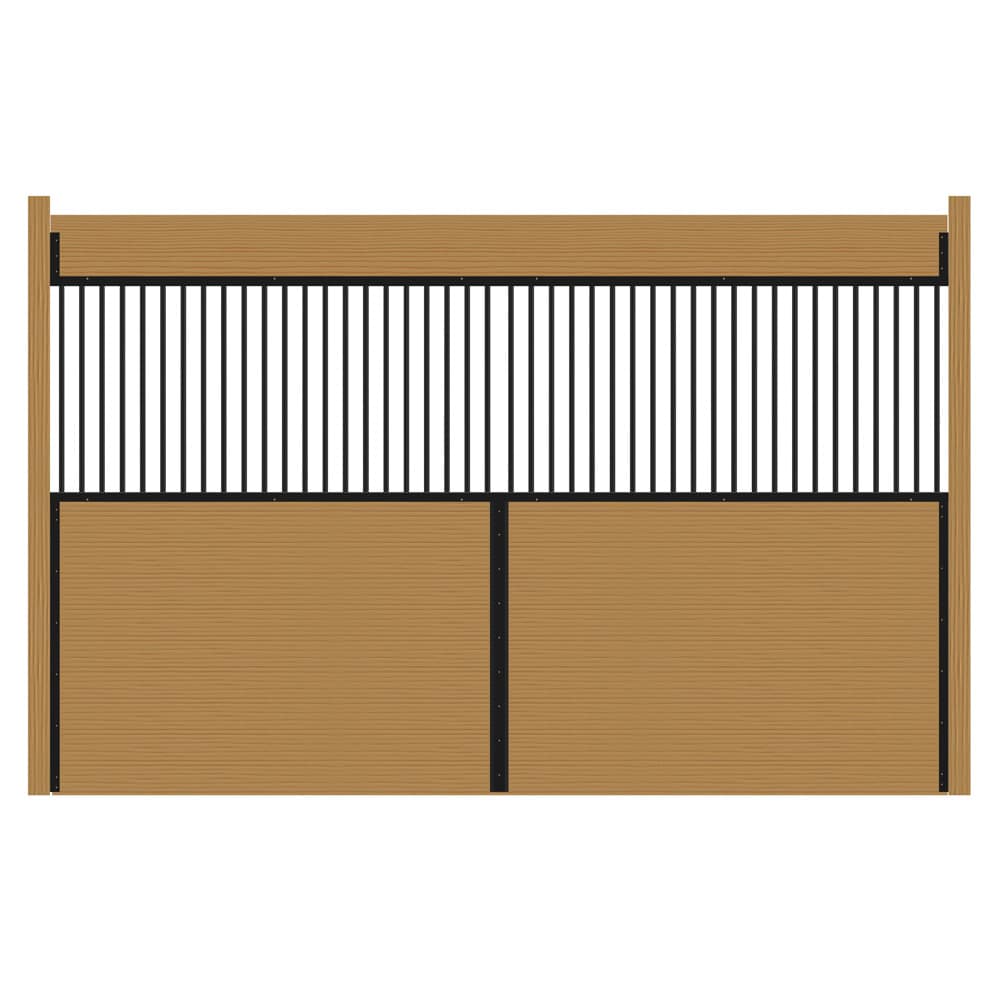

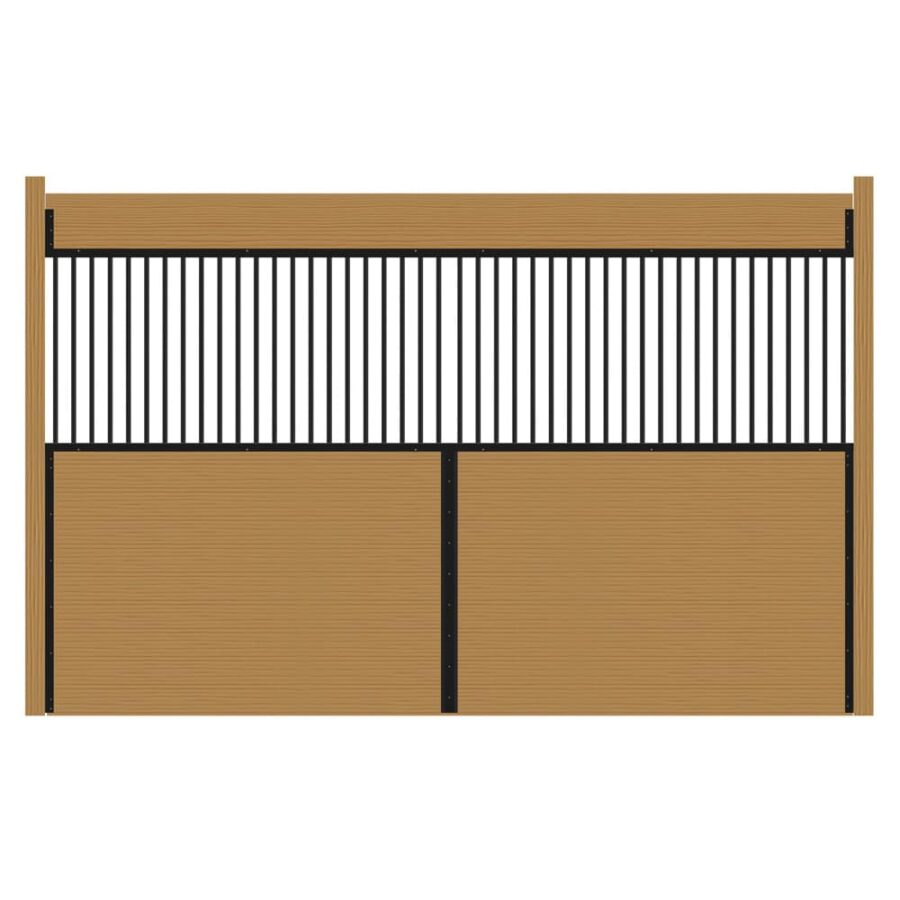

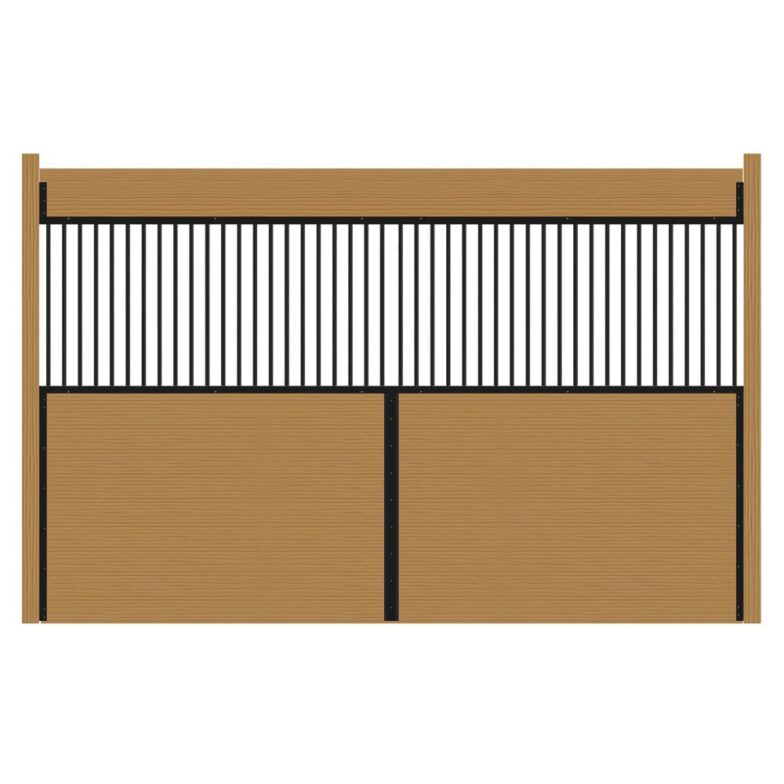

10′ or 12′ Welded Stall Grilled Partition Kit

The 10′ Welded Stall Grilled Partition Kit is a premium solution for dividing horse stalls, ensuring both safety and comfort for your horses. Designed for optimal airflow and socialization, this partition features welded grill sections that allow horses to see and interact with their neighbors while promoting fresh air circulation between stalls.

Key Features:

  • Robust Construction:
    Crafted with a 14-gauge steel frame and 16-gauge bars, this partition offers superior strength and durability. Hidden interior welds provide a clean, professional look and eliminate sharp edges for added safety.

  • Ventilation and Socialization:
    The grillwork design allows for excellent airflow and enables horses to socialize through the divider, supporting a healthy and interactive barn environment.

  • High-Quality Finish:

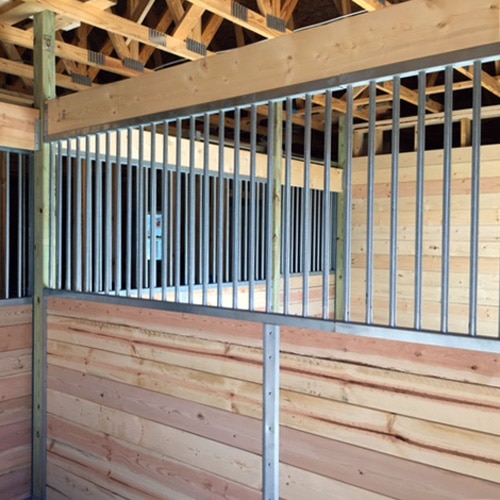

    Available in a powder-coated black finish for a sleek appearance and enhanced corrosion resistance. A hot-dip galvanized option is also available.

  • Customizable and Compatible:
    Designed for use with Cambridge, Oxford, Shetland, and Wood Post Tuscany stalls. Custom sizes are available upon request to fit your specific barn layout.

  • Easy Installation:
    The kit includes all necessary grillwork sections, wall braces, U-channels, and screws for straightforward assembly. Wood lumber is not included and must be supplied separately; tongue and groove wood is recommended for best results.

*Note: Wood lumber is not included; we recommend tongue and groove wood for all of our horse stall systems.

Length: 10′ (*Custom sizes available upon request.)

Finish: Hot-Dip Galvanized or Powder-Coated Black

Channel Gauge: 14-gauge

Bar Gauge: 16-gauge

Bar Spacing: 3¼”

Bar Diameter: ⅞”

Bar Height: 33½”

Floor to Top of Header: 93″

Floor to Bottom of Bars: 48½”

Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit.)

10′ Kit Includes:

Warranty: 1-Year Warranty on Workmanship.

*Note: Must be installed with wood or metal support posts. Wood lumber is not included in the kit.

Made in the USA!
