Welded Stall Privacy Partition Kit
RAMM’s welded privacy partitions are available with 48″, 65″, 72″, & 91″ grillwork sections. The partitions not only provide privacy but allow air to flow through the grillwork.
[yith_wcwl_add_to_wishlist]
Welded Stall Privacy Partition Kit
The Welded Stall Privacy Partition Kit from RAMM delivers the perfect balance of privacy, airflow, and durability for your horse barn. Designed to separate stalls while maintaining a healthy environment, these partitions feature robust construction and flexible configuration options.
Key Features:
-
Privacy with Ventilation:
Each partition includes a welded grillwork section—available in 48″, 65″, 72″, or 91″ lengths—that provides visual separation between stalls while allowing fresh air to circulate freely. This design is also ideal for mounting feeders and waterers, supporting efficient stall management12. -
Heavy-Duty Construction:
Built from a 14-gauge steel frame with 16-gauge bars, the partition is engineered for strength and longevity. Hidden interior welds ensure a smooth, professional finish with no exposed sharp edges12. -
Premium Finishes:
Choose between a hot-dip galvanized finish for maximum rust protection or a sleek powder-coated black finish to match your barn’s style12. -
Customizable Sizing:
Standard grillwork lengths include 48″, 65″, 72″, and 91″, with custom sizes available upon request to fit your specific stall layout12. -
Easy Installation:
Each kit includes all necessary grillwork, U-channels, wall braces, insert channel, and mounting hardware. Wood lumber is not included; tongue and groove wood is recommended for best results. Must be installed with wood or metal support posts
*Note: Wood lumber is not included; we recommend tongue and groove wood for all of our horse stall systems.
Length: 48″, 65″, 72″, and 91″ (Custom sizes available upon request.)
Finish: Hot-Dip Galvanized or Powder-Coated Black
Channel Gauge: 14-gauge
Bar Gauge: 16-gauge
Bar Spacing: 3-1/4″
Bar Diameter: 7/8″
Bar Height: 33-1/2′
Floor to Top of Header: 93″
Floor to Bottom of Bars: 48-1/2″
Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit.)
10′ or 12′ Privacy Partition Kit with 48″ Welded Grillwork Section:
- 1 – 48″ Welded Grillwork Section
- 2 – 94.5″ U-Channels
- 1 – 46.5″ U-Channels
- 2 – 93.5″ Wall Braces

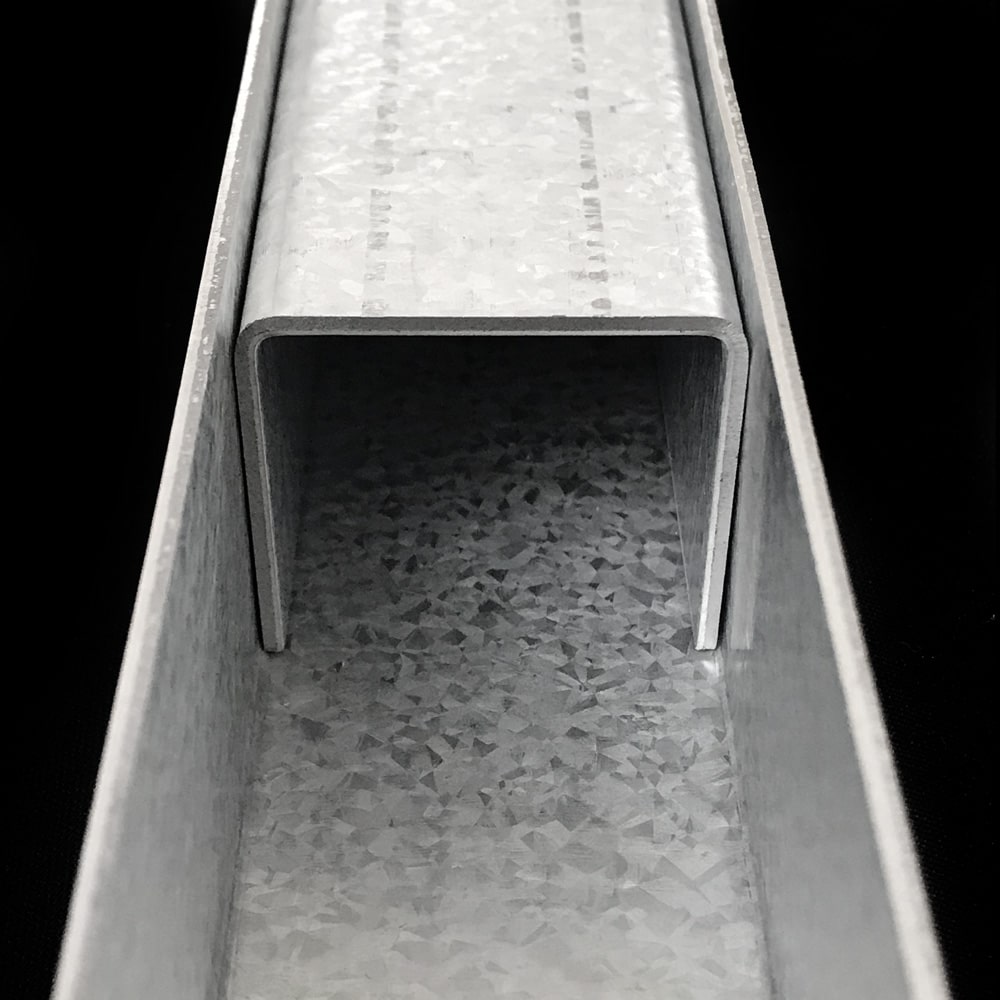

- 1 – 34″ Insert Channel
- 4 – #14 x 1″ Phillips Pan Head Tek Self-Drilling Clip Screws
- 158 – #12 x 1-1/4″ Phillips Pan Head Stall Screws
10′ or 12′ Privacy Partition Kit with 65″ Welded Grillwork Section:
- 1 – 65″ Welded Grillwork Section
- 2 – 94.5″ U-Channels
- 1 – 46.5″ U-Channels
- 2 – 93.5″ Wall Braces
- 1 – 34″ Insert Channel
- 4 – #14 x 1″ Phillips Pan Head Tek Self-Drilling Clip Screws
- 158 – #12 x 1-1/4″ Phillips Pan Head Stall Screws
10′ or 12′ Privacy Partition Kit with 72″ Welded Grillwork Section:
- 1 – 72″ Welded Grillwork Section
- 2, 94.5″ U-Channels
- 1 – 46.5″ U-Channels
- 2 – 93.5″ Wall Braces
- 1 – 34″ Insert Channel
- 4 – #14 x 1″ Phillips Pan Head Tek Self-Drilling Clip Screws
- 158 – #12 x 1-1/4″ Phillips Pan Head Stall Screws
10′ or 12′ Privacy Partition Kit with 91″ Welded Grillwork Section:
- 1 – 91″ Welded Grillwork Section
- 2 – 94.5″ U-Channels
- 1 – 46.5″ U-Channels
- 2 – 46.5″ Wall Braces
- 1 – 34″ Insert Channel
- 4 – #14 x 1″ Phillips Pan Head Tek Self-Drilling Clip Screws
- 158 – #12 x 1-1/4″ Phillips Pan Head Stall Screws
Warranty: 1-Year Warranty on Workmanship.
*Note: Must be installed with wood or metal support posts. Wood lumber is not included in the kit.
Made in the USA!
Below are links to installation instructions and literature regarding our Oxford and Cambridge welded horse stalls. They are in a PDF format, in which you can save and print for future reference:
Oxford Installation Instructions
