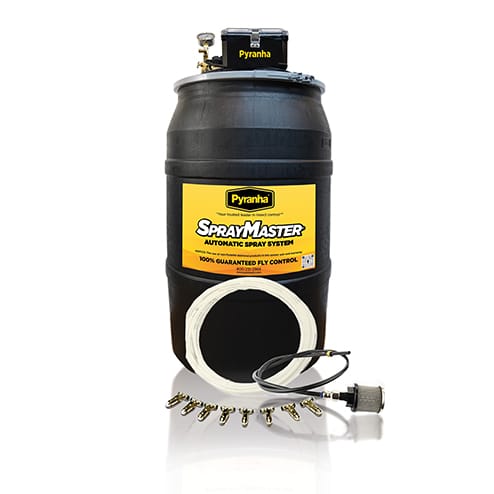

RAMM’s 55-gallon automatic fly & mosquito spray system eliminates flies, mosquitoes, and many other insects in 60 seconds or less! Insects are unable to develop an immunity to this formula and it interrupts the breeding cycle. The insecticides used in this automatic spray system are biodegradable, environmentally safe (meets all requirements by the EPA), and are approved to be used around warm-blooded animals and humans.

This automatic spray system kit has everything you need to protect up to eight horse stalls. For additional coverage, expansion kits are available. They include five tee nozzles, a 100′ roll of nylon tubing, and one 25-pack of 1/4″ tubing loop clamp fasteners and zip ties.

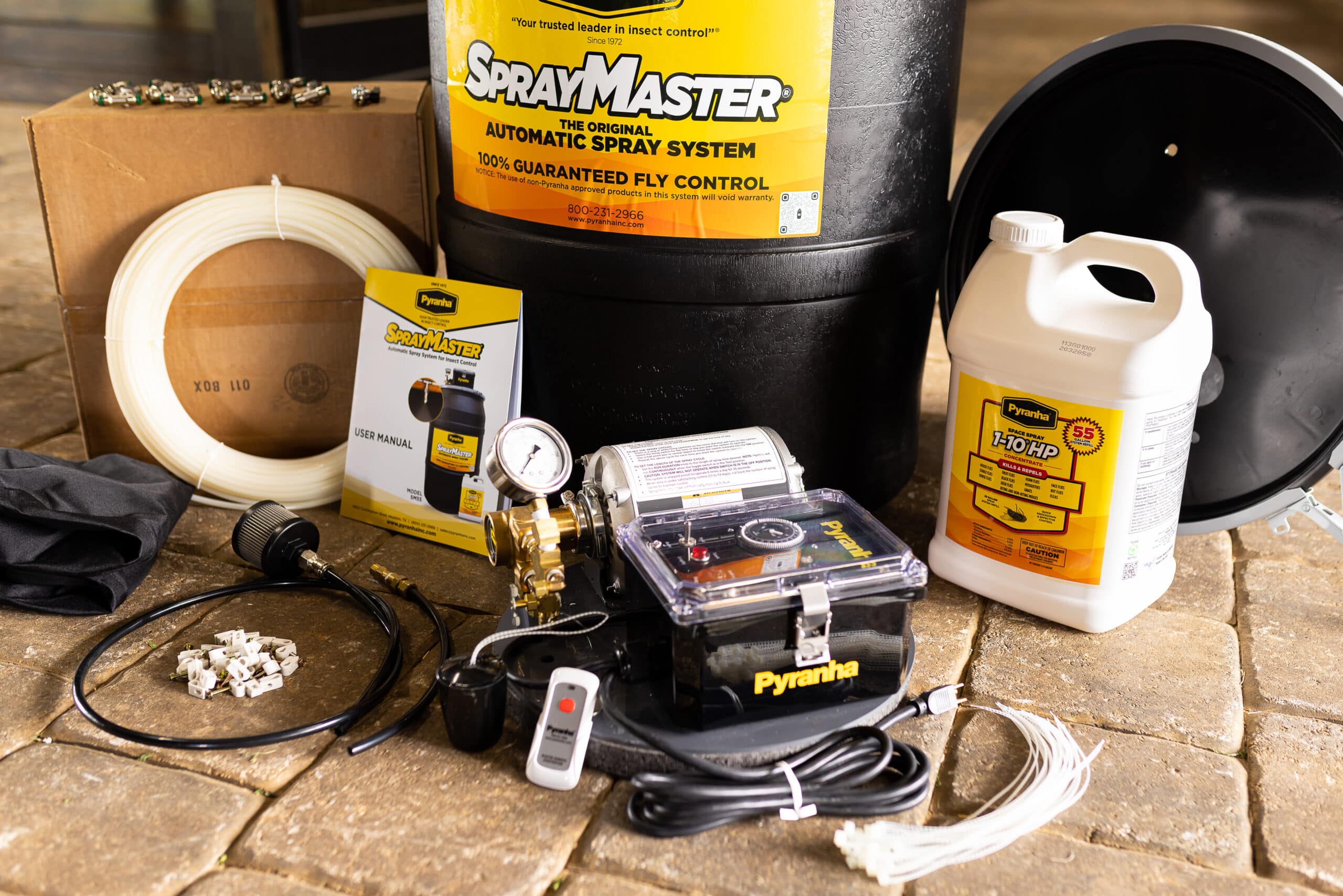

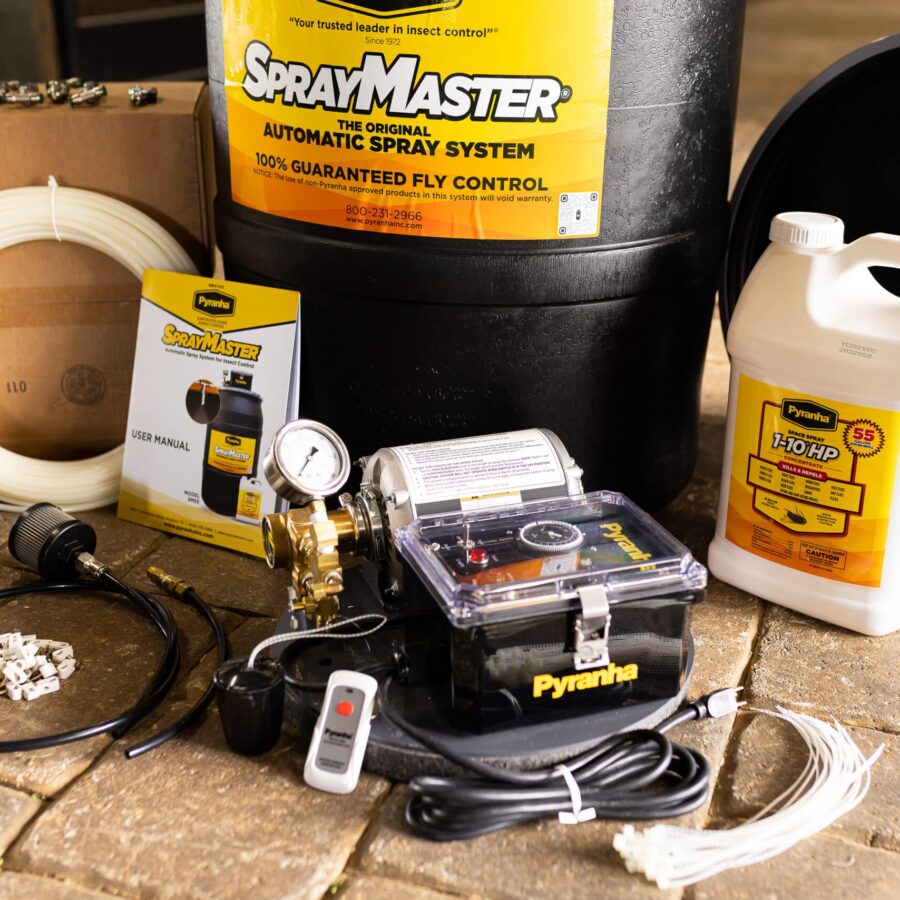

Kit Includes:

55-Gallon Drum
Removable Lid & Locking Ring
Weatherproof 55-Gallon Barrel Cover
Analog Timer
Pressure Gauge
1/2 HP HD Electric Pump Motor

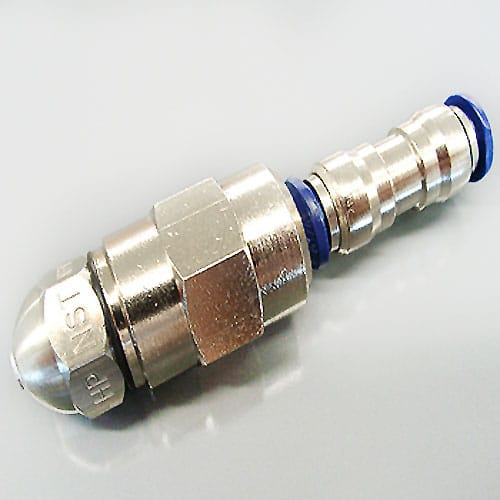

8, Tee Nozzle Assemblies (each nozzle includes 5 nailers and 5 ties)
160′ of Clear Nylon Tubing
Bleed Valve
Check Valve Assembly
Intake Filter & Tubing

Motor: 1/2 HP

Amperage: 16 amps

Voltage: 120V

Grounded Plug/Regular Outlet

Consumption Rate: The following formula figures out how many gallons of diluted insecticide your automatic spray system will consume in one week:

The number of times the system fires in a day is multiplied by the number of days in a week (7) multiplied by the number of spray nozzles on your system divided by 128 oz. gives you the number of gallons of liquid used each week. A 45-second cycle dispenses 1 ounce of insecticide per spray nozzle. The following is for firing for 45 seconds, 5 times a day, at 190 P.S.I. in the 55-gallon drum:

6 Nozzles (1.64 gallons/week) = 33 weeks
8 Nozzles (2.19 gallons/week) = 25 weeks
10 Nozzles (2.73 gallons/week) = 20 weeks
12 Nozzles (3.28 gallons/week) = 16 weeks
14 Nozzles (3.83 gallons/week) = 14 weeks
16 Nozzles (4.38 gallons/week) = 12 weeks
18 Nozzles (4.92 gallons/week) = 11 weeks
20 Nozzles (5.47 gallons/week) = 10 weeks

Once installed, the system is controlled by an automatic timer that’s set to a synchronized spray on a predetermined 24-hour schedule. The pump draws the liquid concentrate from the reservoir and transfers it through the nylon tubing to the spray nozzles, which are placed in strategic locations based on the structure of the facility to create an evenly distributed zone of protection. The area is then covered with small particles of the water-based insecticide, thus killing a large number of the insects and disrupting the reproduction cycle. Please keep in mind… ONE typical female adult fly can lay up to 250-1,250 eggs in a two-week period! As soon as the temperature warms up, flies start reproducing.

Below are links to installation manuals and informational literature for the automatic fly & mosquito spray system. The links below are in a PDF format, so you can save and print for future reference:

Automatic Fly & Mosquito Spray System Installation Instructions

Automatic Fly & Mosquito Spray System Resource Guide

Automatic Fly & Mosquito Spray System Consumption

Installation: Installation is relatively simple and can be completed by yourself. However, if you have questions in regards to designing a layout configuration that works best for you, we have account managers readily available to help. Once the system is installed and programmed, all you need to do is keep the insecticide concentrates refilled in your reservoir. This automatic spray system was designed to be virtually maintenance-free!
