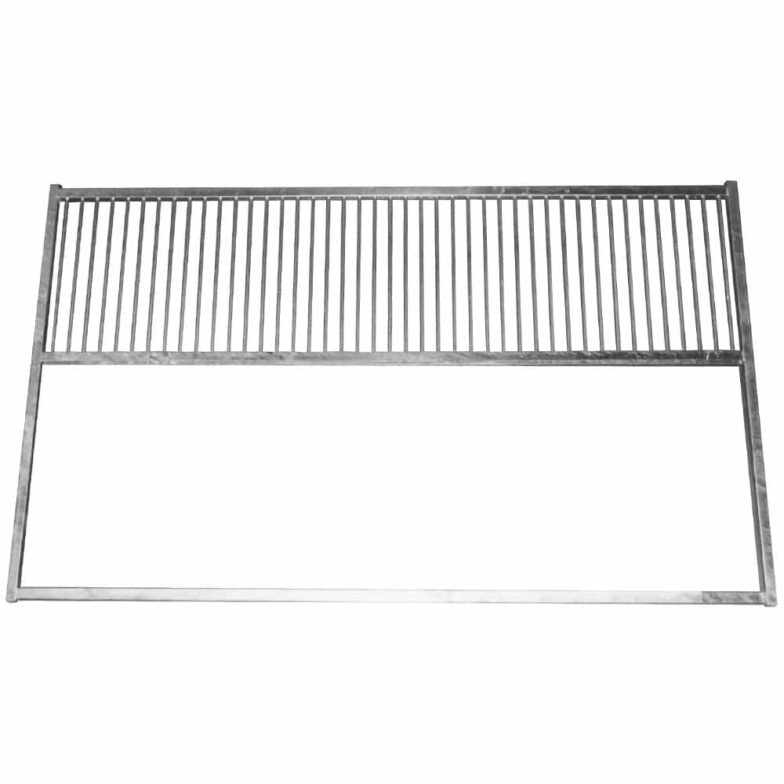

Dublin Stall Grilled Partition

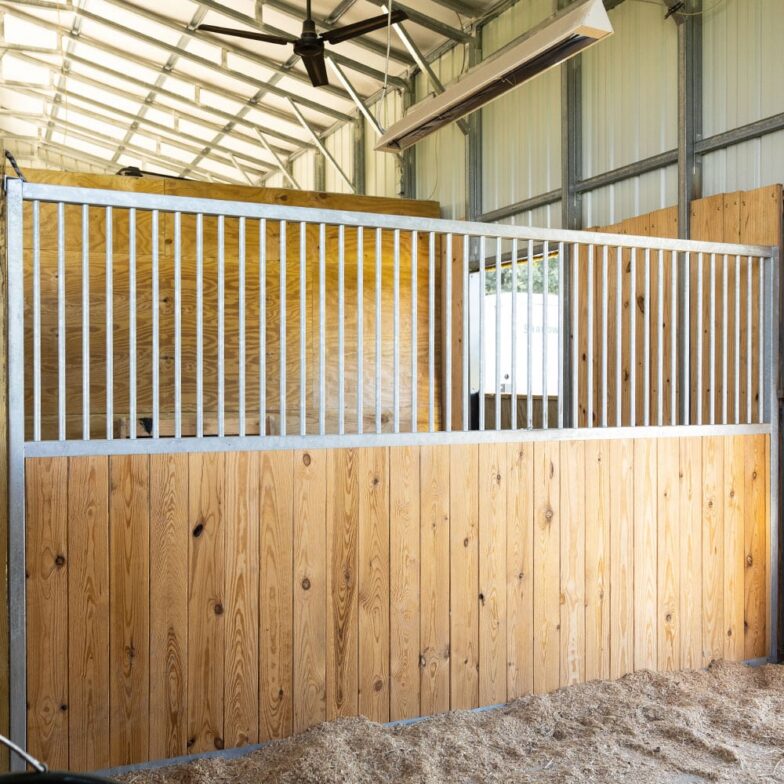

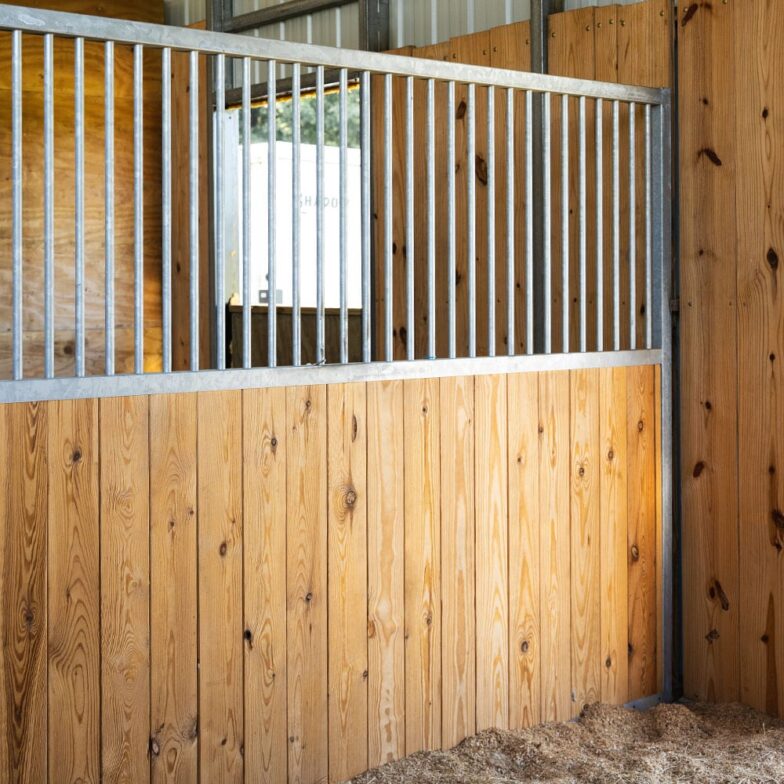

The Dublin stall grilled partitions are great stall dividers that allow ventilation and socialization. Constructed of hot-dip galvanized steel for the best rust protection available.
Compatibility: Dublin Stalls
- Item Description

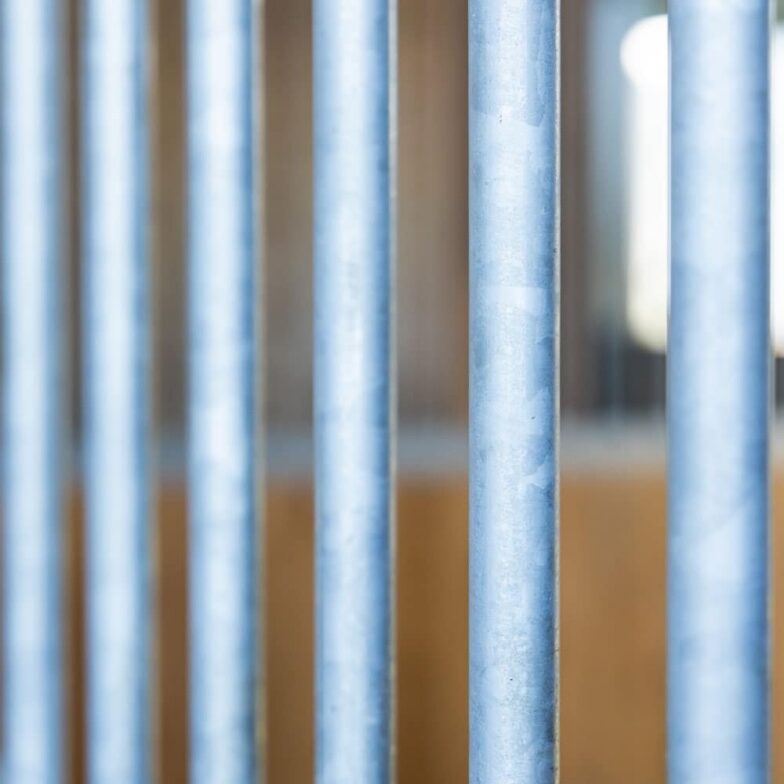

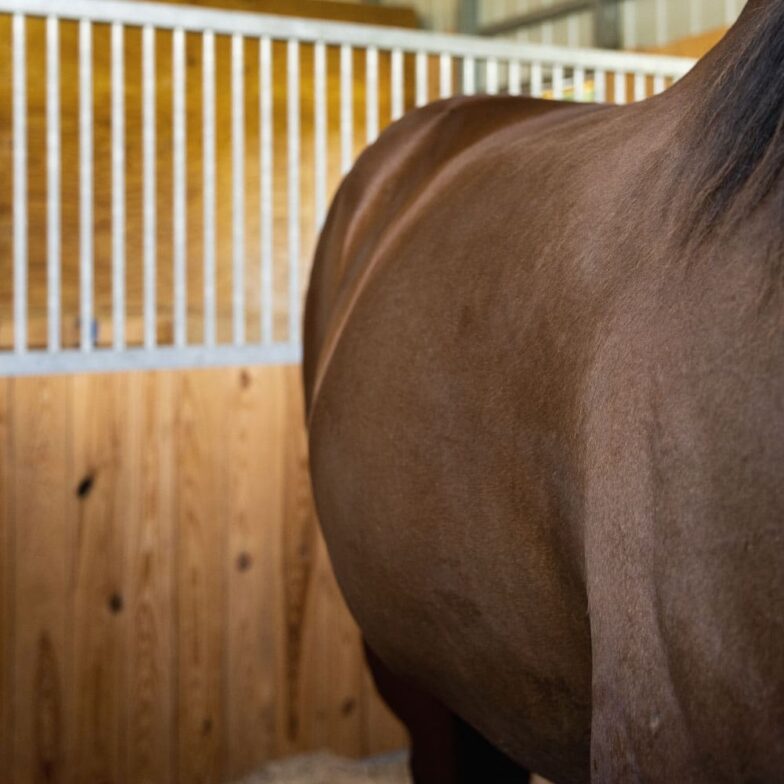

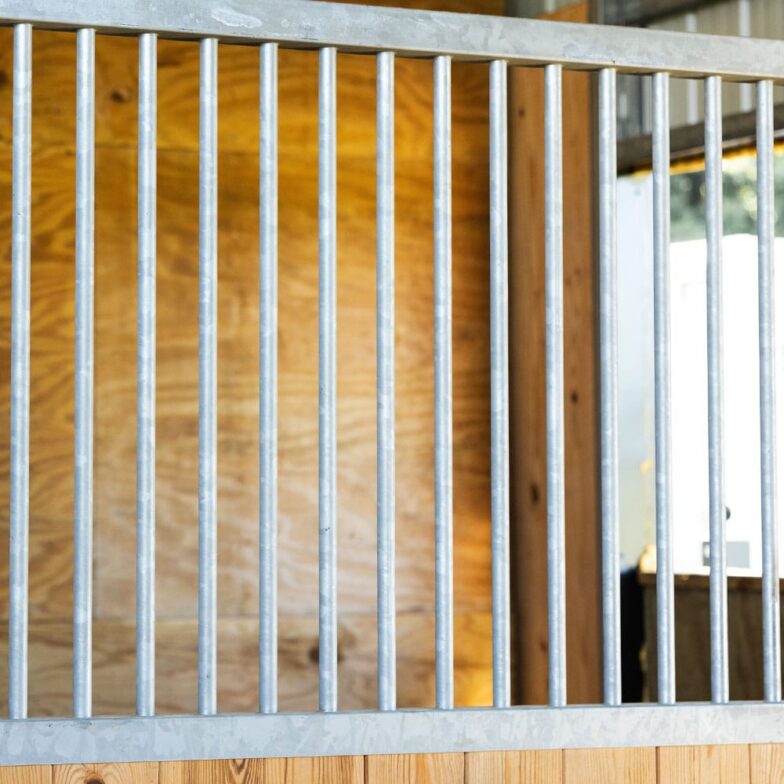

The Dublin stall grilled partition allows fresh air to circulate through the stalls with the added grillwork. The grillwork also allows your horses to socialize with each other! Dublin stalls are constructed of hot-dip galvanized steel (14-gauge frame), feature hidden interior welds, and offer the best type of rust protection available! RAMM is the industry's premier hot-dip galvanizer for horse stalls.
Installation: This is a freestanding horse stall system; no support posts are required for this installation. Connect the stall panels with stall connectors, which are sold separately and can be found here. *Note: Wood lumber is not included; we recommend tongue and groove wood for all of our horse stall systems.
Shipping: This item ships on a semi-truck via an LTL freight carrier. Please contact one of our expert account managers at 800-434-6296 for a shipping quote and pricing. For more information on how this type of delivery works and what we need you to do upon arrival, please read through these two links:
- - We love our new stalls! They are more than I imagined they would be. We went with the Modulars because we want to move them in the future. They are able to move but also very heavy and sound when in use. Thank you! Mary L.-WI- Hi Michelle, I haven't taken pictures yet, but I will. It is a PERFECT match to the other stall. You can't tell which one is the old one and which is new. My brother-in-law was also impressed when me moved the 2 way connectors and installed the 3 way that the 2 way had no corrosion or rust anywhere on them after being exposed to the "horse elements" for over a year. Thanks! Patti
Dublin Stall Front with Large Feed Door
Dublin Stall Front with Feed Door
Dublin Stall Front with Feed Opening
Dublin Stall Front
ThuroBed Mattress System
18" Indoor/Outdoor Basket Fan, Black
Automatic Stall Waterer with 100W Heating Pad, Black & Green
InStall Hay OptiMizer®
Galvanized Wall-Mounted Horse Feeder
Length: 10' or 12' (Custom sizes available upon request.)
Finish: Hot-Dip Galvanized (*RAMM is the industry's premier hot-dip galvanizer for horse stalls.) or Powder-Coated
Bar Gauge: 16-gauge
Channel Gauge: 14-gauge
Frame Gauge: 2" x 2" 14-gauge
Bar Spacing: 3¼"
Bar Diameter: ⅞"
Bar Height: 33"
Center Bar Height: 48¾"
Floor to Top of Header: Top of Front = 84", Top of Front with Track Piece = 85⅜"
Floor to Bottom of Bars: 48⅝"
Compatibility: Dublin Stall Fronts
Wood Direction: Vertical (*Note: Wood lumber is not included in the kit; we recommend tongue and groove wood for all of our horse stall systems. )
Installation: This is a freestanding horse stall system. Support posts are not required for installation, but can be installed with wood or metal support posts. Connect the stall panels with stall connectors, which are sold separately and can be found here.
Shipping: This item ships freight. Please contact one of our expert account managers for a shipping quote.
Warranty: 1-Year Warranty on Workmanship.
Made in the USA!
Below are links to installation instructions and literature regarding Dublin horse stalls. They are in a PDF format, which you can save and print for future reference:
